IP Spherical Dome 4 MPx (4 mm, WL)

Alert night watchman: Natural colour images in absolute darkness thanks to the special lens, sensitive image sensor, ext. WL LEDs. Object detection for precise alarm and quick search of events.

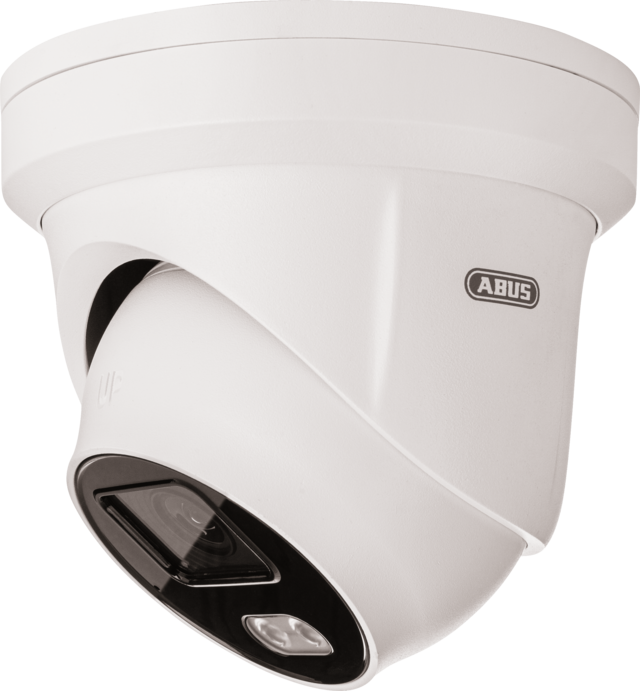

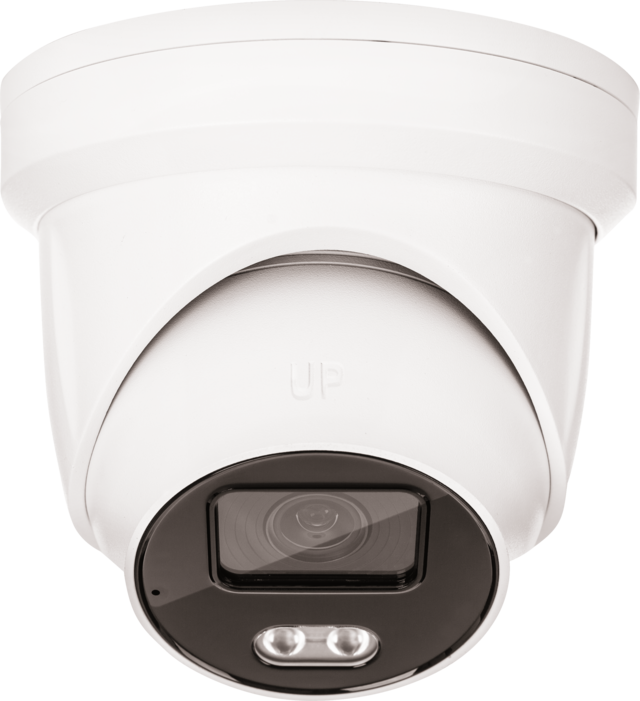

As a full-colour day/night camera, the IP spherical dome delivers the best surveillance images in 4 MPx resolution. The weatherproof IP67 housing is designed for outdoor use. External white light LEDs provide clear images day and night. The camera can be accessed from the mobile app at any time.

Top surveillance in the dark
Clear colour images in total darkness thanks to full-colour day/night technology - rich in detail for solid evidence. The slightest residual light is effectively amplified by the special lens and the extra light-sensitive image sensor, while the white light LEDs provide the sensor with a touch of extra light.

For further distances
The IP dome overlooks a horiz. field of view of 95° or 108° (variant B or A).

Autom. Object recognition
The security camera distinguishes relevant movements (people, vehicles) from interferences (branches, light, etc.) - and minimises unnecessary motion alarms.

Recording and compatibility
Recording is done on ABUS recorders, VMS/software or local microSD card. The camera is compatible with ABUS Secvest, Secoris and wAppLoxx Pro.

Easy installation
The camera is mounted on the ceiling or wall (wall bracket/ insta. box available). The free 'ABUS IP Installer' software is available for integration into the network.

Notes: Without power supply unit, because PoE.
The effective LED range varies depending on the location.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 4 MPx resolution (2,688 x 1,520 @ 25 fps) for crisp surveillance images
  • 4 mm fixed-focus lens for further distances (95° angle of view)
  • Detailed, highly usable colour images in the dark thanks to full-colour day/night technology; effectively amplifies even minimal ambient light using a special lens and very light-sensitive image sensor
  • Discreet illumination of the field of view with white-light LEDs (up to 30 m range) for accurate colour images in total darkness (e.g. indoors); touch of illumination for the light-sensitive image sensor (barely visible to the human eye)
  • Object recognition (human & vehicle): Video content analysis with fully automatic differentiation between people/vehicles and interferences (branches, light, etc.)
  • Optional output of 3 video streams in ideal resolution for, e.g., live image, recording, mobile access, etc.
  • Robust, weatherproof housing (IP67) with external WL-LEDs for clear image results without disturbing reflections in the glass dome
  • Supports H.264, H.265, MJPEG (incl. Dynamic GOP)
  • microSD card slot for internal data storage, encrypted for high data security (optional)
  • 12 V DC & PoE (802.3af)


We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Additional functions: White light range up to 30 m
Alarming: E-Mail, NAS, FTP
Aperture at minimum illumination (colour): F1.0
Audio: Integrated: Microphone
Backlight compensation: WDR, BLC, HLC
Camera type: Dome
Compatible with: ABUS NVR/DVR, ABUS Link Station App, Synology Surveillance Station 6.0.1+
Compatible with ABUS Link Station: Yes
Compatible with Comfion: Yes
Compatible with Secoris: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC
DC voltage supply: 12 (+/-25 %) V
Design: Dome
Digital zoom: Yes
Dimensions: (LxBxH) 139x139x128 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS, TLS 1.1/1.2
Focal length: 4 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Functions: Scene Change Detection, Region of Interest
Gross weight: 0,7 kg
Height: 128 mm
Horizontal viewing angle: 95 °
Housing material: Metal
IP protection class: 67
Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart-Event mode)
Image integration: Yes
Image sensor: 1/1.8" Progressive Scan CMOS
Installation type: Ceiling, Wall
LAN network access: RJ45 10M/100M self-adaptive
Language of instructions: DE, UK, FR, NL, DK
Length: 139 mm
Lens: Fix
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 2688 x 1520 @ 30 fps
Microphone: Yes
Min. operating temperature: -25 °C
Minimum illumination (colour): 0,0005 lx
Motion detection: 8 zones
Net weight: 1 kg
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, IGMP, Bonjour, PPPoE, SNMP
Noise reduction: 3D DNR
Number of streams: 3
Number of users: 32
OSD language: DE, UK, FR, NL, DK, IT
Other functions: Object Classification Person/Vehicle
Pixels (effective): 2688(H) x 1520(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 600 mA
Private zones: 4
Resolution: 4 MP
Resolution modes: Stream 1: 2688 x 1520 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1920 x 1080 @ 10 fps
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: IE11, Mozilla Firefox, Google Chrome, MS Edge
Technology: IP
Vertical viewing angle: 49 °
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection, Region Entrance, Region Exit
Video compression: Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265
Video network bandwidth: 32 kBit/s - 8 MBit/s
Video system: IP
White balance: AWB, Manual
White-light LEDs: 2
White-light range (up to): 30 m
Width: 139 mm
