IP Tube 4 MPx Black (2.8 mm, WL) IP Tube 4 MPx Black (2.8 mm, WL)

IP Tube 4 MPx Black (2.8 mm, WL)

Wide-awake night watchman: natural colour images in absolute darkness thanks to special lens, sensitive image sensor, white-light LEDs. Object detection for precise alarm and quick event search.


As a full-colour day/night surveillance camera, the IP tube camera delivers video streams in 4 MPx resolution at max. 25 frames/sec. Thanks to the weatherproof IP67 housing and WL-LEDs, the camera performs outdoors during the day and especially at night. Mobile access to the camera at any time via ABUS Link Station app.

Strong in the dark
Clear colour images in total darkness thanks to full-colour day/night technology – rich in detail for solid evidence. The slightest residual light is effectively amplified by the special lens and the extra light-sensitive image sensor. The white-light LEDs provide discreet extra light for the sensor.

Automatic object detection
The security camera precisely distinguishes relevant movements (people, vehicles) from disturbing influences (branches, light, etc.) and minimises the number of unnecessary movement alarms.

Recording and compatibility
Recording takes place on ABUS NVR, video management software or local microSD card. The LAN camera is compatible with ABUS Secvest, Secoris and wAppLoxx Pro.

Convenient start-up

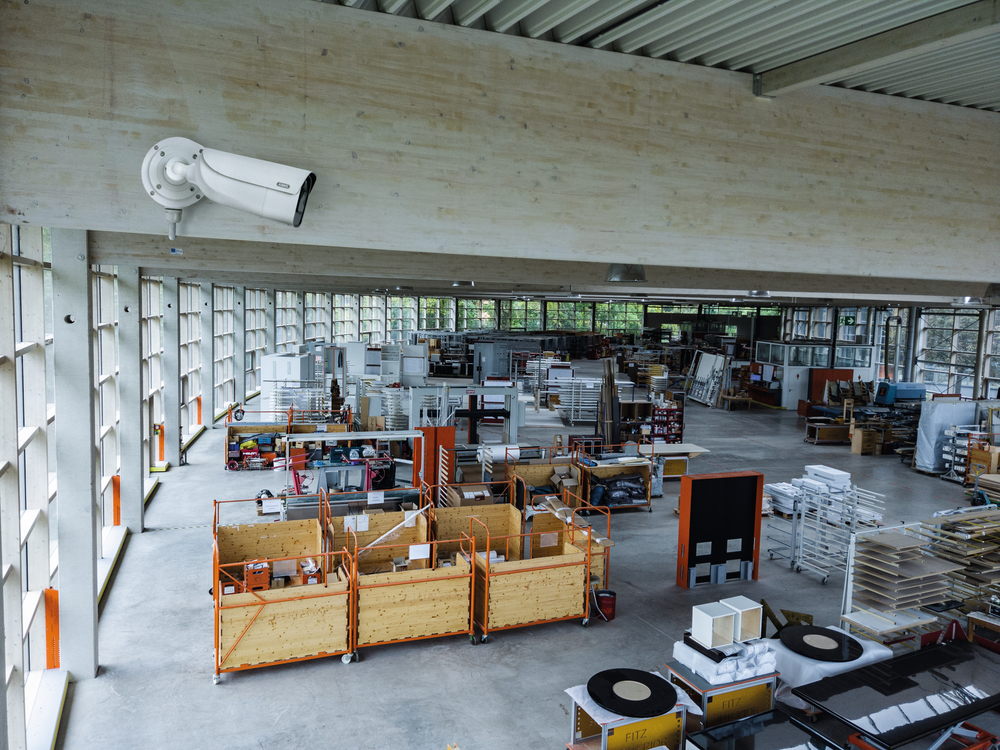

The IP tube camera is mounted on a ceiling or wall. Protected wiring is achieved by means of an installation box (TVAC32600). The free “ABUS IP Installer” software finds the camera directly in the network – for time-saving start-up.

Note: Without power supply unit, plug-in power supply unit or PoE switch available as accessories.

The effective LED range varies depending on the location.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 4 MPx resolution (2,688 x 1,520 @ 25 fps) for crisp surveillance images
  • 2.8 mm fixed lens for a good overview (108° viewing angle)
  • Detailed, highly usable colour images in the dark thanks to full-colour day/night technology; effectively amplifies even minimal ambient light using a special lens and highly light-sensitive image sensor
  • Discreet illumination of the field of view with white-light LEDs (up to 50 m range) for accurate colour images in total darkness (e.g. indoors); finely metered lighting for the light-sensitive image sensor (barely visible to the human eye)
  • Object recognition (human & vehicle): Video content analysis with fully automatic differentiation between people/vehicles and disturbances (branches, light, etc.)
  • Intelligent video analysis with automatic detection of scenes (smart events) for precise motion alarms, recording and process optimisation; output of 3 video streams in ideal resolution for e.g. live image, recording, mobile access, etc.
  • Robust, weatherproof housing (IP67); colour: black
  • Supports H.264, H.265, MJPEG (incl. Dynamic GOP)
  • microSD card slot for internal data storage, encrypted for high data security (optional)
  • 12 V DC & PoE (802.3af)


Installation software:

Auxiliary programs:



We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Alarming: E-Mail, App Push, FTP, CMS
Aperture at minimum illumination (colour): F1.0
Backlight compensation: WDR, BLC, HLC
Camera type: Tube
Colour: Black
Compatible with ABUS Link Station: Yes
Compatible with Comfion: Yes
Compatible with Secoris: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC
DC voltage supply: 12 (+/-25 %) V
Design: Tube
Digital zoom: Yes
Dimensions: (LxWxH) 282x105x105 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS, TLS 1.1/1.2
Focal length: 2,8 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Functions: Scene Change Detection, Region of Interest
Gross weight: 1,2 kg
Height: 105 mm
Housing material: Metal
IP protection class: 67
Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart-Event mode)
Image integration: Yes
Image sensor: 1/1.8" Progressive Scan CMOS
Installation type: Ceiling, Wall
LAN network access: RJ45 10M/100M self-adaptive
Language of instructions: DE, UK, FR, NL, DK, IT
Length: 282 mm
Lens: Fix
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 2688 x 1520 @ 30 fps
Microphone: No
Min. operating temperature: -25 °C
Minimum illumination (colour): 0,0005 lx
Motion detection: 8 zones
Net weight: 1 kg
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, IGMP, Bonjour, PPPoE, SNMP
Noise reduction: 3D DNR
Number of streams: 3
Number of users: 32
OSD language: DE, UK, FR, NL, DK, IT
Other functions: Object Classification Person/Vehicle
Pixels (effective): 2688(H) x 1520(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 600 mA
Private zones: 4
Resolution: 4 MP
Resolution modes: Stream 1: 2688 x 1520 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1920 x 1080 @ 10 fps (only in surveillance mode)
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: MS Edge, IE11, Mozilla Firefox, Google Chrome
Technology: IP
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection, Region Entrance, Region Exit
Video compression: Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265 (only in surveillance mode)
Video network bandwidth: 32 kBit/s - 8 MBit/s
White balance: AWB, Manual
White-light LEDs: 2
White-light range (up to): 50 m
Width: 105 mm
