    Wall Mount
    Wall Mount

    Long Wall Mount for PTZ Dome Cameras

    Description

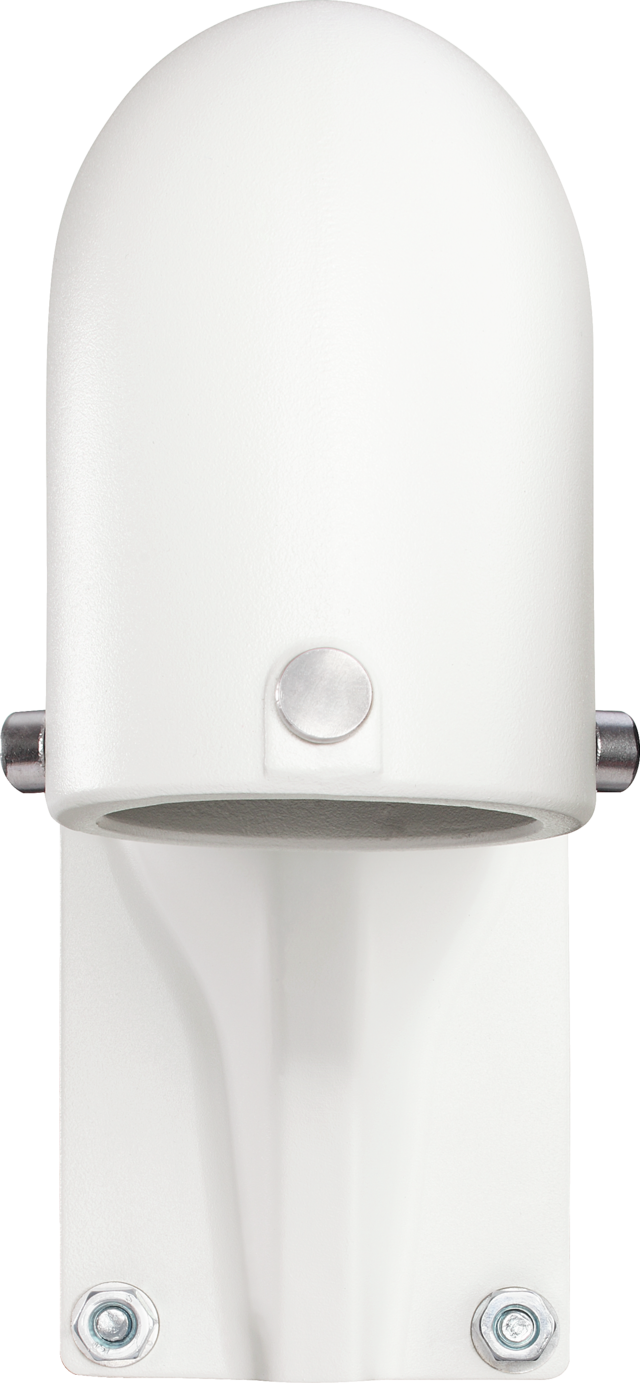

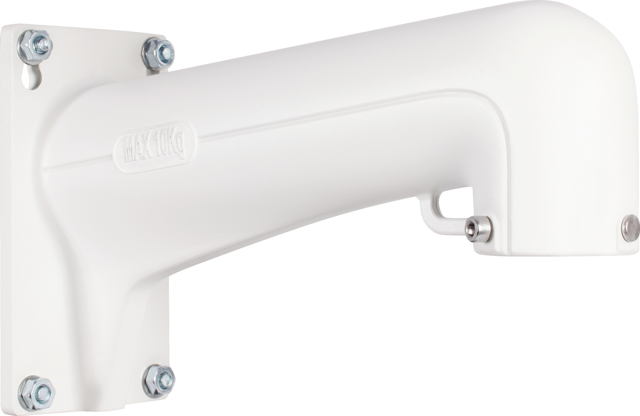

    The wall bracket is an accessory for ABUS PTZ dome cameras and is used for secure, stable mounting of the dome cameras on the wall. The 310 mm wall bracket is available as a set with a pole mount (TVAC31221) and corner mount (TVAC31231) for mounting on poles and in inaccessible corners. The wall bracket is included free of charge with both items and does not need to be purchased separately in this case.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Compatible with IPCS84551, HDCC82501
    • Easy installation of ABUS PTZ dome cameras
    • Length of the bracket (projection): 310 mm
    • For mounting on walls

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Ceiling Mount Frame
    Ceiling Mount Frame
    Specifications
    Colour: white
    Depth: 310 mm
    Dimensions: (W x H x D) 97 x 182 x 310 mm
    Height: 182 mm
    Housing material: Aluminium
    Length: 310 mm
    Net weight: 0.74 kg
    PSTI conformity needed: No
    Product group: Accessories
    width: 97 mm
    Required accessories
