SHIELD™ 5650 Key

SHIELD™ 5650 R black

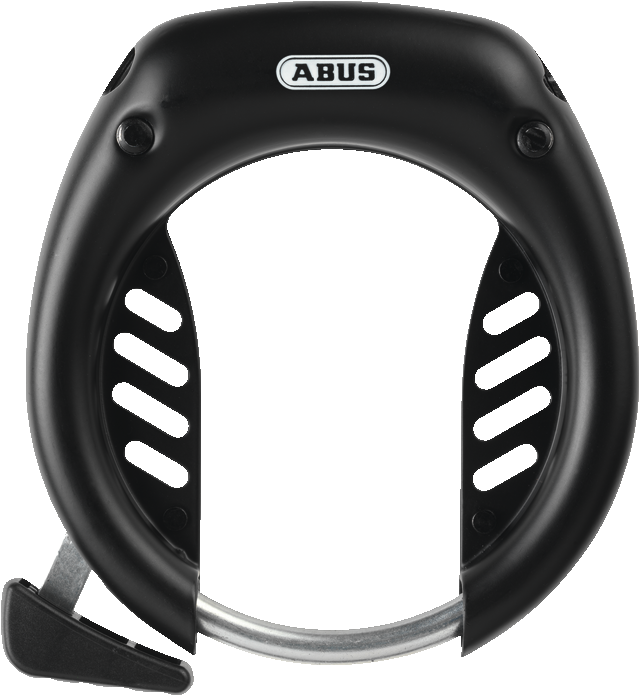

The SHIELD™ 5650 Frame Lock from ABUS offers good theft protection and has been awarded test seals from various countries.

All variants for SHIELD™ 5650
Colours for SHIELD™ 5650
Description
Rely on the tested quality of ABUS. Various countries have given it their test seals.
Benefit from the ABUS materials tested for various attacks and secure your quality bicycle, even with a medium risk of theft. The SHIELD™ 5650 Frame Lock from ABUS is exactly for this purpose. Specially hardened steel used in manufacturing the 8.5 mm shackle, the enclosure and structural parts of the locking mechanism create the appropriate conditions for reliable theft prevention. The ABUS SHIELD™ 5650 Frame Lock has test seals from the Netherlands, Norway, Finland and Sweden.
Awards & Partners
Test seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden (SBSC)
SBSC INTYGAD
Test seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden (SBSC)

Test seal of the Vahinkovakuutusyhtiöiden Hyväksymä – Helsinki, Finland
VAT Pyramide
Test seal of the Vahinkovakuutusyhtiöiden Hyväksymä – Helsinki, Finland

Test Seal of the Norges Forsikringsforbund – Oslo, Norway
FG Logo
Test Seal of the Norges Forsikringsforbund – Oslo, Norway

Test seal of the ART foundation in the Netherlands (4184)
ART 4184
Test seal of the ART foundation in the Netherlands (4184)

only for R-versions
Test seal Varefakta – Copenhagen, Danmark
Varefakta
Test seal Varefakta – Copenhagen, Danmark

Awards & Partners

Technologies

  • 8.5 mm thick locking shackle
  • The shackle, the case as well as supporting elements of the locking mechanism are made of specially hardened steel
  • Accessories can easily be fitted to the locking mechanism on the lock housing
  • The R (key retaining) version holds the key when the lock is open, the NR (non key retaining) version allows taking the key out of the cylinder

Mounting and transportation

  • LH - The LH adapter fixing strap can be used as an alternative mounting option if there are no holes in the rear section.

Operation and use

  • Good protection at medium theft risk
  • Recommended for securing good bicycles

Tips

  • Frame locks are a convenient protection against unauthorized use of the bicycle
  • The 4960, 5850, 5650 Cable and Chain connection options significantly increase security
  • The use of a second lock is also particularly recommended

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
alarm function: No
color of facets: black
Width: 59 mm
diameter: 8,5 mm

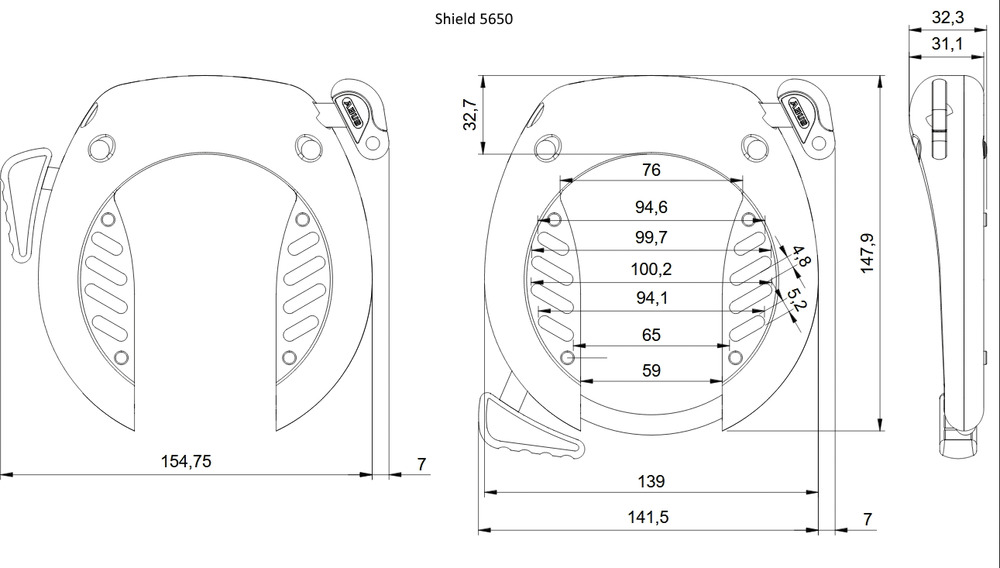

Design: Technical drawing - SHIELD™ 5650
Technical drawing - SHIELD™ 5650
Locking type: key
design color: black
Height: 109 mm
Weight: 590 g
