SHIELD™ 5650L

The SHIELD™ 5650L Frame Lock from ABUS is particularly suitable for bicycles with balloon tyres. With extra large wheel clearance.

All variants for SHIELD™ 5650L
Colours for SHIELD™ 5650L
Description
ABUS has an answer to every bicycle trend. This Frame Lock protects your bike with extra wide tyres.
The Frame Lock SHIELD™ 5650L is the enlarged standard version of the Frame Lock SHIELD™ 5650 from ABUS. With the special version, the bicycle lock is suitable for bicycles with extra wide tyres. With an inside width of 78 mm, the lock has an extra large wheel passage and can therefore also be mounted on wheels with so-called balloon tyres. Mounting is simple and is done by attaching the lock to the rear mounts.
Awards & Partners
Test Seal of the Norges Forsikringsforbund – Oslo, Norway
FG Logo
Test Seal of the Norges Forsikringsforbund – Oslo, Norway

Test seal of the Vahinkovakuutusyhtiöiden Hyväksymä – Helsinki, Finland
VAT Pyramide
Test seal of the Vahinkovakuutusyhtiöiden Hyväksymä – Helsinki, Finland

Test seal of the ART foundation in the Netherlands (4184)
ART 4184
Test seal of the ART foundation in the Netherlands (4184)

only for R-versions
Test seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden (SBSC)
SBSC INTYGAD
Test seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden (SBSC)

Test seal Varefakta – Copenhagen, Danmark
Varefakta
Test seal Varefakta – Copenhagen, Danmark

Awards & Partners

Technologies

  • 8.5 mm thick locking shackle
  • The shackle, the case as well as supporting elements of the locking mechanism are made of specially hardened steel
  • Accessories can easily be fitted to the locking mechanism on the lock housing
  • Extra large wheel travel (enlarged to standard version 5650)
  • The R (key retaining) version holds the key when the lock is open, the NR (non key retaining) version allows taking the key out of the cylinder

Mounting and transportation

  • LH - The LH adapter fixing strap can be used as an alternative mounting option if there are no holes in the rear section.

Operation and use

  • Good protection at medium theft risk
  • Recommended for securing good bicycles
  • Specially optimised frame lock for use with balloon tyres

Tips

  • Frame locks are a convenient protection against unauthorized use of the bicycle
  • The 4960, 5850, 5650 Cable and Chain connection options significantly increase security
  • The use of a second lock besides the frame lock is highly recommended

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
alarm function: No
color of facets: black
Width: 78 mm
diameter: 8,5 mm

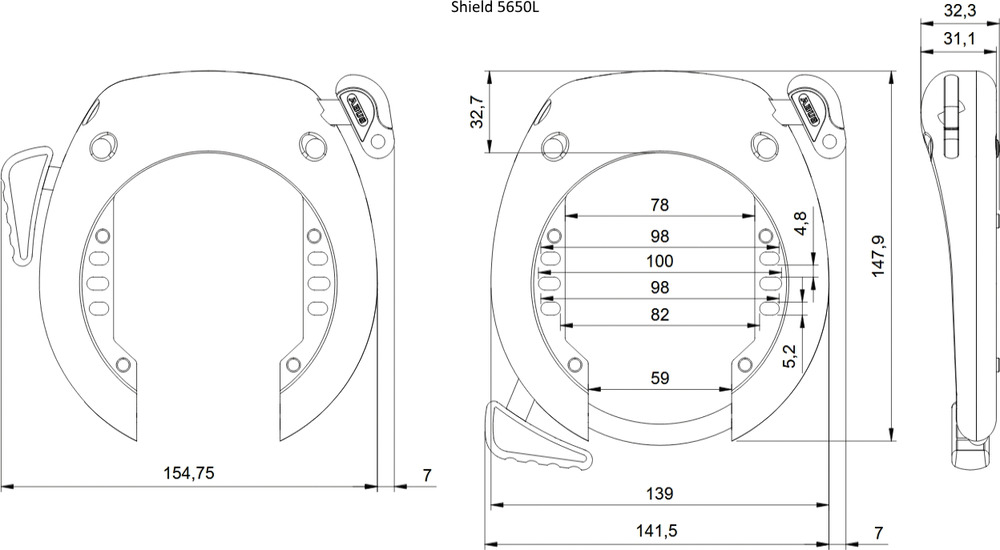

Design: Technical drawing - SHIELD™ 5650L
Technical drawing - SHIELD™ 5650L
Locking type: key
design color: black
Height: 109 mm
Weight: 580 g
