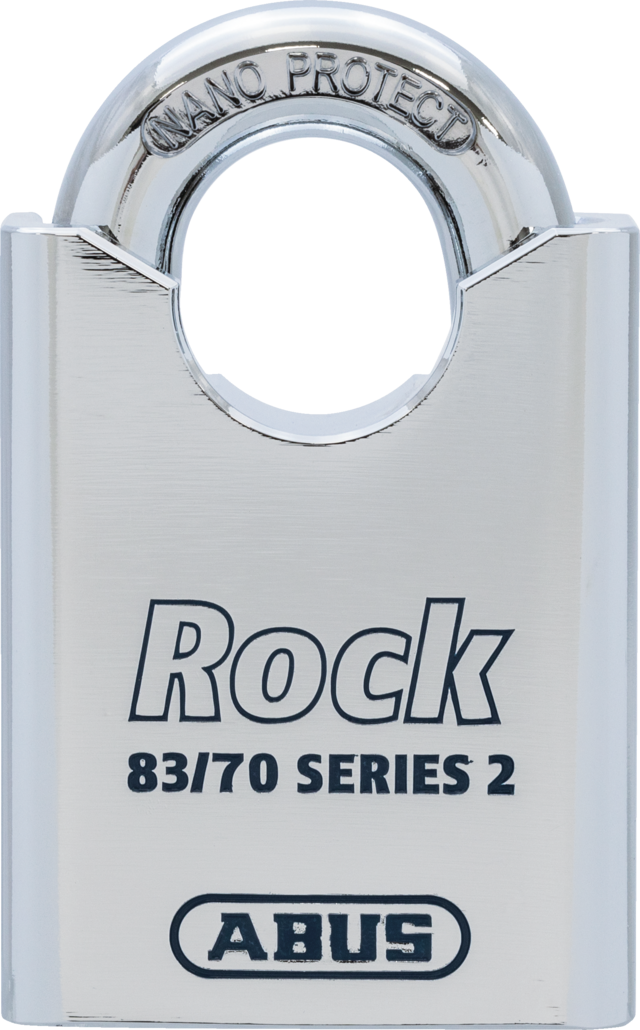

Padlock 83CS/70

Rock 83CS/70 O

This enormously robust padlock with shackle guard and interchangeable cylinder offers extremely high protection. The lock body of the Rock 83CS/70 O accepts oval cylinders commonly used in Scandinavia.

  • Security Level 10/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
All variants for Rock 83CS/70 O
Description
With the Rock padlock 83CS/70 O you can rely on the highest security: the 70-millimetre wide lock body and the shackle are made of specially hardened steel. The shackle guard also makes it difficult to break open the lock with bolt cutters or other tools.That is why this padlock with additional protection against drilling and pulling is used wherever valuable goods need to be secured, for example, in warehouses or containers, or where tools or important machines need to be protected from unauthorised access, for example, on factory premises.
Massive security does not exclude flexibility: you can conveniently integrate the lock into an existing locking system by having a specialist dealer adapt it to existing bittings. This is because the Rock 83CS/70 O is designed to accept standard Scandinavian oval cylinders.
For even more flexibility, you can also choose between two options: should the shackle be fixed in the lock or fully removable? A removable shackle is ideal if you want to secure hard-to-reach areas and do not have much room to manoeuvre. This is because after you have opened the lock, you can simply pull the shackle upwards. The Rock 83CS/70 O achieves security class 6 of 6 according to the European padlock standard EN12320.
Awards & Partners
CEN: Logo of the European norm for padlocks EN-12323 (class 6)
DIN EN 12320 KL 6
CEN: Logo of the European norm for padlocks EN-12323 (class 6)

Test seal of the Svensk Brand- och Säkerhetscertifiering AB (class 5) – Stockholm, Sweden (SBSC)
SBSC Klasse 5
Test seal of the Svensk Brand- och Säkerhetscertifiering AB (class 5) – Stockholm, Sweden (SBSC)

Awards & Partners

Technologies

  • Lock body and shackle made of hardened special steel
  • Hardened special steel shackle with NANO PROTECT™ coating for very high corrosion protection
  • Double bolted locking mechanism increases the security of the lock
  • Key retaining: locking only with key (when open, the key cannot be removed)
  • Rekeyable: the cylinder can be exchanged and thus also adapted to existing bittings
  • Closed Shackle (CS): shackle guard makes access using forcing tools such as bolt cutters difficult
  • SSF014 Class 5 / EN12320 Class 6
  • Protected against drilling or pulling
  • Version “O”: lock body accepts commercially available oval cylinders

Operation and use

  • Protection of items of high value and with a very high risk of theft
  • Suitable, among other things, for securing industrial or company gates, warehouses, trailers, containers and garages
  • Flexible: can be adapted to different requirements in a short time thanks to its interchangeable cylinder

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Locking type: key
Security card: No
Width a: 70 mm
Vertical clearance c: 32 mm
Depth e: 29 mm
Weight: 1070 g
Security Level Home Security: 10
Design: Technical drawing
Technical drawing
type of cylinder: without cylinder
colour: silver
Horizontal clearance b: 28,5 mm
Shackle diameter d: 15 mm
Height f: 112 mm
Keyed alike: Yes
