Alert night watchman: Natural colour images in absolute darkness thanks to special lens, sensitive image sensor, white light LEDs. Object detection for precise alarm and quick search of events.

Description

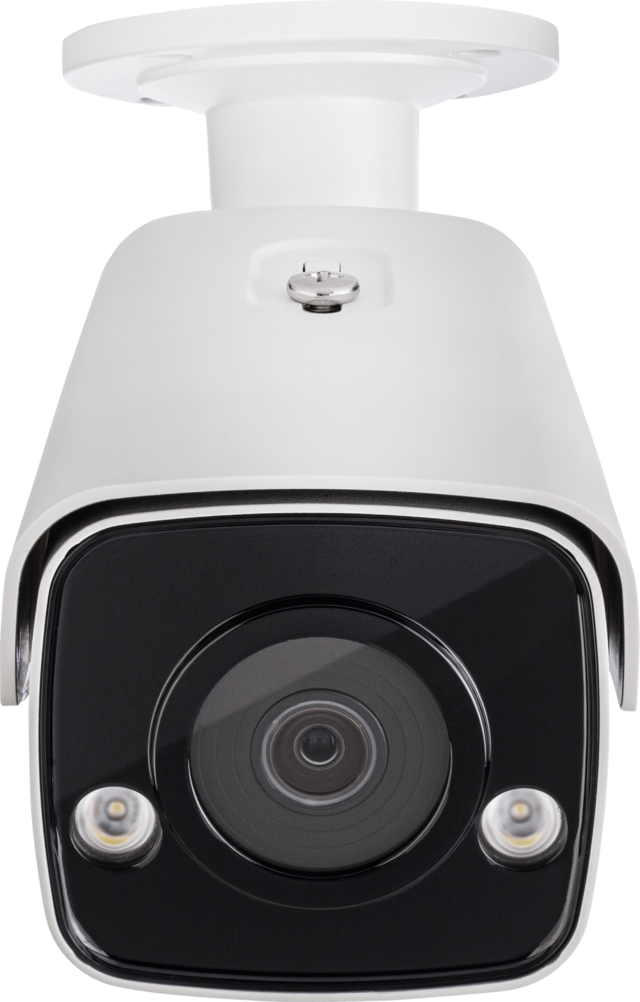

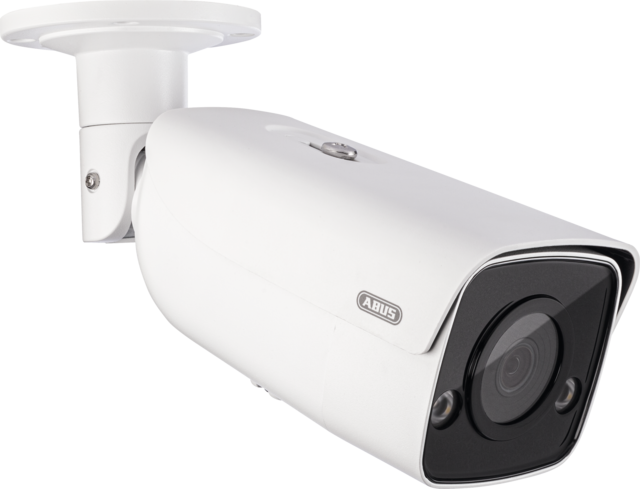

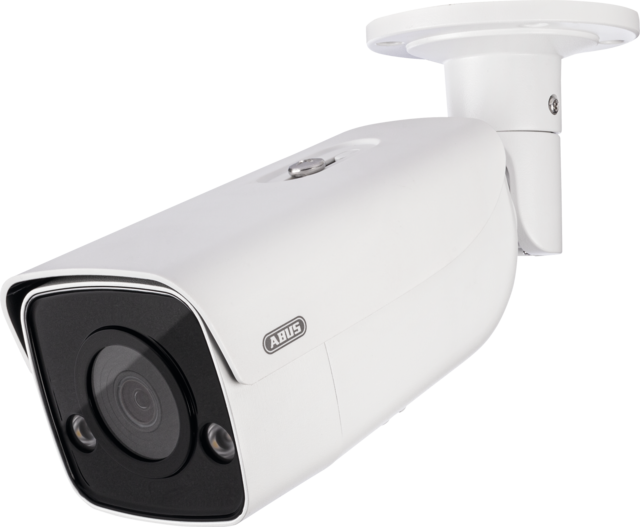

This IP-Tube is a LAN camera with 4 MPx resolution and full colour day/night function. With its white light LEDs in IP67 housing, it is designed for indoor/outdoor use by day and night. Mobile access to the camera via ABUS Link Station app.

Top surveillance: strong in the dark
Clear colour images in total darkness thanks to full-colour day/night technology - rich in detail for solid evidence. The slightest residual light is effectively amplified by the special lens and the extra light-sensitive image sensor. The white light LEDs provide a touch of extra light for the image sensor even at long distances, barely visible to the eye.

2 variants for max. flexibility
The camera is available with 2 focal lengths: 2.8 mm / 108° field of view (IPCS64511A) and 4 mm / 95° (IPCS64511B).

Autom. Object recognition
The security camera distinguishes relevant movements (people, vehicles) from interferences (branches, light, etc.) - and minimises unnecessary motion alarms.

Recording and compatibility
Recording is done on ABUS NVR, VMS/software or microSD card. The camera is compatible with ABUS Secvest, Secoris and WLX Pro.

Quick start-up
Mounting with protected cable via installation box (TVAC32600). The ABUS IP Installer software simplifies the setup in the network.

Notes: Without power supply unit, because PoE.
The effective LED range varies depending on the location.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 4 MPx resolution (2,688 x 1,520 @ 25 fps) for crisp surveillance images
  • 4 mm fixed-focus lens for further distances (95° angle of view)
  • Detailed, highly usable colour images in the dark thanks to full-colour day/night technology; effectively amplifies even minimal ambient light using a special lens and very light-sensitive image sensor
  • Discreet illumination of the field of view with white-light LEDs (up to 50 m range) for accurate colour images in total darkness (e.g. indoors); touch of illumination for the light-sensitive image sensor (barely visible to the human eye)
  • Object recognition (human & vehicle): Video content analysis with fully automatic differentiation between people/vehicles and interferences (branches, light, etc.)
  • Optional output of 3 video streams in ideal resolution for, e.g., live image, recording, mobile access, etc.
  • Sturdy, weatherproof housing (IP67)
  • Supports H.264, H.265, MJPEG (incl. Dynamic GOP)
  • microSD card slot for internal data storage, encrypted for high data security (optional)
  • 12 V DC & PoE (802.3af)

Downloads

General downloads:

Additional information:

Software:
Installation software:

Auxiliary programs:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

IP Tube 4 MPx (4 mm, WL)
IP Tube 4 MPx (4 mm, WL)
Specifications
Additional functions: White light range up to 50 m
Alarming: E-Mail, NAS, FTP
Aperture at minimum illumination (colour): F1.0
Backlight compensation: WDR, BLC, HLC
Camera type: Tube
Compatible with: ABUS NVR/DVR, ABUS Link Station App, Synology Surveillance Station 6.0.1+
Compatible with ABUS Link Station: Yes
Compatible with Comfion: Yes
Compatible with Secoris: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC
DC voltage supply: 12 (+/-25 %) V
Design: Tube
Digital zoom: Yes
Dimensions: (LxWxH) 282x105x105 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS, TLS 1.1/1.2
Focal length: 4 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Functions: Scene Change Detection, Region of Interest
Gross weight: 1,2 kg
Height: 105 mm
Horizontal viewing angle: 95 °
Housing material: Metal
IP protection class: 67
Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart-Event mode)
Image integration: Yes
Image sensor: 1/1.8" Progressive Scan CMOS
Installation type: Ceiling, Wall
LAN network access: RJ45 10M/100M self-adaptive
Language of instructions: DE, UK, FR, NL, DK
Length: 282 mm
Lens: Fix
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 2688 x 1520 @ 30 fps
Microphone: No
Min. operating temperature: -25 °C
Minimum illumination (colour): 0,0005 lx
Motion detection: 8 zones
Net weight: 1 kg
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, IGMP, Bonjour, PPPoE, SNMP
Noise reduction: 3D DNR
Number of streams: 3
Number of users: 32
OSD language: DE, UK, FR, NL, DK, IT
Other functions: Object Classification Person/Vehicle
PSTI conformity given: Yes
PSTI conformity required: Yes
Pixels (effective): 2688(H) x 1520(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 600 mA
Private zones: 4
Resolution: 4 MP
Resolution modes: Stream 1: 2688 x 1520 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1920 x 1080 @ 10 fps
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: IE11, Mozilla Firefox, Google Chrome, MS Edge
Technology: IP
Vertical viewing angle: 49 °
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection, Region Entrance, Region Exit
Video compression: Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265
Video network bandwidth: 32 kBit/s - 8 MBit/s
White balance: AWB, Manual
White-light LEDs: 2
White-light range (up to): 50 m
Width: 105 mm
