    SFP Module
    SFP Module

    SFP Module Singlemode

    Description

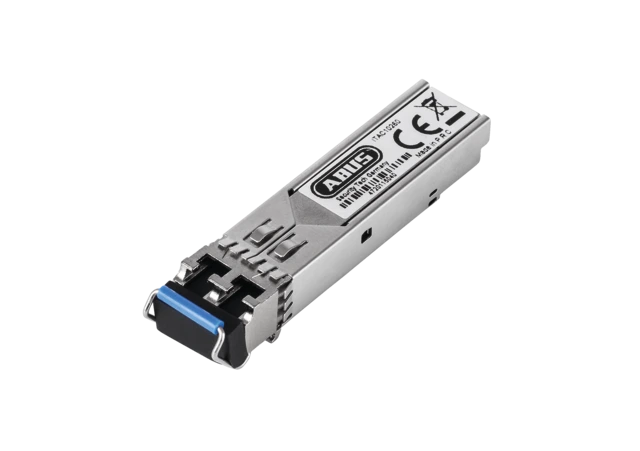

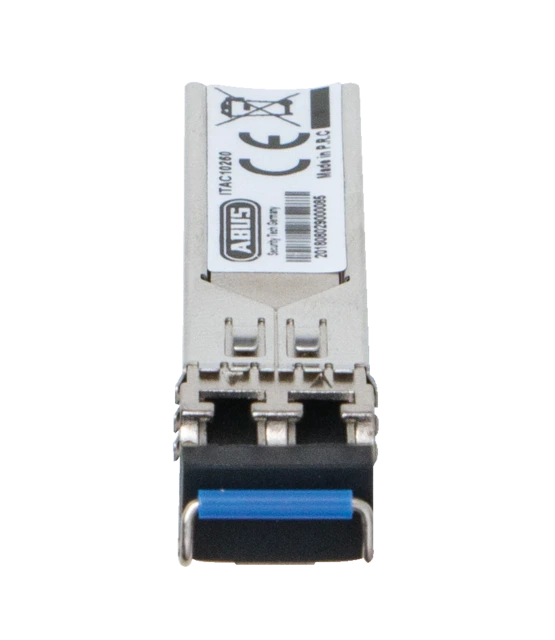

    For promising networking of professional security surveillance systems.
    The standardised SFP module is used to connect duplex single-mode optical fibres.

    It is compatible with all standardised SFP slots and is required for use of the LWL port in our switches and the media converter.

    Product advantages

    • SFP modules for LC plugs according to SFF-8472 standard
    • Supports hot-plug
    • Supports single-mode optical fibres
    • Transmission distance of up to 20 km
    • 1310 nm FP laser
    • Complies with the IEC-60825 laser safety standard

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Video Combination Cable 250 m
    Video Combination Cable 250 m
    Specifications
    Application purpose: General surveillance
    DC power supply: 3.15V～3.45V V
    Dimensions: (LxWxH) 56 x 14 x 6 mm
    Fiber optic cable type: Single mode 9/125um
    Fiber optic connection: LC
    Height: 6 mm
    Length: 56 mm
    Max. Air humidity: 95 %
    Max. Operating temperature: 70 °C
    Min. operating temperature: 0 °C
    Net weight: 0.017 kg
    Optical wavelength: 1,310
    PSTI conformity needed: No
    Power consumption: 1 W
    Product group: Accessories
    Transmission distance: 20,000 m
    WEEE group: 09
    width: 14 mm
