IP Spherical Dome Black 4 MPx 2.8 mm, WL) IP Spherical Dome Black 4 MPx 2.8 mm, WL)

IP Spherical Dome Black 4 MPx 2.8 mm, WL)

Wide-awake night watchman: natural colour images in absolute darkness thanks to special lens, sensitive image sensor, ext. WL LEDs. Object detection for precise alarm and quick event search

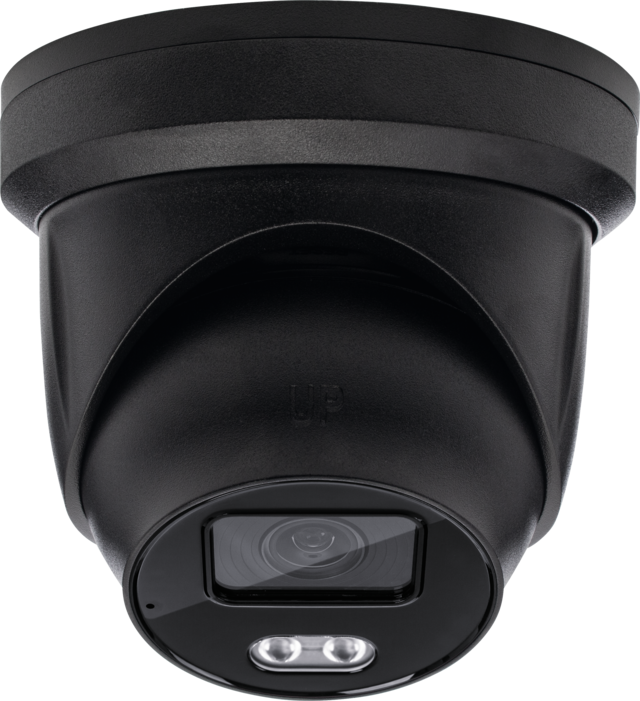

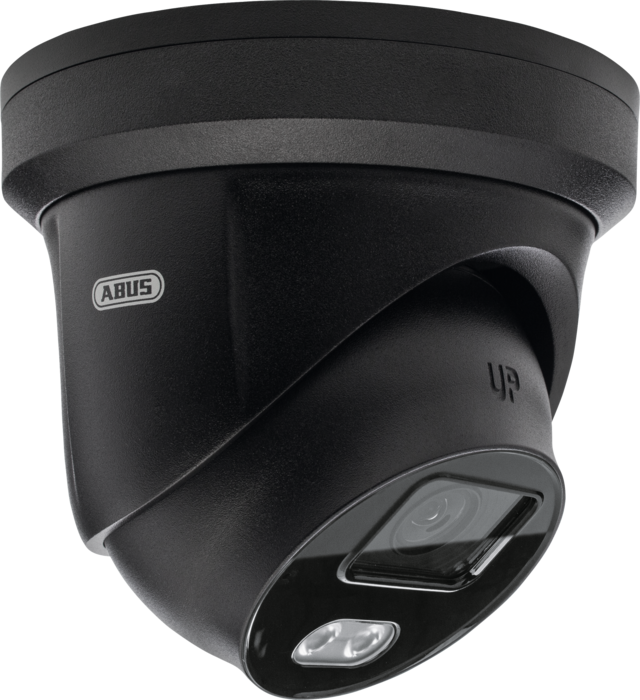

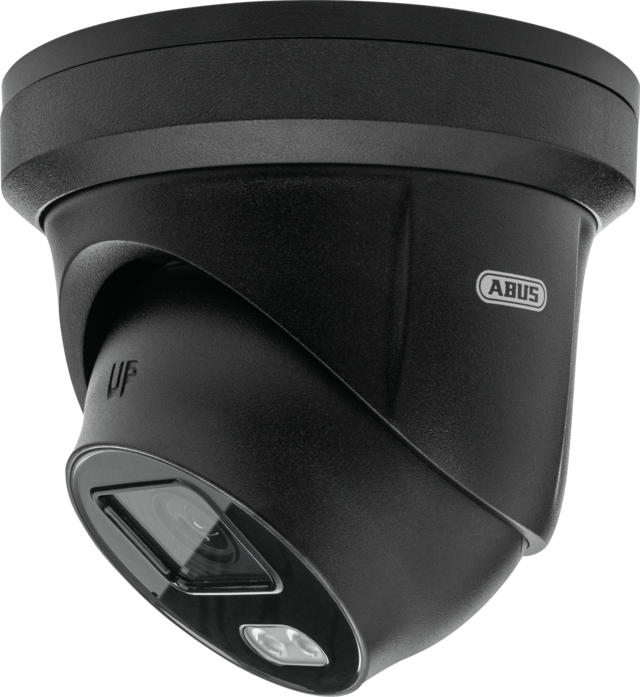

The IP spherical dome delivers the best surveillance images in 4 MPx resolution as a full colour day/night camera. The weatherproof IP67 housing is designed for outdoor use. External white-light LEDs provide clear images day and night. The camera can be accessed from the mobile app at any time.

Top surveillance in the dark
Clear colour images in total darkness thanks to full-colour tag/night technology – rich in detail for conclusive evidence. The slightest amount of residual light is effectively amplified by the special lens and the extra light-sensitive image sensor, while the white-light LEDs provide the sensor with precisely regulated extra light.

For longer distances
The IP dome covers a horiz. viewing angle of 95° or 108° (variant B or A).

Automatic object detection
The security camera distinguishes relevant movements (people, vehicles) from disturbing influences (branches, light, etc.) and minimises unnecessary motion alarms.

Recording and compatibility

Easy installation

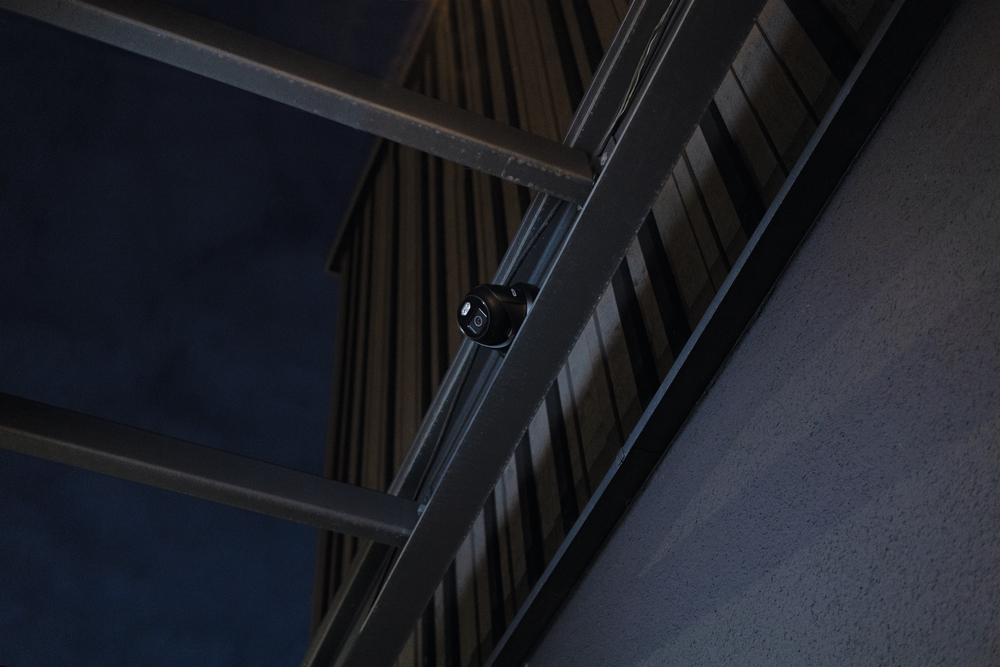

The camera is mounted on the ceiling or wall (wall bracket/installation box available). The free “ABUS IP Installer” software is available for integration into a network.

Notes: Without power supply unit, because power is supplied by PoE.
The effective LED range varies depending on the location.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 4 MPx resolution (2,688 x 1,520 @ 25 fps) for crisp surveillance images
  • 4 mm fixed lens for longer distances (108° angle of view)
  • Detailed, highly usable colour images in the dark thanks to full-colour day/night technology; effectively amplifies even minimal ambient light using a special lens and highly light-sensitive image sensor
  • Discreet illumination of the field of view with white-light LEDs (up to 30 m range) for accurate colour images in total darkness (e.g. indoors); finely metered lighting for the light-sensitive image sensor (barely visible to the human eye)
  • Object recognition (human & vehicle): Video content analysis with fully automatic differentiation between people/vehicles and disturbances (branches, light, etc.)
  • Intelligent video analysis with automatic detection of scenes (smart events) for precise motion alarms, recording and process optimisation; output of 3 video streams in ideal resolution for e.g. live image, recording, mobile access, etc.
  • Robust, weather-proof housing (IP67) with external WL-LEDs for clear image results without disturbing reflections in the glass dome; housing colour: black
  • Supports H.264, H.265, MJPEG (incl. Dynamic GOP)
  • microSD card slot for internal data storage, encrypted for high data security (optional)
  • 12 V DC & PoE (802.3af)


Installation software:

Auxiliary programs:



We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Alarming: E-Mail, App Push, FTP, CMS
Aperture at minimum illumination (colour): F1.0
Audio: Integrated: Microphone
Backlight compensation: WDR, BLC, HLC
Camera type: Dome
Colour: Black
Compatible with ABUS Link Station: Yes
Compatible with Comfion: Yes
Compatible with Secoris: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC
DC voltage supply: 12 (+/-25 %) V
Design: Dome
Digital zoom: Yes
Dimensions: (LxBxH) 139x139x128 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS, TLS 1.1/1.2
Focal length: 2,8 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Functions: Scene Change Detection, Region of Interest
Gross weight: 0,7 kg
Height: 128 mm
Horizontal viewing angle: 108 °
Housing material: Metal
IP protection class: 67
Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart-Event mode)
Image integration: Yes
Image sensor: 1/1.8" Progressive Scan CMOS
Installation type: Ceiling, Wall
LAN network access: RJ45 10M/100M self-adaptive
Language of instructions: DE, UK, FR, NL, DK, IT
Length: 139 mm
Lens: Fix
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 2688 x 1520 @ 30 fps
Microphone: Yes
Min. operating temperature: -25 °C
Minimum illumination (colour): 0,0005 lx
Motion detection: 8 zones
Net weight: 1 kg
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X, IGMP, Bonjour, PPPoE, SNMP
Noise reduction: 3D DNR
Number of streams: 3
Number of users: 32
OSD language: DE, UK, FR, NL, DK, IT
Other functions: Object Classification Person/Vehicle
Pixels (effective): 2688(H) x 1520(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 600 mA
Private zones: 4
Resolution: 4 MP
Resolution modes: Stream 1: 2688 x 1520 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1920 x 1080 @ 10 fps (only in surveillance mode)
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: MS Edge, IE11, Mozilla Firefox, Google Chrome
Technology: IP
Vertical viewing angle: 55 °
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection, Region Entrance, Region Exit
Video compression: Stream 1: H.264, H.265, Dynamic GOP (+), Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265 (only in surveillance mode)
Video network bandwidth: 32 kBit/s - 8 MBit/s
White balance: AWB, Manual
White-light LEDs: 2
White-light range (up to): 30 m
Width: 139 mm
