SG1650

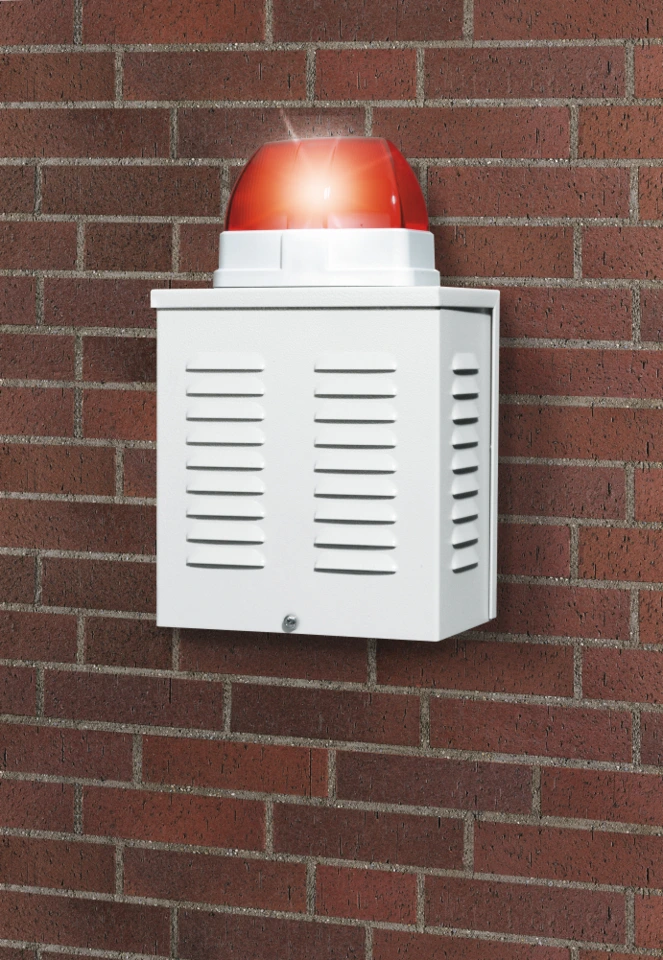

Combination signal with flashing light and sounder
The combination signalling device is a crucial component of a fully functioning alarm chain. In the event of an alarm, the sounder generates an extremely loud signal tone with over 110 dB sound pressure. In addition to the acoustic alarm, a visual alarm is signalled by a red xenon flashing light that is visible from afar (flashing frequency: 1.17 Hz). The sounder and flashing light can be controlled separately so that the signals can also be triggered independently of each other.
Easy installation indoors or outdoors
The sounder with flashing light can be installed both inside and outside buildings. The weatherproof aluminium housing (IP 34) of the combination alarm is protected against tampering by wall and cover contacts as well as an additional internal grille. The sounder with flashing light is supplied externally with 12 V. With xenon flash light, the maximum power consumption is 750 mA, without flashing light 350 mA.
