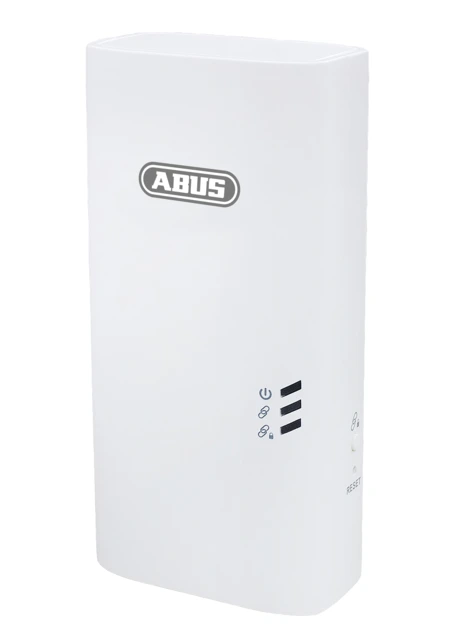

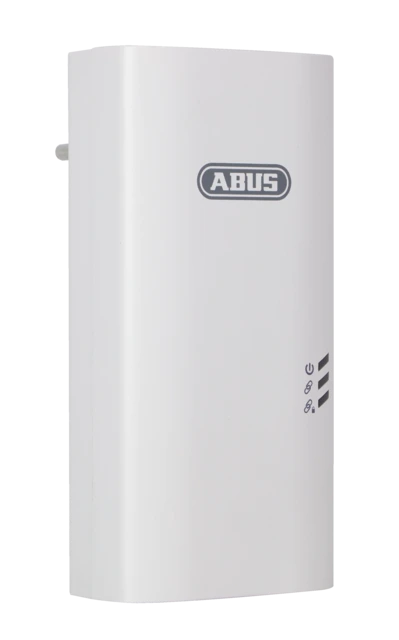

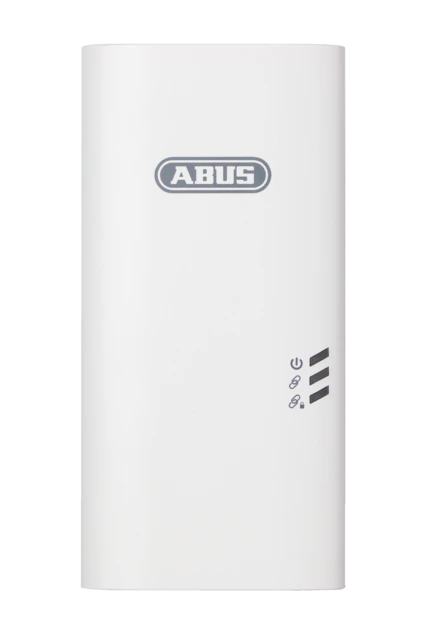

Powerline PoE Adapter

Description

ITAC10320

Network plug and play.
Using the Powerline PoE Adapter, every conventional socket is transformed into a secure and fast network connection in the blink of an eye.

Use PoE instead of power supply unit.
Operate your PoE-capable network device directly via the adapter, which means that you require no additional power supply unit (2 x PoE 802.3af or 1 x PoE 802.3at).

Full flexibility.
Create your own network with up to 16 adapters and combine with our Powerline Adapter ITAC10300. In this case, data transmission also works cross-phase, which entails a reduction in the data rate to 80–90Mbit/s.

Without compromising on security.
With just one button, you can configure 128bit AES encryption, which makes your data transmission secure.

Product advantages

Data transmission via available power grid
2 x RJ45 (2 x PoE 802.3af or 1 x PoE 802.3at)
Supports PoE for direct operation of your PoE-capable network device at the Powerline Adapter
Fast transmission rates of up to 1000 Mbit/s according to G.hn (HomeGrid standard)
Supports up to 16 adapters in a network
Secure transmission thanks to 128 bit AES encryption

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

AC voltage supply:	110-240 V
Connections:	2 x RJ45 (2 x PoE 802.3af or 1 x PoE 802.3at)
Dimensions:	(LxWxH) 39 x 72 x 146 mm mm
Height:	146 mm
Housing material:	Plastic
Length:	39 mm
Max. PoE power per port:	15,4 Watt
Max. humidity:	95 %
Max. operating temperature:	40 °C
Min. operating temperature:	0 °C

Net weight:	0,3 kg
Network Standards:	IEEE 802.3af, IEEE 802.3at
Network access:	1x 10/100 Mbit/s Base-T auto-sense (PoE)
Network camera protocols:	802.1D, 802.1Q, QoS, IGMP, MLD
PSTI conformity required:	No
PoE standard:	802.3af
Power consumption:	800 mA
Width:	72 mm
