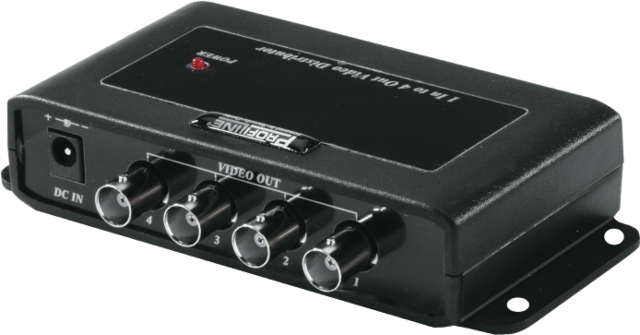

4x signal distributor rear view

4x Signal Distributor

Description

Use the 4x signal distributor to transmit the video input signal without loss to four monitors. Connect your camera to the signal distributor's video input and connect the monitors to the video outputs. Four BNC video outputs are provided.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Transmission of a video signal to up to four monitors or recorders
  • 1 video input (BNC/1 Vpp, 75 ohm)
  • 4 video outputs (BNC/1 Vpp, 75 Ω)
  • Suited for PAL and NTSC

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
DC voltage supply: 12 V
Dimensions: (W x H x D) 137 x 27 x 65 mm
Max. operating temperature: 45 °C
Min. operating temperature: -10 °C
Video input: 1 BNC
Video input impedance: 75 Ω
Video input level: 0,5Vss − 1Vss dB
Video output: 4 BNC
Video output level: 1 Vss
Video system: PAL / NTSC
