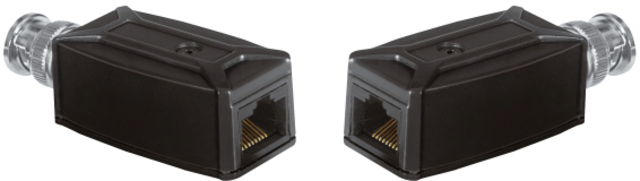

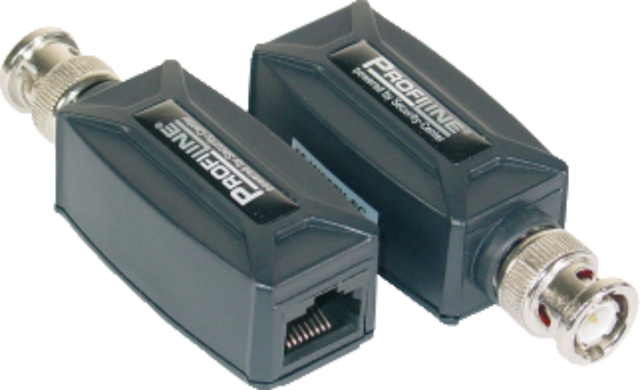

600 m 2-wire Transmission Set front view 600 m 2-wire Transmission Set front view 600 m 2-wire Transmission Set front view 600 m 2-wire Transmission Set front view 600 m 2-wire Transmission Set right view 600 m 2-wire Transmission Set left view

2-Wire Transmission Set

Description

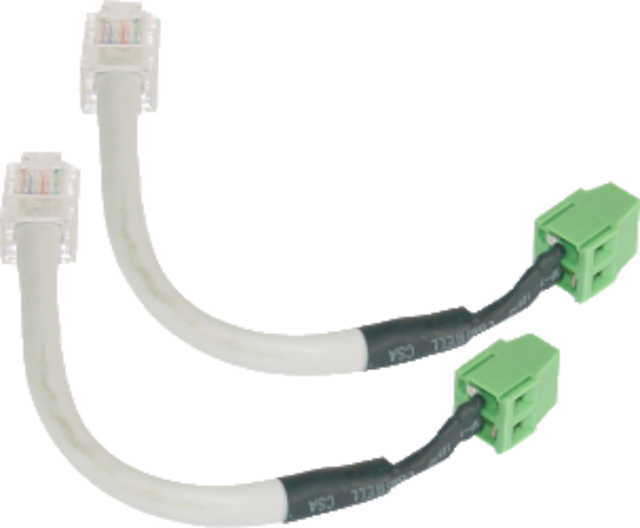

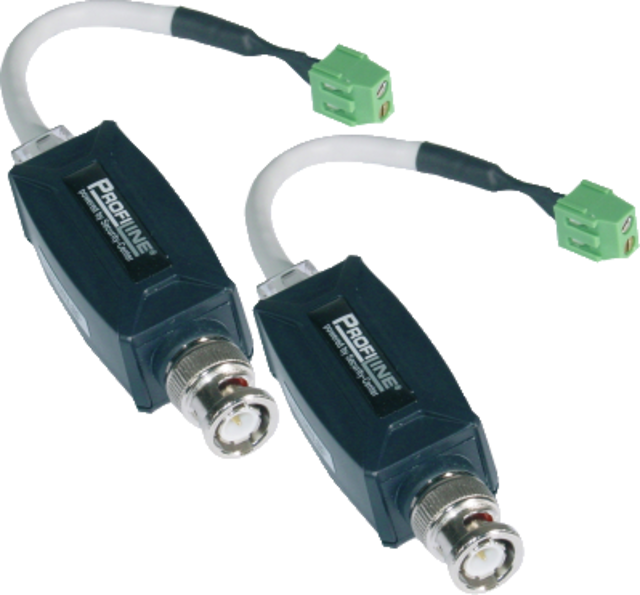

This set allows transmitting the video signal via a 2-core cable. The 2-wire transmission set consists of a transmitter module and a receiver module. Connect the transmitter module to the video output of your camera and the receiver module to the video input of your monitor. The two modules are connected by a twisted pair cable (CAT5 cable with RJ45 socket) or existing 2-core copper wires (e.g. a telephone cable). The maximum distance between the two modules is 600 meters (analog). The scope of delivery includes two adapters (RJ45 socket on screw terminals) for trouble-free installation of the wiring.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 1 × BNC plug (1 Vpp, 75 ohm)
  • 1 × RJ45 socket (100 ohm)
  • Set consists of a transmitter and receiver
  • Max. transmission distance: 600 m (Analog) / 100 m (Analog HD)
  • Video transmission via twisted pair or network cables

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Dimensions: (W x H x D) 19 x 23 x 66 mm
Max. operating temperature: 50 °C
Min. operating temperature: 0 °C
Output: RJ-45
Suitable cable: Twisted Pair / CAT5 / AWG24
Transmission distance: 600 m
Video input: 1x BNC
Video input impedance: 75 Ω
Video input level: 1Vss dB
