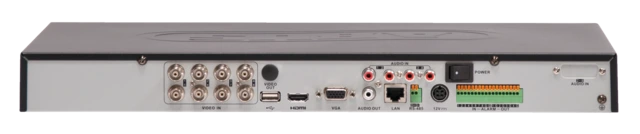

8-channel analogue HD video recorder back

8-channel Analogue HD Video Recorder

Description


The 8-channel analogue HD video recorder allows the recording and management of up to 8 analogue HD cameras in full HD (1080p) or 8 analogue cameras in real time. The hybrid function allows combined operation of both analogue cameras and analogue HD cameras with the latest HD-TVI technology. This guarantees cost-effectiveness and return on investment, for example when converting and upgrading existing CCTV systems.
The recorder supports two SATA hard disk drives each with up to 4 TB for data storage.

Increased transmission range
A great advantage of HD-TVI technology is the line lengths across large distances that can be achieved without a reduction in quality. An HD-TVI signal (720p HD or 1080p full HD) can be transmitted in real time, for example, via a conventional RG59 cable (up to 300 metres) or RG6 cable (up to 500 metres). The range extends across both conventional analogue and HD-SDI devices. Both video and control signals such as PTZ and OSD controls are transmitted via a BNC cable.

Three analysis functions support video recordings with quick evaluation.
Smart playback: an area can be selected that only displays recordings in which movement occurs.
Trip wire: a line can be drawn that only displays recordings in which the line was crossed.
Intrusion detection: an area can be drawn that only displays recordings occurring within this area.

Mobile access via app from anywhere in the world
The network connection of the recorder provides global access to the video image data, which can be called up at any time from any place using the iDVR mobile app.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Real-time recording and live display of all channels in full HD resolution (1080p)
  • Recorder compatible with analogue HD and analogue cameras up to 2MPx
  • Max. transmission length via RG59/RG6 BNC cable from recorder to camera: 300/500 metres
  • PTZ and OSD control as well as video transmission via BNC cable
  • Smart search for easy evaluation of recordings on the recorder
  • Additional memory possible via network
  • Installation wizard for easy initial start-up
  • Supports two SATA hard disk drives up to 4 TB
  • Network connection for worldwide access
  • Mobile access via the iDVR Plus / iDVR Plus HD app

Downloads

General downloads:

Additional information:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
AC voltage supply: 100 - 240 V
Alarm inputs (NO/NC): 8
Alarming: Acoustic warning, OSD signal, email
Analogue video channels: 8
Audio: Audio In: 4 x cinch (2.0 V p-p, 1000 Ω), Audio Out: 1 x cinch (600 Ω)
Audio bitrate: 64 kbit/s
Audio compression: G.711u
Camera inputs: 8 x BNC (HD-TVI, Analog CVBS)
Control: Mouse, PC software, integrated web server
DDNS: Yes
Dimensions: 440 x 276 x 50 mm
Gross weight: 4,5 kg
HD-SDI video channels: 0
HD-TVI video channels: 8
Height: 50 mm
Hybrid-capable: Yes
IP protection class: 20
IP video channels: 0
Language of instructions: German, English, French, Dutch, Danish, Polish, Russian
Length: 276 mm
Loi Sarkozy compliant (only valid for FR): Yes
Max. humidity: 90 %
Max. operating temperature: 55 °C
Min. operating temperature: -10 °C
Mobile access: Yes (iOS/Android: iDVR Plus, iDVR Plus HD)
Monitor outputs: 1 x VGA, 1 x HDMI
Net weight: 2,5 kg
Network access: 1 x RJ45 10/100/1000 Mbps
Network functions: DVR: NAS saving, IP-SAN saving/recorder software: Live view, playback, data export/web interface: Live view, playback, data export, log files, settings/apps: Live view, playback
Network protocols: TCP/IP, PPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
OSD language: German, English, French, Dutch, Danish, Polish, Swedish, Russian
Operating mode: Triplex
PTZ control: RS-485, HD-TVI
PTZ protocols: ABUS-Coaxitron, PELCO-D, PELCO-P, Samsung, LG-MULTIX
Power consumption: 20 W
Pre/post alarm memory: 0-2 / 5-900
Recording bitrate: 32Kbit/s bis zu 10Mbit/s
Recording duration at max. resolution and frame rate: 74 hours/TB
Recording duration at min. resolution and frame rate: 582 hours/TB
Recording frame rate: 1/16 fps bis zu 25/30 fps
Recording modes: VCA (max. 2 Ch. / tripwire, intrusion detection), motion detection, alarm, motion detection and alarm, motion detection or alarm, time schedule, manual
Recording resolution @ frame rate per camera (NTSC): 1920 x 1080 @ 30 fps, 1280 x 720 @ 30 fps, 640 x 480 @ 30 fps, 704 x 576 @ 30 fps, 352 x 288 @ 30 fps
Recording resolution @ frame rate per camera (PAL): 1920 x 1080 @ 25 fps, 1280 x 720 @ 25 fps, 640 x 480 @ 25 fps, 704 x 576 @ 25 fps, 352 x 288 @ 25 fps
Relay output: 4 (maximum load: 12 V DC/1 A)
Resolution live view: HDMI: 1920*1080/60Hz(1080P), 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz - VGA: 1920*1080/60Hz(1080P), 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz - BNC Output: PAL: 704×576, NTSC: 704×480
Sabotage monitoring video: Yes
Search modes: Smart search, VCA, event, date & time
Simultaneous network access: 128 channels
Software: ABUS CMS Software (Windows), iDVR Plus (iOS/Android), iDVR Plus HD (iOS/Android)
Storage: 2 x USB 2.0
Storage medium: 2 x SATA HDD (max. 10 TB), 8 x network drive
Stream 1: Recording resolution @ frame rate per camera (PAL): 1080p / 720p / VGA / 4CIF / CIF
Stream 2: Recording resolution @ frame rate per camera (PAL): WD1 / 4CIF / CIF / QCIF / QVGA
Total frame rate (PAL): 200 fps
Total network throughput (input/output): 128Mbit (0 Mbit / 128Mbit)
Total video channels: 8
User levels: 2
Video compression: H.264
Views: 1 / 4 / 6 / 8 / 9
Watchdog hardware: Yes
Web server: Yes
Width: 440 mm
