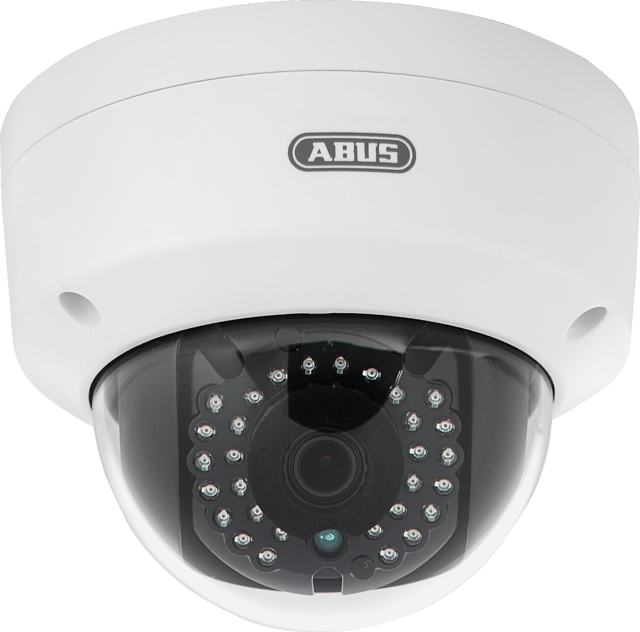

ABUS IP video surveillance 2MPx Wi-Fi mini dome camera

Description

Detailed monitoring in any wind and weather conditions
With a detailed high resolution of 1920 x 1080 pixels, the TVIP42560 WLAN HD 1080p Outdoor Dome Camera records 25 frames per second and can be used as a versatile surveillance solution for home or office. With its sturdy, weather-protected housing featuring protection class IP67, the dome camera can be used both indoors and outdoors.

Ideal installation: Entrance area
The camera is particularly suitable for monitoring entrance areas thanks to its built-in motion sensors and WDR function for backlight compensation. The integrated microSD card slot for internal data storage functions as a back up solution. In addition, the camera has integrated infrared LEDs, which are automatically activated in the dark. The camera is installed without any annoying cable spaghetti. This can be achieved in two different ways: Power can be supplied via the network cable (PoE), or the camera can be operated via WLAN so that only the power cable needs to be laid.

Worldwide access to live images
It is possible to gain mobile access to live images online, with the extra convenience of doing so using a smartphone or tablet app. What's more, the camera also offers the option of sending the video data by email. The WPS button is used to facilitate setting up the WLAN connection required for this.

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

Product advantages

  • 2MPx Wi-Fi camera for indoors and outdoors
  • Detailed full HD (2MPx) resolution of 1920 x 1080 pixels at 25 frames/second
  • With DWDR function for backlight compensation – ideal for entrance areas
  • Integrated software motion detection
  • Integrated IR LEDs for optimal night vision
  • Capacity to send images by email
  • Capacity to back up data via the integrated microSD card slot
  • Web and mobile access to live images using the IPCam Plus app or browser
  • WPS button for easy set-up of the Wi-Fi connection
  • PoE (Power over Ethernet)-compatible

Downloads

General downloads:

Software:
Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Alarming: Email
Aperture: F2.0
Channel width: 20 MHz
Colour: White
Compatible with: TVVR36xxx / TVVR33xxx / NVRxxxxx
Compatible with Secvest: No
Compatible with Smartvest: Yes
Compatible with wAppLoxx: No
DC voltage supply: 12 V
Day/night switching: Auto / Manual / Schedule
Dimensions: (Ø x H) 110 x 82 mm
Encryption: 64/128-bit WEP / WPA/WPA2 / WPA-PSK/WPA2-PSK / WPS
Focal length: 2,8 mm
Frequency range: 2,4 - 2,4835 GHz
Gross weight: 0,882 kg
Horizontal viewing angle: 106 °
Housing material: Metal / Plastic
IP protection class: 67
IR LEDs: Yes
IR range (up to): 20 m
IR swivel filter: Yes
Image enhancement: BLC / Digital WDR
Image sensor: 1/2.8" CMOS
Image settings: Brightness / Contrast / Saturation / Sharpness / Mirroring
Lens mount: M12
Loudspeaker: Yes
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 1920 x 1080 @ 25/30 fps
Microphone: Yes
Min. operating temperature: -30 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,028 lx
Net weight: 0,5 kg
Network access: 1x RJ-45 10/100 Mbit/s self-adaptive Ethernet Anschluss
Network protocols: TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / PPPoE / NTP / UPnP / SMTP / IPv6
Noise reduction: 3D DNR
Number of users: 32
OSD language: DE / UK / FR / NL / DK / IT / PL / ES / SE
Optical Wave Length: 850 nm
PSTI conformity required: No
PoE standard: 802.3af
Power consumption: 5,3 W
Private zones: 4
Recording modes: Manual / time schedule / motion detection
Resolution modes: 1920 x 1080 / 1280 x 960 / 1280 x 720 @ 25/30 fps
Sensitivity: 11b: -90dBm / 11g: -75dBm / 11n: -74dBm
Software: IPCam Plus (iOS & Android) / iDVR Plus (iOS & Android) / IP Installer
Storage medium: MicroSD (max. 128GB) / NAS
Supported browsers: Internet Explorer, Edge, Chrome, Firefox, Safari
Technology: IP
Transmission power: 11b: 17 +/- 1,5dBm / 11g: 14 +/- 1,5dBm / 11n: 12,5 +/- 1,5dBm
User levels: 3
Video compression: H.264 / MJPEG
WLAN network access: IEEE802.11b/g/n / 11b @ 11Mbit/s / 11g @ 54Mbit/s / 11n @ 150Mbit/s
White balance: Auto white balance (AWB) / incandescent lamp / warm light / natural light / fluorescent lamp
Wireless range: (Depending on installation) 20 - 50 m
