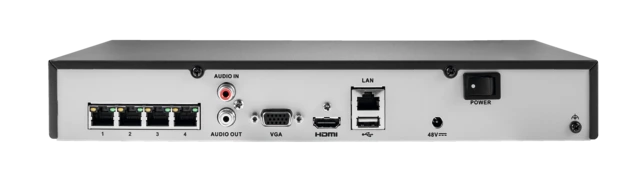

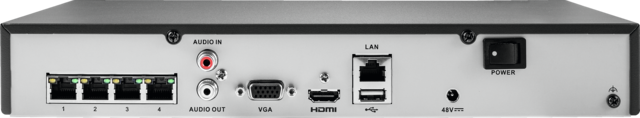

TVVR36400 - Rear view

ABUS IP video surveillance 4-channel PoE recorder

Description

Performance for beginners – with PoE
The recorder for four PoE cameras is your efficient first step into the world of surveillance systems.

Cutting-edge recording technology in 4K Ultra HD
The 4-channel PoE network recorder records video streams from up to four IP cameras simultaneously with each camera offering a resolution of up to 4K Ultra HD. Because it is compatible with the H.265 Standard, the recorder can process highly compressed image data from cameras which support H.265. These are stored in brilliant quality, take up even less storage space (compared to H.264) and are perfectly suited for network access via integrated broadband interface (1000 Mbit/s). If the recorder is connected to the router, the video streams are transmitted via LAN or Wi-Fi, without the need to connect a cable to the camera. Alternatively, PoE cameras can be connected directly to the recorder via LAN cable and supplied with power, without an extra power cable for each camera.

Custom configuration – intuitive operation
Simply connect the device to the router and monitor and use to mouse for control. That’s it. Recording can be performed manually, according to a schedule or using motion detection. Live view, playback and USB data export can all be performed simultaneously (Triplex operation). An HDMI or VGA connection is used for playback (4K or 1080p) on a monitor or TV.

Access to live images & recordings: secure and easy
The camera simply connects directly to the ABUS Link Station app on the smartphone or tablet via an encrypted end-to-end connection (E2E) - and without any settings on the router. With the Lite version of the app, up to 60 minutes of data stream (live view/playback) per month via Internet or Wi-Fi are completely free. Or with the ABUS Link Station Pro: Buy once and access unlimited data forever.

Product advantages

  • 4-channel network recorders for live view and recording from up to 4 IP cameras
  • With 4 PoE (Power over Ethernet) interfaces
  • With H.265 Plus provides 4 times more recording capacity (support depending on camera model)
  • Save up to 6 TB to 3.5" hard disk drive (hard disk drive not included in scope of delivery)
  • 4K HDMI output for simultaneous native view of four full HD (2MPx) IP cameras
  • Recording via motion detection, following a time schedule or continuously
  • Recording from up to four 4K (8Mpx) cameras possible
  • Easy mobile access with the ABUS Link Station App - no router settings required

Downloads

General downloads:

Declarations of conformity:

Additional information:

Software:
Installation software:

Auxiliary programs:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Alarming: Acoustic warning signal, OSD signal, e-mail
Audio input: 1x Cinch (2.0Vp-p, 1KΩ)
Audio output: 1x Cinch (Line, 1KΩ)
Compatible with Secvest: No
Compatible with Smartvest: Yes
Compatible with wAppLoxx: No
DC voltage supply: 48 V
Dimensions: (W x L x H) 315 x 240 x 48 mm
Gross weight: 2,8 kg
Housing: 1U Chassis
Housing material: Metal, Plastic
IP video channels: 4
Max. humidity: 90 %
Max. operating temperature: 55 °C
Max. resolution @ frame rate: 8MPx @ 25/30fps
Min. humidity: 10 %
Min. operating temperature: -10 °C
Net weight: 2,1 kg
Network access: 1x RJ-45 10/100/1000 Mbit/s self-adaptive Ethernet interface
Network protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
OSD language: DE, UK, FR, NL, DK, IT, PL, ES, SE
PSTI conformity required: No
Performance decoding (local live view & playback): 4x 2MPx, 1x 4Mpx, 1x 8MPx
PoE connections: 4x RJ-45 10/100 Mbit/s self-adaptive Ethernet interfaces
PoE power: 50 W
PoE standard: IEEE 802.3 af/at (max.50W)
Power: 65
Recording modes: Manual, time schedule, motion detection, alarm, VCA
Recording resolution @ frame rate per camera: 8MPx / 6MPx / 5 MPx / 4 MPx / 3 MPx / 2MPx / UXGA / 1MPx / VGA / 4CIF / DCIF / 2QIF / CIF / QCIF @ 25/30fps
Resolution HDMI output: 4K (3840 × 2160) / 30Hz, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz; HDMI/VGA simultaneous output
Resolution VGA output: 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz; HDMI/VGA simultaneous output
Software: ABUS Link Station (iOS & Android) / IP Installer
Storage medium: 1x Sata interface (3,5" HDD, max. 6TB) / NAS
Supported browsers: IE11 (Plugin)
Synchronous playback: 4
Total network throughput (input/output): (40 / 80) Mbit/s
USB connection: 2x USB 2.0
Video Content Analysis (VCA): On camera support: Tripwire Detection, Intrusion Detection
Video compression: H.265 / H.265 Plus / H.264 / H.264 Plus / MPEG4
