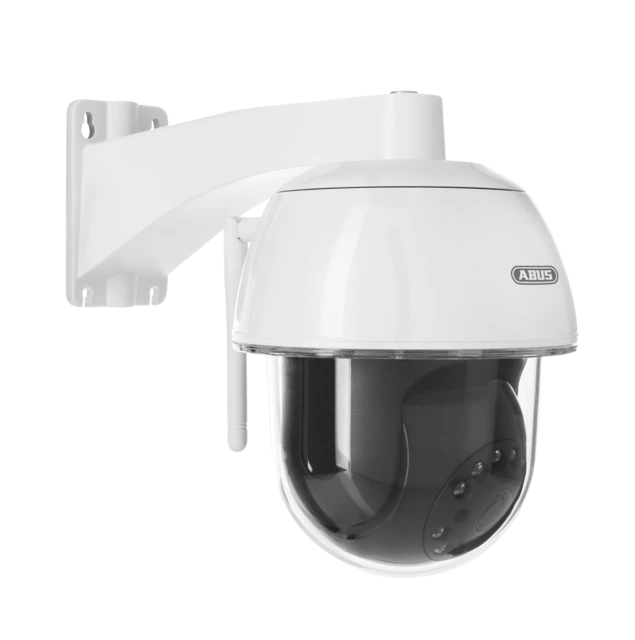

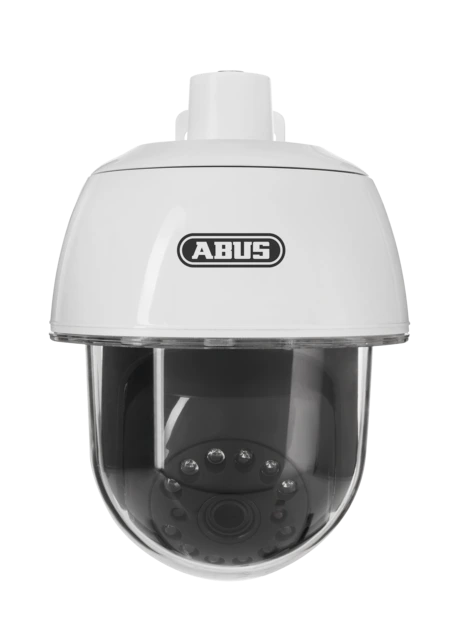

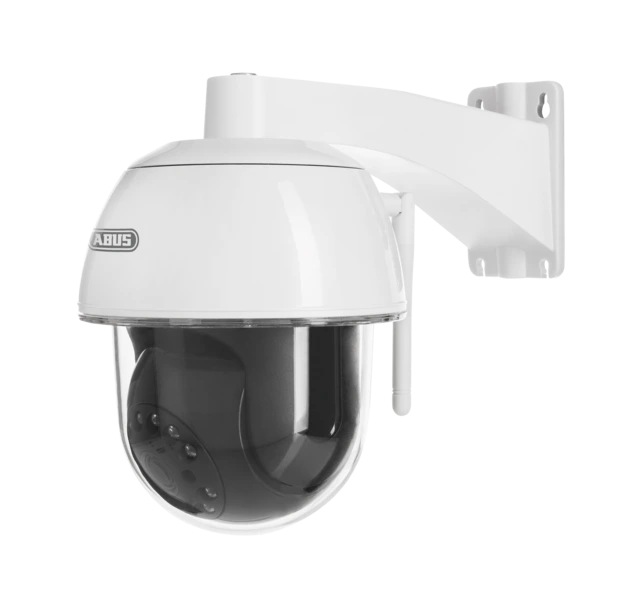

ABUS Smart Security World Wi-Fi Pan/Tilt Outdoor Camera

Description

PPIC32520 The ABUS Smart Security World Wi-Fi Pan/Tilt Outdoor Camera with Full HD 1080p resolution and infrared night vision function always ensures a brilliant image quality and a full overview. The recording range can be controlled via the app and has a swivel range (right–left) of 270° and a tilting range (up–down) of 90° for 360° surveillance. The camera is suitable for outdoor use and belongs to the IP66 protection class.

Event notification and mobile access
Operation of and access to this app camera are exclusively via the app – with no PC, web browser or additional software. If desired, you will be informed of incidents by email or push notification and can take a snapshot or access the corresponding video image data using the app. Movements in the camera's field of vision trigger recording to the SD card. With the app, you always have access to the image material. The compressed data transmission means hardly any burden is placed on the network.

Smart Security World Ready
The ABUS Smart Security World Wi-Fi Pan/Tilt Outdoor Camera is part of the Smart Security World and is therefore not only functional, but is also fully integrated into the Smartvest wireless alarm system – as such, during installation there are no concessions in terms of convenience, and users simply follow the intuitive step-by-step installation instructions.

Information on the night vision function
The effective IR range will depend on the installation location.

Awards & Partners

Product advantages

For effective, all-round surveillance of outdoor areas with pan/tilt and preset function
Full HD 1080p resolution and infrared night vision function for brilliant image quality
Controllable via the app with a 270° pan and 90° tilt area
Camera movement can quickly and easily be controlled on three individually configured positions (three preset positions)
Sturdy weatherproof camera housing (IP66)
Guided step-by-step installation via the app (iOS, Android)
Recording to SD card with up to 128 GB (accessory)
Direct notification via email and push service as well as automatic recording when motion detection is set up
Integrated microphone for listening via the app (can be turned off)
Low network load thanks to high data compression (H.264 High Profile compression)

Downloads

General downloads:

Declarations of conformity:

CE certificate

Additional information:

Software:
Firmware:

V1.2.1.30

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Version: 1.2.1.30
Firmware compatible to: PPIC32020, PPIC32520, PPIC34520

Changes:
- Schedule function added
(Possibility to add a schedule for activating/deactivating the camera)

GDPR adjustments:
- Recordings without audio can be activated
- overwrite function for 3/7/30 days added
(automatic overwriting of existing files in 3/7/30 day cycles)
- E-Mail notifications extended by STARTTLS

Firmware update:
1. Copy the two files xxx.img and xxx.mdf5 to an empty microSD card.
2. Disconnect the camera from the power supply.
3. insert the microSD card into the camera.
4. power the camera now.

Never disconnect the camera from the power supply during the firmware update, otherwise irreparable damage to the device may occur! The update process takes about 3 minutes.

Specifications

Alarming:	Push notification / E-Mail
Audio bitrate:	16 Kbit/s
Base event:	Software + Motion Mask
Channel width:	20 MHz
Colour:	White
Compatibility:	Smartvest wireless system
Compatible with:	Smartvest / SmartFriendsBox
Compatible with Secvest:	No
Compatible with Smartvest:	Yes
Compatible with wAppLoxx:	No
Controllable with app:	Yes
DC voltage supply:	5 V
Day/night switching:	Auto
Dimensions:	(B x L x H) 205 x 140 x 155 mm
Encryption:	AES 128bit, WPA/WPA2-PSK
Focal length:	4 mm
Frequency range:	2,400 –2,485 GHz
Functions:	Night vision, Pan-tilt, Zoom
Gross weight:	1 kg
Horizontal viewing angle:	90 °
Housing material:	Plastic
IP protection class:	66
IR LEDs:	Yes
IR range (up to):	8 m
IR swivel filter:	Yes
Image sensor:	1/2,7" CMOS
Location:	Outdoor use
Loudspeaker:	No
Max. humidity:	90 %
Max. operating temperature:	50 °C
Max. resolution @ frame rate:	Full HD (1080p) @ 20fps

Microphone:	Yes
Min. humidity:	20 %
Min. operating temperature:	-10 °C
Minimum illumination (IR):	0 lx
Minimum illumination (colour):	1 lx
Net weight:	0,59 kg
Network access:	RJ-45 connector (10/100 Mbps)
Network protocols:	TCP/IP, UDP, SMTP, NTP, DHCP, ARP
Number of presets:	3
Optical Wave Length:	850 nm
PSTI conformity given:	No
PSTI conformity required:	Yes
Pan/tilt range:	270° Horizontal / 90° Vertical
Plug type:	DC-plug: 3,5 x 1,35mm
Power consumption:	4,5 W
Power supply:	Power adapter
Pre/post alarm memory:	2 Sec
Recording modes:	Manual / motion detection
Resolution modes:	Full HD (1080p) / HD (720p) / VGA (480p)
Sensitivity:	-90 dBm
Simultaneous network access:	3
Software:	App: ABUS App2Cam Plus (Android/iOS)
Storage medium:	Micro-SD (128GB)
Technology:	Network
Transmission power:	11b: 17 +/- 1,5dBm / 11g: 14 +/- 1,5dBm / 11n: 12,5 +/- 1,5dBm
Vertical viewing angle:	45 °
Video compression:	H.264
WLAN network access:	IEEE 802.11 b/g/n
White balance:	AWB
Wireless range:	(Depending on installation) 20 - 50 m
