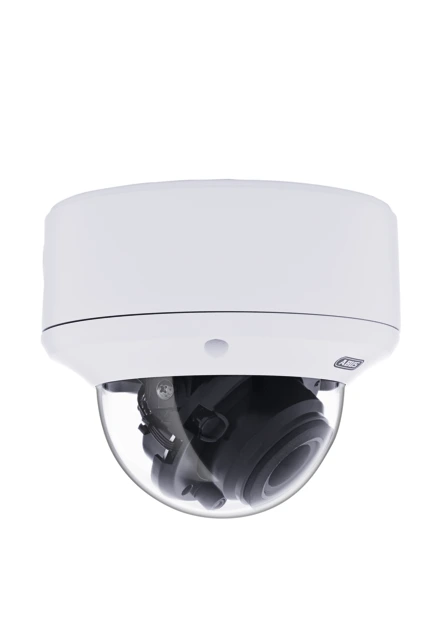

    Analogue Dome Camera
    Analogue Dome Camera
    Analogue Dome Camera

    Analogue HD Dome 8 MPx (4K, 2.8 - 12 mm)

    Professional surveillance, cost-effectively installed using existing cable infrastructure: Ultra HD resolution, adjustable viewing angle (motorised zoom) and excellent images at night and against the light.

    Description


    The ABUS dome surveillance camera with 8 megapixels delivers images in Ultra HD (4K). With more details, excellent image contrasts and high-resolution images, video surveillance is now even more effective. In combination with 4K-capable recorders and a 4K monitor, the 4K dome camera shows its full superiority.

    Optimised image and quick installation
    Strong True WDR ensures uniform exposure of different foreground and background scenarios. The automatic day/night switching of the powerful IR LED technology ensures optimum, very balanced image lighting. Precise adjustment of the motorised zoom lens can be carried out conveniently via remote access.

    Indoor and outdoor surveillance
    The dome camera impresses with its robust design and high protection classes against dust and water (IP67) and vandalism (IK10). The fact that it is difficult to tell which direction the lens is pointing makes the dome camera especially suitable for discreet surveillance.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Analogue Dome Camera

    Product advantages

    • Brilliant surveillance images with high resolution: 8 MPx (4K) with 3840 x 2160 pixels @ 12.5 fps
    • 4K Ultra HD resolution via wired analogue system
    • High image quality even with backlight and in difficult lighting conditions thanks to compensation of light/dark contrasts (True WDR)
    • Easy installation and focusing via remote access with the motorised zoom lens (2.7 - 13.5 mm)
    • Powerful IR LED technology for improved illumination up to 60 m at night
    • Robust security camera: Vandalism- and weatherproof housing (IK10 & IP67)
    • Perfect for inexpensive retrofitting: Transmission via existing analogue cable infrastructure (e.g. coaxial) or 2-wire line
    • Wide variety of holders for straightforward, cost-efficient installation
    • Power supply: 9.6-14.4 VDC; 19.2-28.8 VAC; video outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS/CVBS)

    Downloads

    General downloads:

    Additional information:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Ceiling Mount Frame
    Ceiling Mount Frame
    Analogue Dome Camera
    Analogue Dome Camera
    Specifications
    AC power supply: 24 V +/-25 % V
    Aperture at minimum illumination (color): 1.2
    Application purpose: General surveillance
    Article program: Professional
    Backlight compensation: True WDR, BLC, HLC
    Camera outputs: 1 x BNC (HD-TVI), 1 x BNC (FBAS)
    Camera type: Dome
    Colour: white
    Compatible with ABUS Link Station: No
    Compatible with Secoris: No
    Compatible with Secvest: No
    Compatible with Smartvest: No
    Compatible with wAppLoxx: No
    Compatible with wAppLoxx Pro: No
    Connections: 1 x BNC (HD-TVI), 1 x BNC (CVBS), 1 x DC/AC (2-Pin)
    Construction type of device: Dome
    Control unit: Coax
    Current consumption: 900 mA
    DC power supply: 12 V +/-25 % V
    Day/night switching: Electromechanical IR cut filter
    Diameter: 145 mm
    Dimensions: (D x H) 145 x 125 mm
    Dynamic range (WDR): 120 dB
    Focal length: 2.8 – 12.0 mm
    Height: 125 mm
    Horizontal viewing angle: 46 - 108 °
    Housing material: Metal
    IR LEDs: Yes
    IR range (up to): 40 m
    Image integration: 16x
    Image optimization: True WDR, BLC, AWB, 3D DNR, Defog, HLC
    Image sensor: 1/1.8" Progressive Scan CMOS
    Language OSD: EN
    Length: 145 mm
    Lens: Motor-Zoom, Autofocus
    Max. Air humidity: 90 %
    Max. Operating temperature: 60 °C
    Max. Resolution @ frame rate: 3840 x 2160 @ 12.5 frames/s
    Min. operating temperature: -40 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.003 lx
    Net weight: 1.007 kg
    Noise suppression: 3D DNR
    Optical zoom: 4.2x
    PSTI conformity needed: No
    Pixels (effective): 3840 x 2160
    Power consumption: 10.5 W
    Privacy zones: 4
    Product group: Camera
    Protection class IK: 10
    Protection class IP: 67
    Radio functions: Motion Detection, Tripwire Detection and Intrusion Detection via DVR
    Radio networked: No
    Resolution: 8 MP
    Resolution modes: 8 MPx @ 12.5fps, 5 MPx @ 20fps, 4 MPx @ 25fps, 1080p @ 25fps
    Video channels HD-TVI: 1
    Video motion detector included: No
    Video system: HD-TVI
    WEEE group: 09
    White balance: auto, manual
    width: 145 mm
