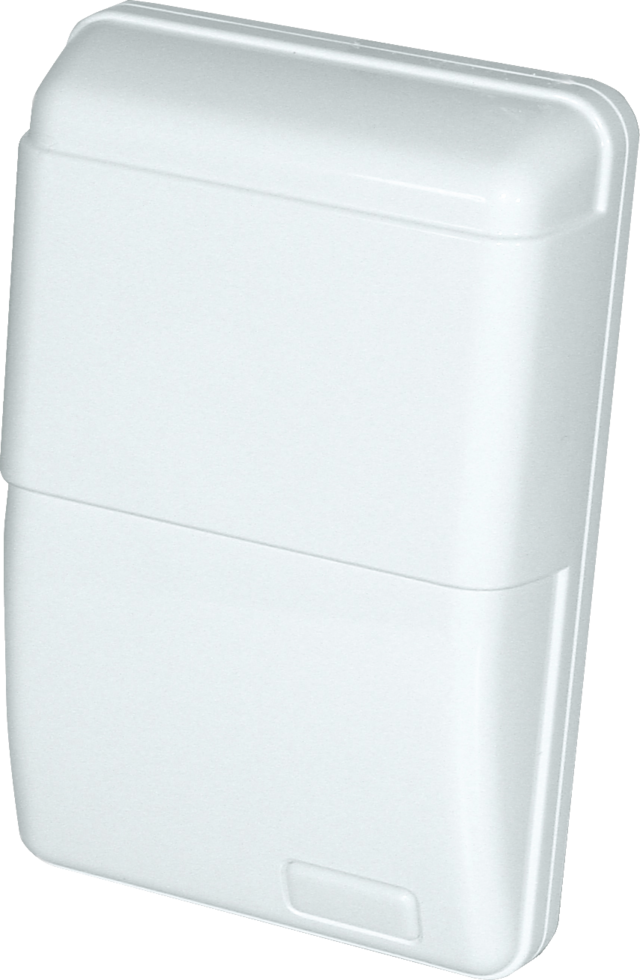

Inside siren front view right

Indoor Siren

Description

The inside siren is installed inside your building. It is the last and critical module of a complete alarm chain. The inside siren is an acoustic signal generator. You have a choice between two alarm modes in this case: A 110 dB alarm and a 90 dB acknowledgement tone. Both signals are felt to be extremely loud due to the high acoustic pressure and the signal frequency. The remotely activated LED of the alarm siren can be used to detect the status of the alarm panel (armed/disarmed). The rugged plastic housing (IP 54) of the acoustic signal generator is protected against sabotage by a wall and cover contact. The inside siren is powered with 12 V.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • LED to display armed/disarmed status
  • Simple, inconspicuous design
  • Selectable volume
  • Low power consumption
  • Impact-resistant housing monitored for tampering
  • Sound pressure: 90 dB (A) – low, 110 dB (A) – high
  • Protection class: IP54

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Battery - max. battery life: 50 y
DC voltage supply: 12 V
Dimensions: (WxHxD) 100x155x48 mm
Height: 155 mm
Housing material: ABS
IP protection class: 54
Installation location: Indoors
Length: 48 mm
Light source: LED
Min. operating temperature: -10 °C
Power consumption: 300 mA
Sabotage monitoring: Yes
Sound pressure: 90/110 dB
Width: 100 mm
