Outdoor Housing with heating and power supply Profiline front view right

Outdoor Housing with Heating and Power Supply

Description

The weatherproof housing offers optimal protection even in extremely adverse environmental conditions, simultaneously securing your camera and protecting it against wind and rain. The waterproof housing features an integrated thermostat, 12 V DC (1.5 A) power supply unit and two 230 V AC heating elements. These heating elements prevent condensation and mist from forming on the window of the housing, ensuring clear pictures no matter the weather. The housing is dust-proof and protected against powerful water jets (IP68), so it can be used in any outdoor environment.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Protection class IP68/IK10
  • Integrated 12 V DC (1.5 A, gross) power supply unit
  • Internal cable routing
  • Two integrated heating elements
  • Suitable for use in any outdoor area

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

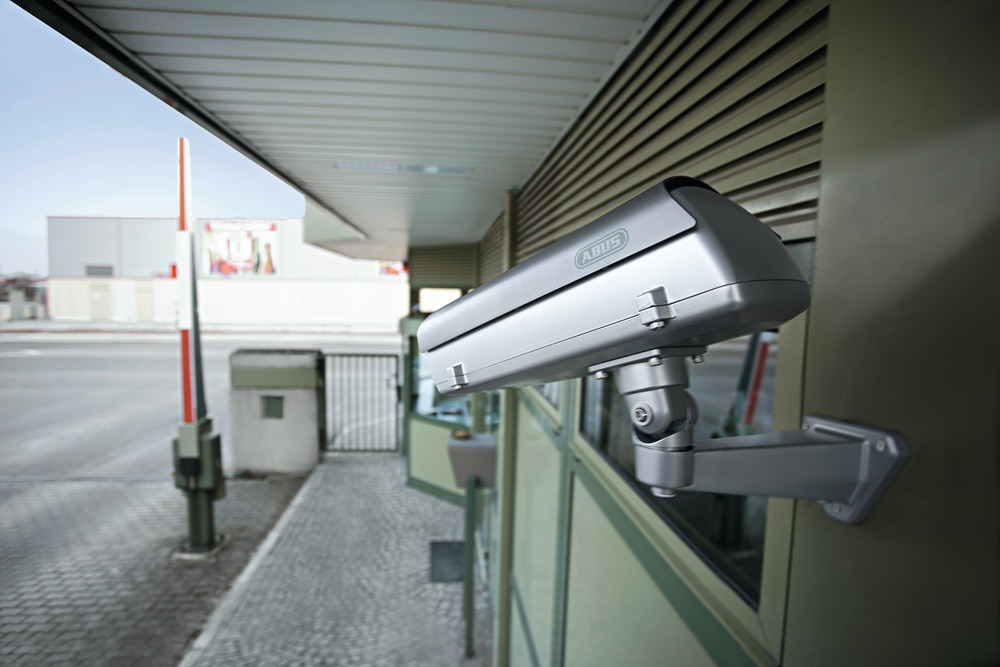

Outdoor Housing with heating and power supply Profiline Example of application
Outdoor Housing with heating and power supply Profiline Example of application
Outdoor Housing with heating and power supply Profiline Example of application
Outdoor Housing with heating and power supply Profiline Example of application
Specifications
AC voltage supply: 230 V
Cabling: internal
Dimensions: (W x H x D) 154 x 123 x 410 mm
Height: 123 mm
Housing material: aluminium
IP protection class: 68
Length: 410 mm
Max. operating temperature: 50 °C
Min. operating temperature: -45 °C
Net weight: 3,4 kg
PSU: 12 VDC / 1,5 A
Power consumption: 30 W
Protection class IK: 10
Tamper protection: Cover switch
Width: 154 mm
