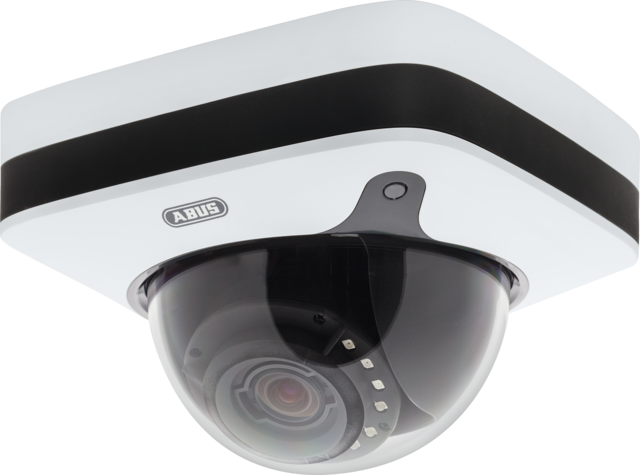

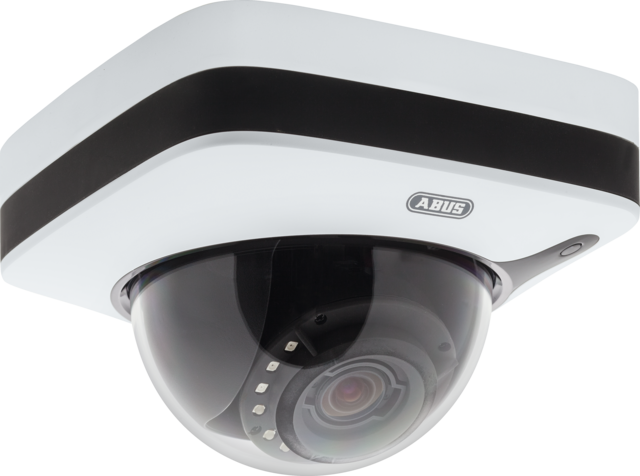

    Outdoor IP Dome IR 1080p (5–50 mm)

    Description

    Special mission: Detailed surveillance of far away objects in challenging light situations
    The IPCA72505, from the Advanced Line of ABUS IP Cameras, is a high-performance outdoor/indoor camera with high-quality hardware components, specially developed for the detailed surveillance of far away objects in challenging light situations.

    True WDR – impressive backlight compensation
    In the entrance areas of hotels, shopping centres and other spacious areas, swift transitions from light to dark make it difficult to properly spot individuals entering the premises. The IPCA72505 features an exceptional True WDR function to compensate for such strong contrasts. Installation is possible at a far distance from the area In high-rise areas, it is often not possible to install the camera close to the surveillance area. The long focal length of the integrated motorised zoom lens of 5–50mm enables a wide choice of installation locations (easy to focus via the network). Images remain razor sharp. For far away objects, wall mounting is required.

    Robust outdoor surveillance 24/7 – with optimum protection thanks to IP67 and IK10
    The dust and waterproof IP67 housing with IK10 shock resistance provides optimum protection against tampering and vandalism. Integrated IR LEDs provide excellent images both during the day and at night. ABUS IP - a strong and complete solution. Accessories such as the tinted dome for covert surveillance and the large range of mounting brackets mean that the dome cameras are suitable for any application.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Full HD 1080p resolution: 1920 x 1080 px @ 30 fps
    • Ready for use around the clock: excellent image quality in the evening and at night thanks to the new Light-sensitive Sony Starvis Exmor R Image Sensor and Integrated IR LEDs
    • Challenge met: the outstanding True WDR function (> 120 dB) of the Sony Xarina DSP and Sony Starvis Exmor R Image Sensor means better images in backlit situations
    • Simplified installation: thanks to the motorised zoom lens (5–50 mm)
    • Double the security: 16 GB internal memory to store recordings even in the event of a network failure
    • Well protected against vandalism (IK10) as well as dust and water (IP67)

    Downloads

    General downloads:

    Additional information:

    Software:
    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Alarm generation: E-Mail, FTP, relay
    Alarm input (NO/NC): 1
    Alarm output: 1
    Aperture at minimum illumination (color): 1.6 - 1.8
    Audio: 2-Way Audio (Browser)
    Backlight compensation: True WDR
    Camera outputs: 1 x BNC (CVBS)
    Certifications: CE, C-Tick, RoHS, Reach
    Colour: RAL9003
    Compatible with: NVR, Hybrid DVR, IPCam Plus
    Compatible with ABUS Link Station: No
    Compatible with Secvest: No
    Compatible with wAppLoxx: No
    Compatible with wAppLoxx Pro: No
    Connections: 1 x RJ45, 1 x DC, 1 x CVBS (int.), Opt.: 1 x Alarm input, 1 x Alarm output, 1 x Audio In, 1 x Audio Out, 1 x CVBS
    Construction type of device: Dome
    Current consumption: 600 mA
    DC power supply: 12 (+/-10 %) V
    DSP: Sony Xarina
    Day/night switching: ICR/Color/B/W
    Dimensions: (LxWxH) 141x141x102 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/25 s – 1/10000 s
    Encryption: HTTPS
    Focal length: 5.0 – 50.0 mm
    Frame rate: 2, 5, 10, 12, 15, 25, 30
    Height: 102 mm
    Horizontal viewing angle: 7 – 68 °
    ICR day/night function: Yes
    IR LEDs: Yes
    IR range (up to): 20 m
    Image integration: Yes
    Image optimization: True WDR
    Image sensor: 1/2.8" Sony Exmor R™ STARVIS™ CMOS
    Language Manual: DE, UK, FR, NL, DK
    Language OSD: DE, UK, FR, NL, DK
    Length: 141 mm
    Lens: Motor-Zoom
    Max. Air humidity: 85 %
    Max. Operating temperature: 60 °C
    Max. Resolution @ frame rate: 1920 x 1080 @ 30 fps
    Microphone: No
    Min. operating temperature: -25 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.02 lx
    Minimum lighting (B/W): 0.008 lx
    Motion detection: 3 zones
    Net weight: 1.05 kg
    Network bandwidth Video: 256 kBit/s - 8 MBit/s
    Network camera protocols: IPv4, IPv6, HTTP, HTTPS, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, ABUS Server
    Network connection: RJ45
    Network connection LAN: RJ45
    Noise suppression: 3D DNR
    Number of IR LEDs: 10
    Number of streams: 3
    Number of users: 10
    Optical zoom: 10 x
    Pan/tilt range: 350°(H)/65°(V)
    Pixels (effective): 1920(H) x 1080(V)
    PoE Standard: IEEE 802.3af
    Privacy zones: 3
    Protection class IK: 10
    Protection class IP: 67
    Radio functions: Viewing direction of the lens can be manually adjusted in all directions
    Relay output: 1
    Resolution: 2MPx
    Resolution modes: 1080p, 720p, VGA, CIF
    Simultaneous network access: Yes
    Storage medium: microSD card, 16 GB (Opt. 128 GB)
    Supported browsers: IE10, IE11
    Video compression: H.264, MJPEG
    Video system: IP
    WEEE group: 09
    White balance: ATW
    width: 141 mm
