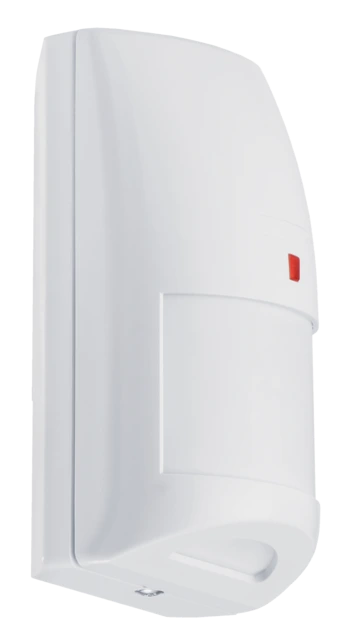

    Wired Motion Detector

    Pet immune Motion Detector

    Product advantages

    • One PIR element
    • A dog under 30kg does not trigger an alarm
    • Detection range: 12 x 12m
    • Aperture angle: 90°, ideal for corner mounting

    Downloads

    General downloads:

    Declarations of conformity:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Animal immune: Yes
    Connections: NC, 100 mA, 24 V DC
    Cover monitoring: No
    Current consumption: 9 mA
    DC power supply: 9-16 V
    Depth: 48 mm
    Detection area detector (m): 12x12 m
    Detection method: Heat detection
    Dimensions: (WxHxD) 60x107x48 mm
    Display type: Yes
    Height: 107 mm
    Housing material: ABS
    Length: 48 mm
    Max. Operating temperature: 55 °C
    Mechanical protection: No
    Mounting location: Wall
    Net weight: 0.08 kg
    Power consumption: 0.081 W
    Product group: Detectors
    Pulse selector switch: Yes
    Sensor type: Dual PIR
    Status display: Yes
    Tamper monitoring: 1
    Type of protection: Intrusion protection
    VdS class: none
    WEEE group: 09
    White light filter: 1
    width: 60 mm
