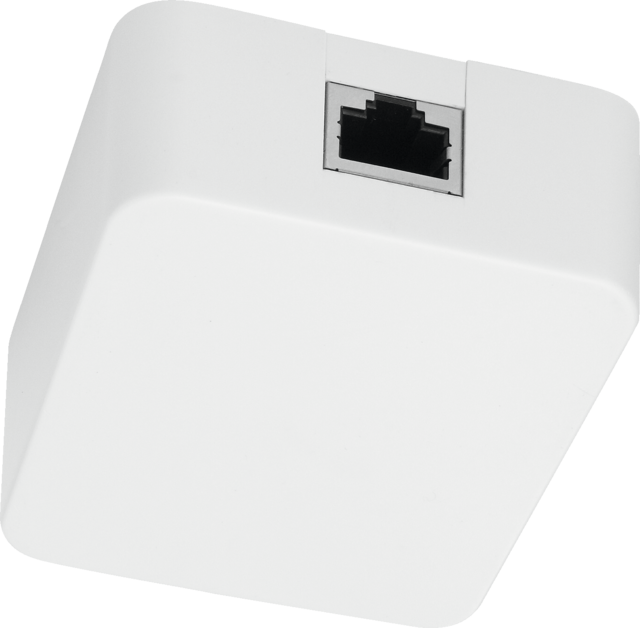

PoE Splitter 5 V DC / 1 A front view right

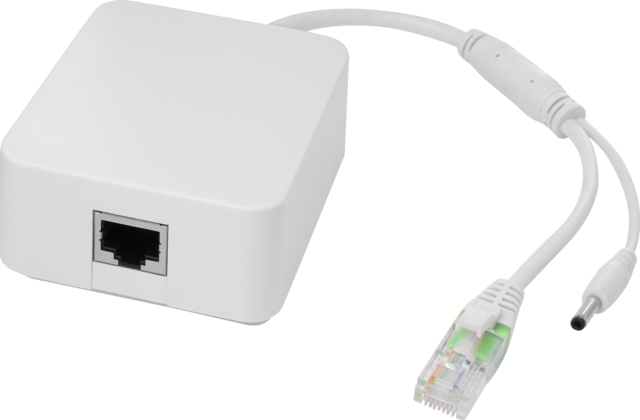

PoE Splitter 5 V DC / 1 A front view
PoE Splitter 5 V DC / 1 A front view left

PoE Splitter 5 V DC / 1 A

Description

This PoE Splitter (Power over Ethernet splitter) enables the supply of power to 5 V DC network end devices, such as ABUS network cameras, which are not PoE compatible and instead use CAT5/CAT6 cables. This is particularly advantageous in areas without power sockets.

Product advantages

  • Power and data transmission for 5 V DC network end devices that are not PoE compatible
  • Distributes the power and data signals of the ABUS 4 Channel Network Video Recorder (TVVR36000) to the ABUS Wi-Fi HD 720p Pan/Tilt Indoor Camera (TVIP21560)
  • Fulfils the requirements of IEEE standard 802.3af
  • Compact construction
  • Plug & Play

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Connection cable length: 0,3 cm
Data output: 10/100 MB/s
Dimensions: (LxWxH) 73 x 63 x 29 mm
Height: 29 mm
Input: 1xRJ-45 (PoE, data & voltage)
Input voltage AC: 48 V DC
Length: 73 mm
Max. humidity: 90 %
Max. operating temperature: 60 °C
Min. operating temperature: -10 °C
Net weight: 0,175 kg
Output: 1x RJ-45, 1x DC
Output power: 10 W
Output voltage AC: 5 V DC
PSTI conformity required: No
PoE standard: 802.3af
Width: 63 mm
