    Relay Board

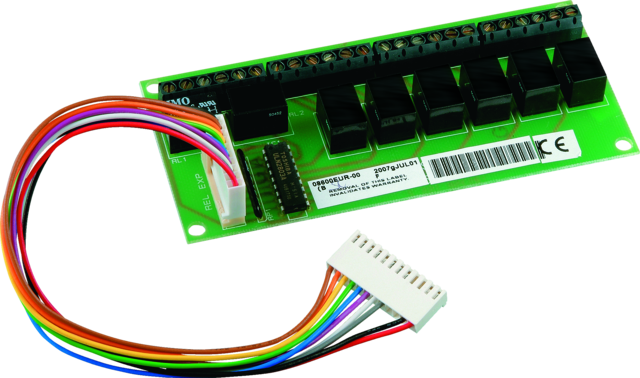

    Relay Board for Terxon SX/MX, 8 Outputs

    Description

    The relay board with 8 outputs is an extension module for the Terxon SX and the Terxon MX. Eight powerful relay switching outputs are thus provided to the alarm system. On the motherboard of the Terxon SX, there are 3 transistor switching outputs (with a max. 0.5 A switching capacity), the Terxon MX comes with 1 transistor and 2 relay switching outputs. These switching outputs can be activated by specific events (alarm, fire, or robbery). The board also has 8 additional transistor outputs, with a maximum switching capacity of 0.05 A each. These additional transistor outputs are used by the relay module. Instead of 8 x 0.05 A, you get 3 A per relay with this board. This increases your options for defining outputs. The wiring is carried out with NO or NC contacts.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Terxon Relay Board

    Product advantages

    • Expands the alarm panel with 8 high-performance relay switching outputs
    • Increases the switching power of the 8 additional transistor outputs to 8 × 3 A

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Terxon Relay Board
    Terxon Relay Board
    Specifications
    Dimensions: (WxHxD) 130x60x20 mm
    Height: 135 mm
    Length: 40 mm
    Mechanical protection: No
    Net weight: 0.1 kg
    Outputs: 8 relay outputs NO/NC, potential free
    PSTI conformity needed: No
    VdS class: without
    WEEE group: 09
    width: 200 mm
