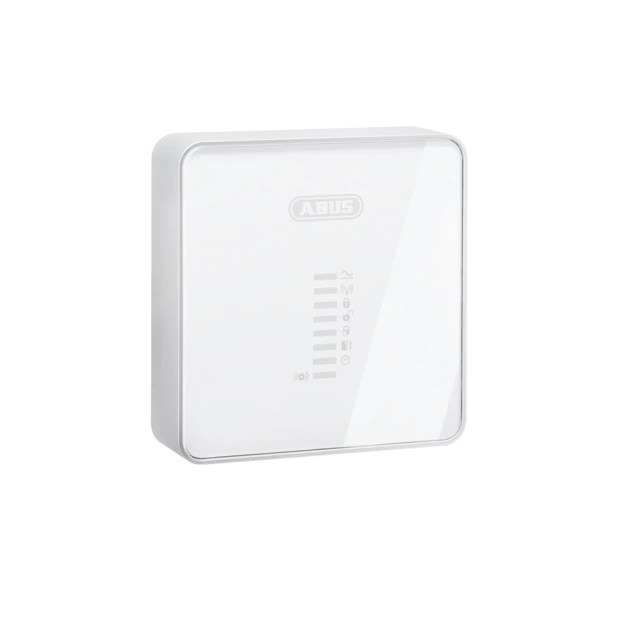

    Secvest 2WAY Wireless Info Module

    Product advantages

    • Provides information on Secvest 2WAY status
    • 8 LED indicators
    • Different signal and alarm tones
    • Integrated piezo signal generator
    • Supplied externally with 12 V

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Secvest Wireless Info Module
    Secvest Wireless Info Module
    Specifications
    Connections: 12V
    Current consumption: 53 mA
    DC power supply: 9-14 V
    Dimensions: (WxHxD) 124x124x40.7 mm
    Display type: 8 LEDs of different colors
    Environmental class: II
    Height: 124 mm
    Housing material: ABS
    Integrated siren: 1
    Length: 40.7 mm
    Max. Air humidity: 96 %
    Max. Operating temperature: 55 °C
    Max. Receive range (building): 30 m
    Max. Receive range (free field): 100 m
    Min. operating temperature: -10 °C
    Modulation: FM
    Mounting location: Indoors
    Net weight: 0.2 kg
    PSTI conformity needed: No
    Power consumption: 0.48 W
    Protection class IP: 54
    Radio frequency: 868.6625 MHz
    Security gradient: 2
    Sound pressure: 110 dB
    WEEE group: 09
    width: 124 mm
