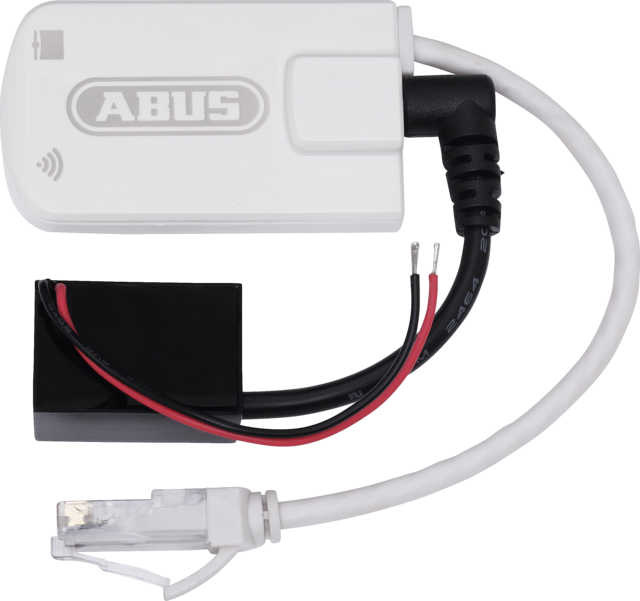

Secvest Wi-Fi-module
Secvest Wi-Fi-module

Secvest Wi Fi module

Description

Wireless connection to the home network
The Secvest Wi-Fi module is an optional accessory for the Secvest wireless alarm system. It enables the wireless integration of the Secvest wireless alarm system into the local Wi-Fi network. A LAN cable no longer needs to run the distance between the alarm panel and the Wi-Fi router. As a result, flexible location-independent installation can be implemented. Easy integration and quick access
The Wi-Fi module is a small, high-performance module inserted into the housing of the alarm panel. The Wi-Fi module is supplied directly with power by the alarm panel. Via its very own intuitive web interface the module can be easily accessed at any time.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Wireless integration of the Secvest wireless alarm system into the home network
  • Enables the installation of the alarm panel regardless of the location of the Wi-Fi router
  • Easy integration of the Wi-Fi module in or underneath the housing of the alarm panel
  • 12 V of power supplied via the alarm panel

Downloads

General downloads:

Declarations of conformity:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Backup power supply: No
Battery - type: no
Connections: Ethernet RJ-45
DC voltage supply: 5 V
Dimensions: (WxHxD) 350x590x110 mm
Display: Without
Encryption: 64/128/WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2
Height: 590 mm
Installation location: Fitting
LAN network access: 1
Language of instructions: DE, EN, FR, NL, DK, IT
Length: 110 mm
Max. humidity: 93 %
Max. operating temperature: 55 °C
Min. operating temperature: -10 °C
Net weight: 0,42 kg
OSD language: DE, EN
Operation: Via its own web interface
Power consumption: 220 mA
Radio frequency: 2.400 MHz
Radio power: 100 mW
Sabotage lines: 0
Sabotage monitoring: No
Width: 350 mm
