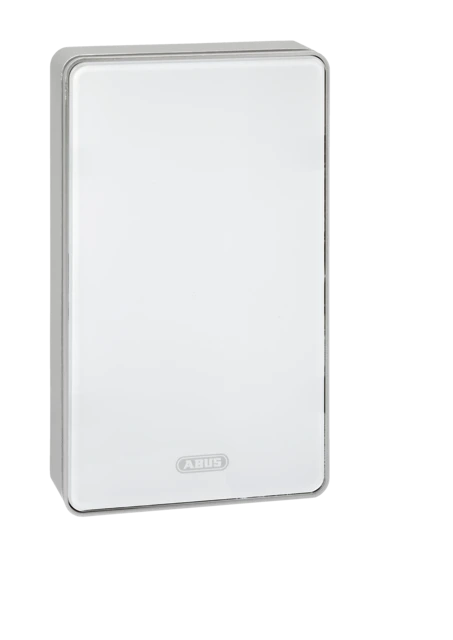

Secvest Wireless Indoor Sounder right view

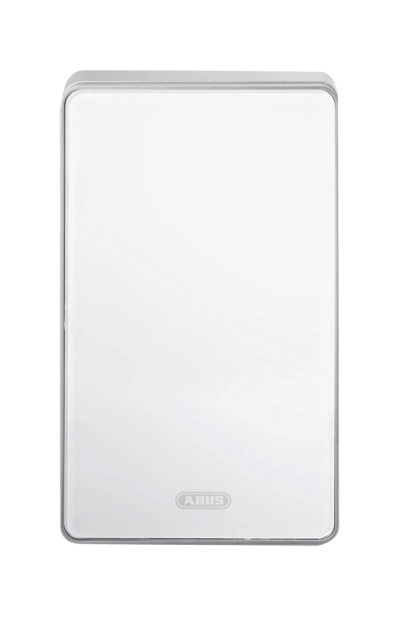

Secvest Wireless Indoor Sounder front view

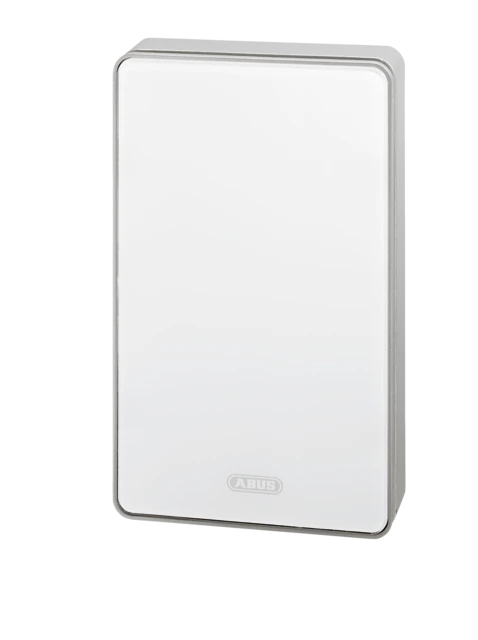

Secvest Wireless Indoor Sounder left view

Secvest Wireless Indoor Siren

Description

Reliable warning for indoor areas
The Secvest wireless indoor sounder is an optional Secvest accessory. As a purely acoustic sounder, it supports the wireless outdoor sounder and Secvest alarm panel with a signal tone of 90 dB sound pressure in the event of an alarm. The sounder and alarm panel communicate at 868.6625 MHz, a wireless frequency exclusively reserved for the security industry. The wireless indoor sounder can be powered by battery or a power supply unit. If batteries are used, the sounder has a service life of approx. 2 years. The sounder indicates when the battery life is coming to an end.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Designed to support of the alarm panel and wireless outdoor sounder acoustically
  • Loud sounder (90 dB(A)@1 m)
  • 12 V external power supply for operation without batteries (optional)
  • Any number of indoor sirens can be integrated into the Secvest wireless alarm system

Downloads

General downloads:

Declarations of conformity:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

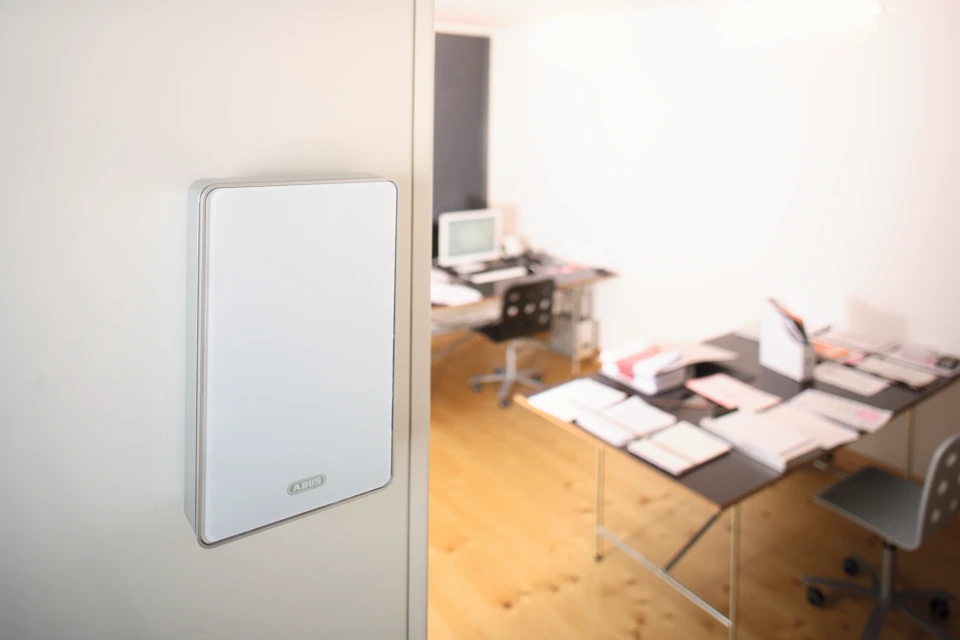

Secvest Wireless Indoor Siren Example of application
Secvest Wireless Indoor Siren Example of application
Specifications
Battery - max. battery life: 2 y
Battery - type: 3x 1.5V LR20 battery
Connections: 12V
DC voltage supply: 4,5/12 V
Dimensions: (WxHxD) 122x208x60 mm
Environmental class: II
Height: 208 mm
Housing material: ABS
IP protection class: 40
Installation location: Indoors
Length: 60 mm
Max. humidity: 75 %
Max. operating temperature: 50 °C
Max. receiving range (building): 30 m
Max. receiving range (free field): 100 m
Min. operating temperature: -10 °C
Modulation: FM
Net weight: 0,984 kg
PSTI conformity required: No
Radio frequency: 868,6625 MHz
Sound pressure: 90 dB
Voltage monitoring: Yes
Width: 122 mm
