    Description

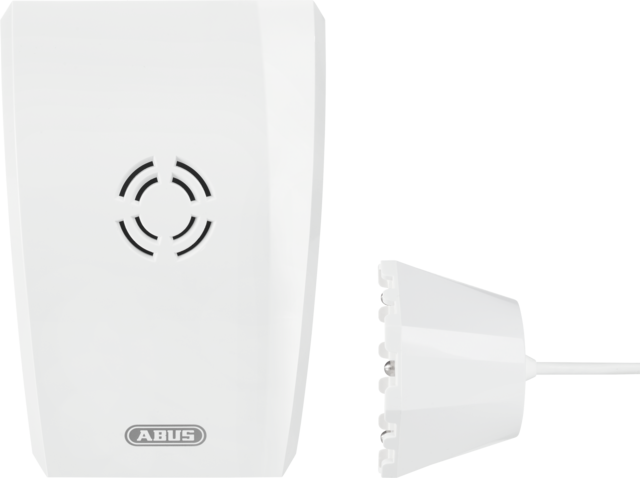

    The Smartvest Wireless Water Detector is an extension module of the Smartvest Wireless Alarm System. It reacts to water and other liquids and signals these events to the wireless alarm control panel. The Smartvest Wireless Water Detector consists of a transmitter and a sensor. These two units are connected via a cable that can be up to 1,8 metres long. The sensor reacts to water and reports it to the alarm control panel. Water leaking from broken pipes or from burst washing machine hoses is detected quickly so that quick action can be taken to reduce the damage.

    Product advantages

    • Detects liquids and reliably protects against water damage.

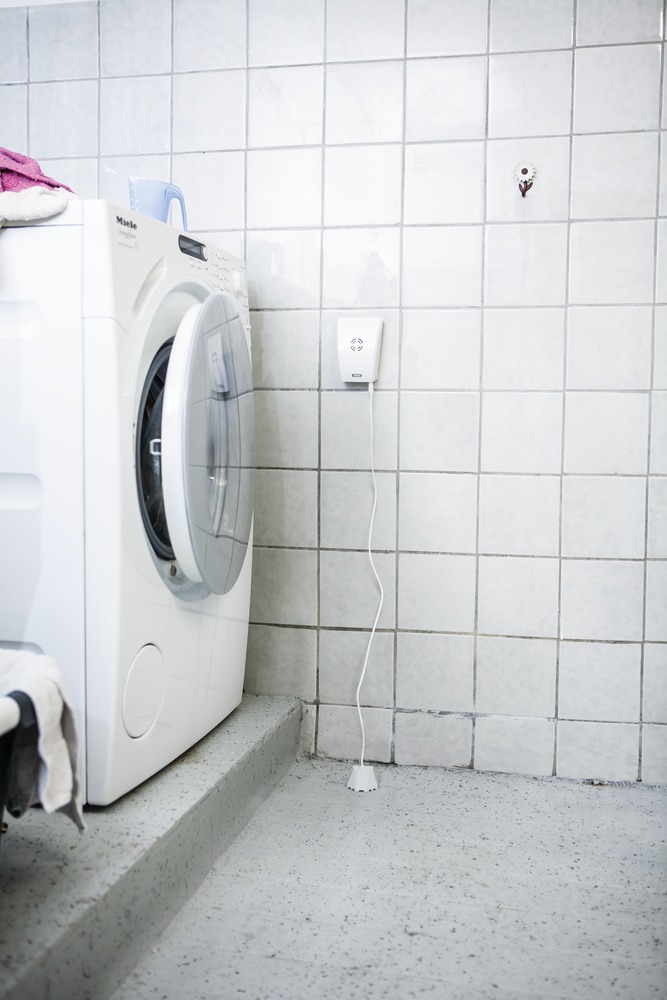

    • Ideal for monitoring cellars, washing machines, and drains.
    • Flexible installation of water level sensor. (Length of sensor line: 1.8 m)
    • Immediate triggering of alarms with the built-in high-volume 90 dB siren
    • Low battery notification sent to the Smartvest alarm control panel
    • Test button for manual self-testing and test alarms

    Downloads

    General downloads:

    Declarations of conformity:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Smartvest Wireless-Flood Detector
    Smartvest Wireless-Flood Detector
    Specifications
    Alarm generation: Acoustic warning signal
    Areas of application: Inside
    Battery - battery operation: Yes
    Battery - max. battery life: 2 years(s)
    Battery - permanently installed: No
    Battery - quantity: 4
    Battery type: AA (1,5V)
    Colour: White
    Compatible with Secvest: No
    Compatible with Smartvest: Yes
    Current consumption: 34.3 mA
    Current consumption standby: 0.017 mA
    DC power supply: 6 V
    Depth: 37 mm
    Detection method: Resistance measurement
    Dimensions: (B x L x H) 87 x 37 x 120 mm
    Display type: LED
    Gross weight: 0.31 kg
    Height: 120 mm
    Housing material: Plastic
    Max. Air humidity: 93 %
    Max. Operating temperature: 40 °C
    Min. humidity: 10
    Min. operating temperature: 0 °C
    Mounting type: Other
    Net weight: 0.31 kg
    PSTI conformity given: No
    PSTI conformity needed: Yes
    Product group: Detectors
    Radio frequency: 868 MHz
    Radio modulation: FSK
    Radio range: (Depending on installation) 30 - 100 m
    Sensor type: Contact sensor
    Sound pressure: 90 dB
    Tamper protection: No
    Transmission power: 4,5 dBm
    WEEE group: 09
    width: 87 mm
