    Wired Motion Detector
    Wired Motion Detector

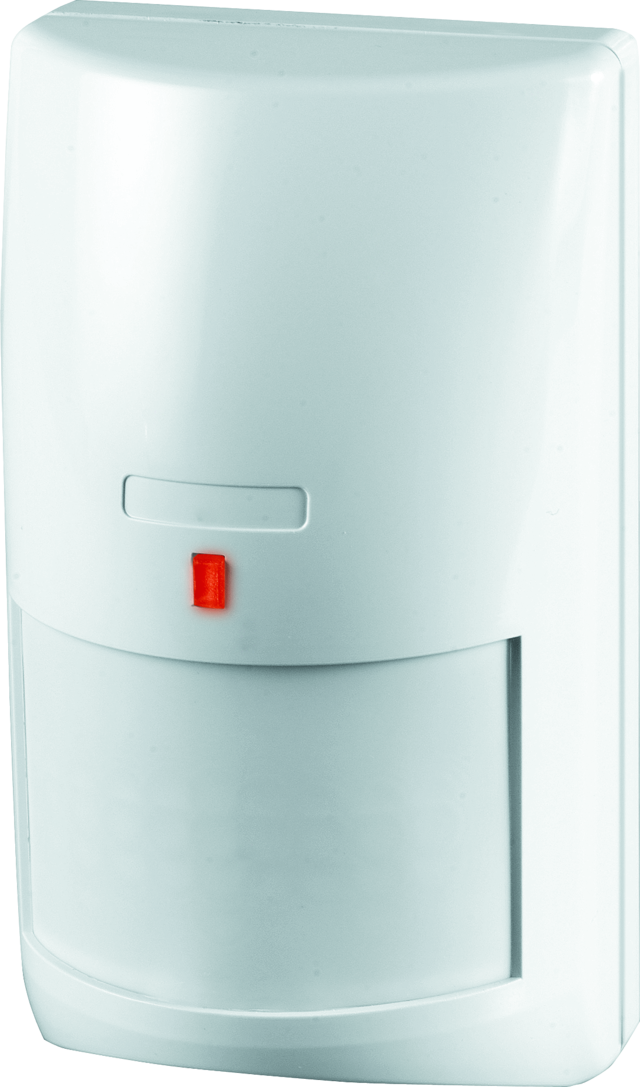

    Triplex MW Motion Detector

    Product advantages

    • Passive infrared motion detector with microwave element for indoor areas
    • Two logical AND-gated PIR sensors and a microwave element

    Downloads

    General downloads:

    Certificates:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Adjustable sensitivity: Yes
    Alarm memory: Yes
    Connections: NC, 100 mA, 24 V DC
    Cover monitoring: No
    Creep protection: Yes
    Current consumption: 13 mA
    DC power supply: 9-16 V
    Depth: 48 mm
    Detection area detector (m): 15 m
    Detection method: Heat detection, Doppler effect
    Dimensions: (WxHxD) 60x107x48 mm
    Display type: Yes
    Height: 107 mm
    Housing material: ABS
    Length: 48 mm
    Max. Operating temperature: 55 °C
    Mechanical protection: No
    Mounting location: Wall
    Mounting type: Surface mounting
    Net weight: 0.109 kg
    PSTI conformity needed: No
    Power consumption: 0.117 W
    Product group: Detectors
    Pulse selector switch: Yes
    Radio frequency: 9,350 MHz
    Radio power: 20 mW
    Sensor type: 2 x dual PIR, microwave element
    Status display: Yes
    Tamper monitoring: 1
    Type of protection: Intrusion protection
    VdS class: without
    WEEE group: 09
    White light filter: Yes
    width: 60 mm
