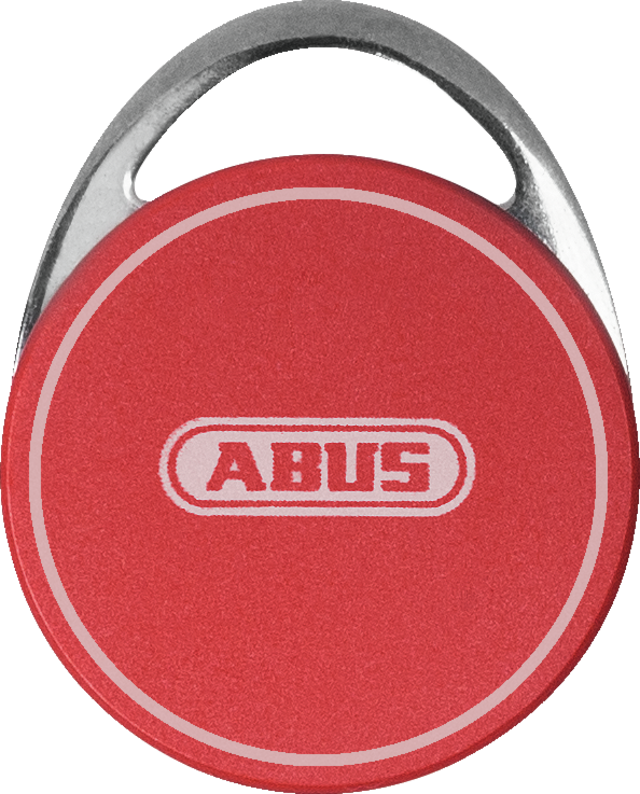

WLX Transponder red Mifare DESfire EV1 (4K Security)

ABUS Transponder red MIFARE DESFire EV1 4K (Security)

Access and operation for authorised persons only: RFID transponder (digital key) as locking medium for ABUS locking systems or operating element for security systems.

Description



Contactless locking medium
The battery-free RFID key fob is the locking medium for ABUS access control systems and other ABUS security systems with MIFARE® DESFire® technology.

Universally applicable
The RFID transponder serves as a locking medium for all wAppLoxx and TECTIQ systems. It also enables the operation of ABUS security systems, such as the Secoris intruder alarm system. Thanks to its robust design, the key fob is suitable for indoor and outdoor use (IP68). As a passive transponder, it does not require a battery.

Secure ease of use
Thanks to 13.56 MHz RFID technology, these ABUS systems can be operated conveniently, securely readout-protected and contactless. The pre-programmed ABUS "security application" also guarantees maximum protection against copying and tampering based on MIFARE® DESFire® EV1 4K technology.

Desired colour variant?
The key fob is available in green, blue, red, black or white.

Product advantages

  • Attractive RFID key fob with stainless steel mounting bracket (MIFARE® DESFire® EV1 4K)
  • Contactless opening of all ABUS wAppLoxx and TECTIQ door components (cylinders, fittings, wall readers, etc.)
  • Operation of other ABUS security systems, e.g. Secoris burglar alarm system
  • Maximum copy and tamper protection with pre-programmed ABUS security application
  • Robust design for long-lasting use on key rings (resists dust, dirt and moisture)
  • Simple assignment of transponder to personthanks to serial number on the back
  • Passive transponder without battery
  • Robust nature
  • Colour: red

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

WLX Transponder red Mifare DESfire EV1 (4K Security)
WLX Transponder red Mifare DESfire EV1 (4K Security)
Specifications
Area of application: Locking medium for ABUS access control systems (wAppLoxx & TECTIQ)
Colour: red
Design: Keyfob
Dimensions: 36,5 x 45,3 x 5,5 mm
Gross weight: 0,09 kg
Height: 45,3 mm
IP protection class: 64
Item abbreviation: T-MIF-DES-4K Security-R
Material: Novodur (body), polished stainless steel (frame)
Max. operating temperature: 50 °C
Min. operating temperature: -20 °C
Net weight: 0,06 kg
PSTI conformity required: No
Programming technology: RFID (13,56 MHz)
RFID conformity: ISO 14443
RFID frequency: 13,56 MHz
RFID technology: MIFARE® DESFire® EV1
Reader type: MIFARE® DESFire® 4K EV1 (70pf)
Security features: Copy and read protection with MIFARE® DESFire® + ABUS security application and Random ID
Transponder conformity: Passive transponder ISO 14443 A (MIFARE® DESFire®)
Transponder encryption: AES 128-Bit
Transponder programming: Access control software and card reader
Width: 36,5 mm
