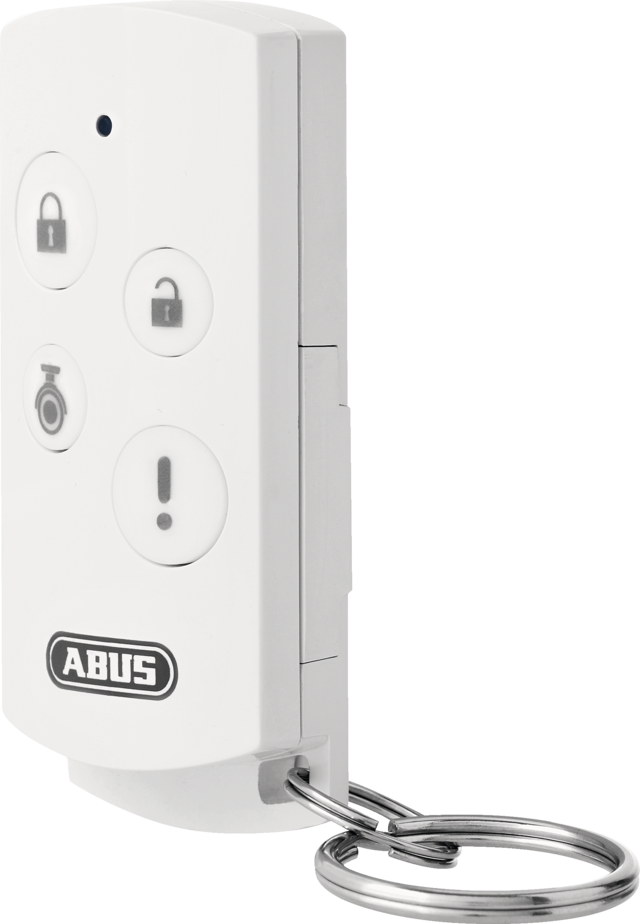

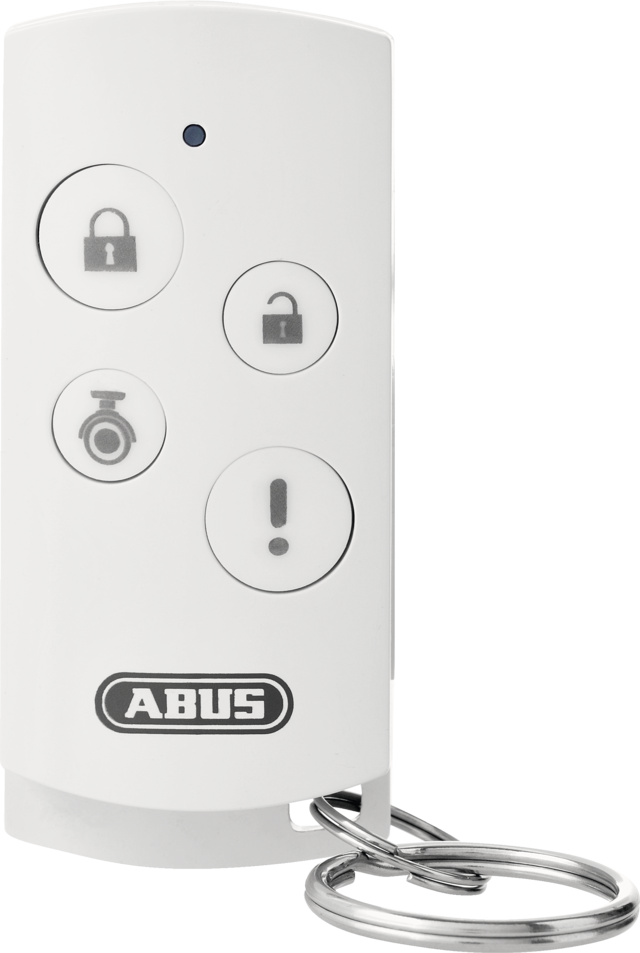

Smartvest Wireless Remote Control

Description

FUBE35001A Arm and disarm with the push of a button

In addition to the smartphone and tablet option, the Smartvest Wireless Remote Control offers you another streamlined and convenient option for operation – at the push of a button, without the need for a PIN code. With this option, you can both arm and disarm the Smartvest or, in an emergency, trigger a panic alarm at the touch of a button. Using the app, the button can also be configured so that certain cameras or the siren are activated when the buttons are pressed. The Smartvest Wireless Remote Control thus provides basic control options in a compact and handy form ensuring it is simple and intuitive to use.

Remark:
The Smartvest Wireless Remote Control is protected against so-called replay attacks by an integrated security mechanism. All switching commands to the Smartvest alarm panel are individualized and thus not reproducible by unauthorized third parties.

Product advantages

Smartvest extension for operation without a mobile device
Immediate operation at the push of a button and with no need for a PIN code
Buttons for arming and disarming the Smartvest
Panic alarm that can be triggered at the push of a button
Individual configuration of buttons to automatically activate additional components (cameras, sirens, etc.) simultaneously
Visual feedback via blue LED
Low battery notification sent to the Smartvest alarm control panel
Small, portable and easy to use
Security-mechanism for protection against Replay-attacks

Downloads

General downloads:

Declarations of conformity:

CE Declaration of Comformity

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Battery - battery operation:	Yes
Battery - max. battery life:	2 years(s)
Battery - quantity:	1
Battery type:	CR2032 (3V)
Colour:	White
Compatible with Secvest:	No
Compatible with Smartvest:	Yes
Current consumption:	15 mA
Current consumption standby:	0.005 mA
Depth:	14 mm
Dimensions:	(B x L x H) 30 x 14 x 60 mm
Display type:	LED
Gross weight:	0.056 kg
Height:	60 mm
Housing material:	Plastic
Max. Air humidity:	80 %

Max. Operating temperature:	40 °C
Min. humidity:	10
Min. operating temperature:	0 °C
Mounting type:	Other
Net weight:	0.022 kg
PSTI conformity given:	No
PSTI conformity needed:	Yes
Product group:	Detectors
Radio frequency:	868 MHz
Radio modulation:	FSK
Radio range:	(Depending on installation) 30 - 100 m
Transmission power:	4,5 dBm
WEEE group:	09
width:	30 mm

Required accessories
