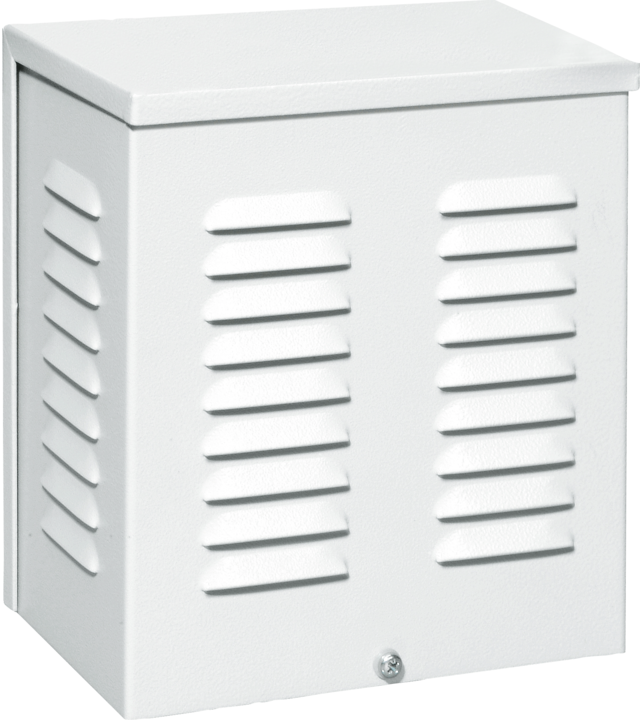

Compact alarm system, siren front view right

Acoustic Signal Transmitter

Description

You can install the compact alarm system siren inside and outside of your building. This professional signalling unit is the critical module of a completely functioning alarm chain. The compact alarm system siren is an acoustic signal generator. When an alarm is triggered, it generates an extremely loud signal tone with more than 110 dB of acoustic pressure. The weather-proof aluminum housing (IP 34) of the alarm siren is protected against sabotage by a wall and cover contact and by an additional inside grating. The siren is powered with 12 V (external). The maximum current consumption is 350 mA.

Product advantages

  • Robust siren in aluminum housing
  • Extremely loud 110 dB (A) @ 1 m
  • Siren and optional flash light can be controlled separately
  • Sabotage-monitored

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

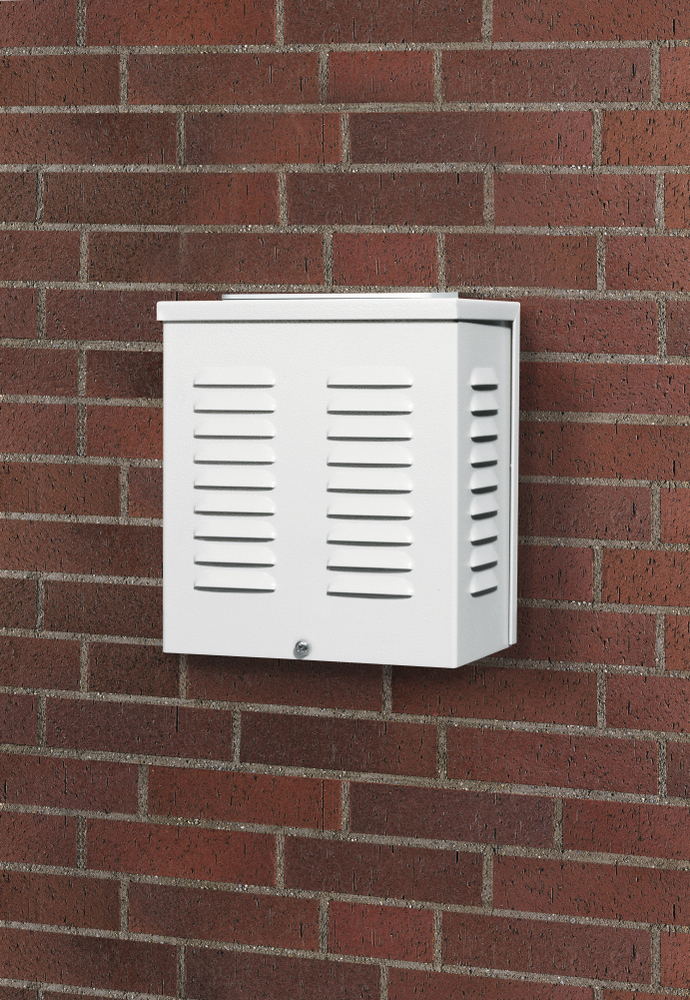

Compact alarm system, siren Example of application
Compact alarm system, siren Example of application
Specifications
DC voltage supply: 12 V
Dimensions: (WxHxD) 190x210x115 mm
Height: 210 mm
Housing material: Aluminium
IP protection class: 34
Installation location: Indoors and outdoors
Length: 115 mm
Max. operating temperature: 55 °C
Min. operating temperature: -25 °C
PSTI conformity required: No
Power consumption: 340 mA
Sabotage monitoring: Yes
Sound pressure: 110 dB
Width: 190 mm
