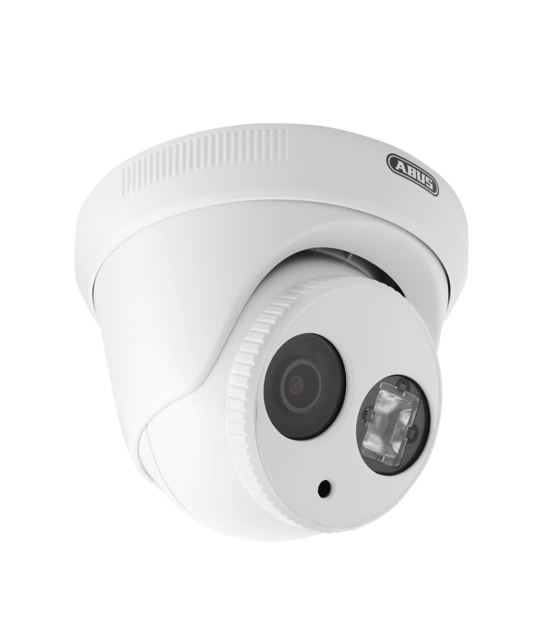

    Analogue Dome Camera
    Analogue Dome Camera
    Analogue Dome Camera

    Analogue HD 1080p Outdoor Dome Camera

    Description



    Reliable data transmission at high resolution
    Analogue HD cameras offer the best of both worlds, providing secure, problem-free transmission – knowledge of IPs not required – via analogue combined video cable, and also HD resolution with 1080p at 25 frames per second, a performance otherwise only attributed to megapixel cameras from IP technology. And all of this at attractive value for money.

    Weatherproof surveillance around the clock
    The dome camera is installed in a robust housing with IP66 protection class and is therefore ideal for outdoor use in all kinds of weather. The integrated High-power IR LED and automatic day/night switching provide reliable surveillance day and night. The integrated noise reduction also ensures that the camera produces sharp images even in low lighting conditions.

    Easy commissioning
    Thanks to the supplied combined cable and plug-and-play installation, the camera can be mounted on the ceiling or wall and started up immediately. Even existing BNC cabling can be used.

    The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

    Product advantages

    • Detailed high resolution, with 1920 x 1080 pixels at 25 images per second
    • Sturdy weatherproof camera housing (IP66)
    • High-power IR LED for night vision, range up to approx. 20 m
    • Intelligent IR for clear images without over-illumination
    • Automatic day/night switching
    • Can be mounted on ceilings and walls
    • Including 1 x 30 m combined video cable (video signal + power supply)
    • Plug-and-play installation and connection using a BNC connector, including for existing analogue cables
    • Features WDR function for backlight compensation – ideal for entrance areas
    • Noise reduction (DNR) for clear images even at low light levels

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Amplifier control: AGC
    Backlight compensation: True WDR, HSBLC, BLC
    Camera outputs: 1x BNC (HD-TVI), 1x BNC (FBAS, Service)
    Certifications: CE, RoHS, Reach
    Colour: white
    Connections: Video signal (HD-TVI, BNC), video signal (FBAS, BNC), power supply
    Control unit: ABUS-C (on-screen display, control via coax)
    DC power supply: 12, +/-15 % V
    Day/night switching: Electromechanical IR cut filter
    Depth: 115 mm
    Diameter: 115 mm
    Digital zoom: Yes
    Dimensions: (ØxH) 114,6 x 89,1 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/25 – 1/50000 s
    Focal length: 2,8 mm
    Height: 89 mm
    Horizontal viewing angle: 103,5 °
    IR LEDs: Yes
    IR range (up to): 20 m
    Image integration: 2x - 16x
    Image sensor: 2 MP CMOS Image Sensor
    Language Manual: English, German, French, Dutch, Danish, Italian, Polish, Spanish, Swedish
    Language Packaging: English, German, French, Dutch, Danish, Italian, Polish, Spanish, Swedish
    Max. Air humidity: 90 %
    Max. Operating temperature: 60 °C
    Max. Resolution @ frame rate: 1080p @ 25 frames/s (50 Hz) / 1080p @ 30 frames/s (60 Hz)
    Min. operating temperature: -20 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.1 lx
    Minimum lighting (B/W): 0.01 lx
    Net weight: 1.08 kg
    Noise suppression: 2D DNR, 3D DNR
    PSTI conformity needed: No
    Picture elements (total): 1944 x 1092
    Pixels (effective): 1920 x 1080
    Power consumption: 4 W
    Privacy zones: 8
    Protection class IP: 66
    Radio functions: Defog, D-Zoom, Smart D-Zoom, DPC, camera title
    Resolution modes: 1080p
    Signal-to-noise ratio: > 62 dB
    Video system: HD-TVI
    WEEE group: 09
    White balance: ATW
    width: 115 mm
