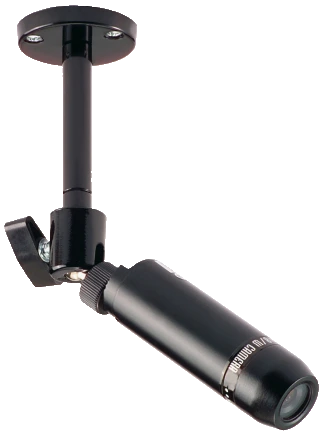

    Mini Camera

    Color Mini Outdoor Camera

    Product advantages

    • 1/4 SONY Super HAD CCD
    • 330 TV lines
    • 3.6 mm lens
    • IP 66, waterproof
    • For use without a waterproof housing

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Amplifier control: AGC
    Aperture at minimum illumination (color): 2.0, 50
    Backlight compensation: BLC
    Camera type: Mini Outdoor Camera / Colour
    Certifications: CE
    Current consumption: 120 mA
    DC power supply: 12 V
    DSP: Yes
    Dimensions: (HxØ) 28 x 89,5 mm
    Electronic shutter: 1/50 - 1/110000
    Focal length: 3,6 mm
    Height: 28 mm
    Horizontal viewing angle: 52 °
    Image sensor: 1/4" Sony Super HAD
    Lens: 3,6
    Max. Air humidity: 85 %
    Max. Operating temperature: 50 °C
    Min. operating temperature: -10 °C
    Minimum illumination (color): 0.5 lx
    Net weight: 0.255 kg
    Picture elements (total): 500(H) x 582(V)
    Protection class IP: 66
    Signal-to-noise ratio: 48 dB
    Synchronization: Internal
    TVL: 330
    Video output: FBAS (1 Vss, 75 Ohm)
    WEEE group: 09
    White balance: AWB
    width: 90 mm
