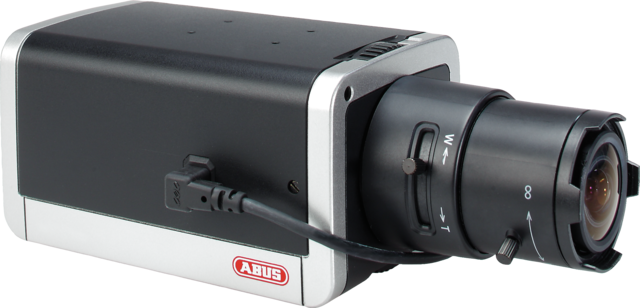

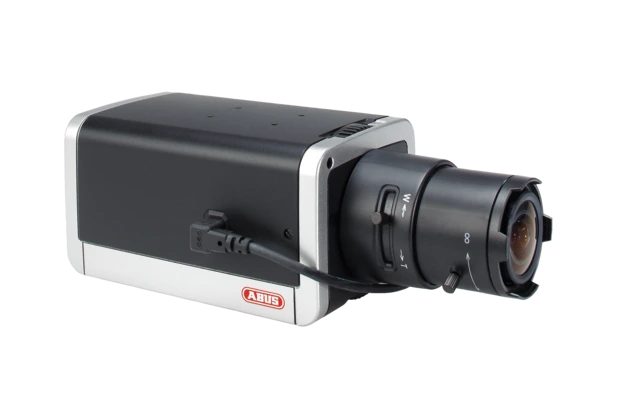

Day/night HD-SDI 1080p standard camera, 12 V DC, 24 V AC front view right

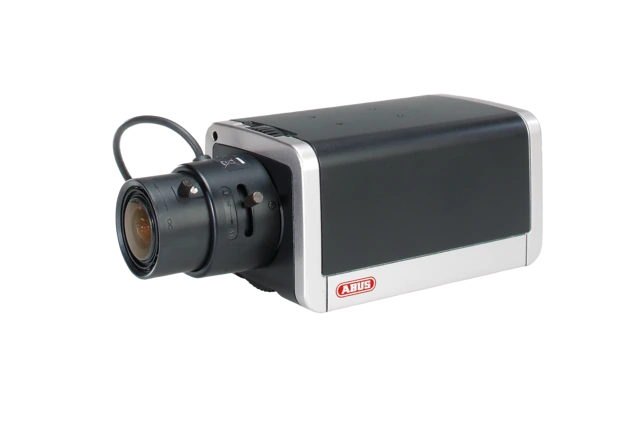

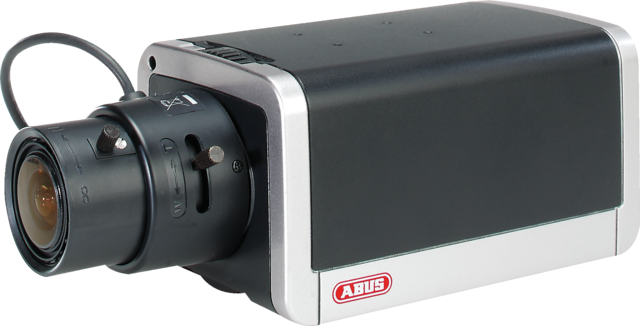

Day/night HD-SDI 1080p standard camera, 12 V DC, 24 V AC front view left

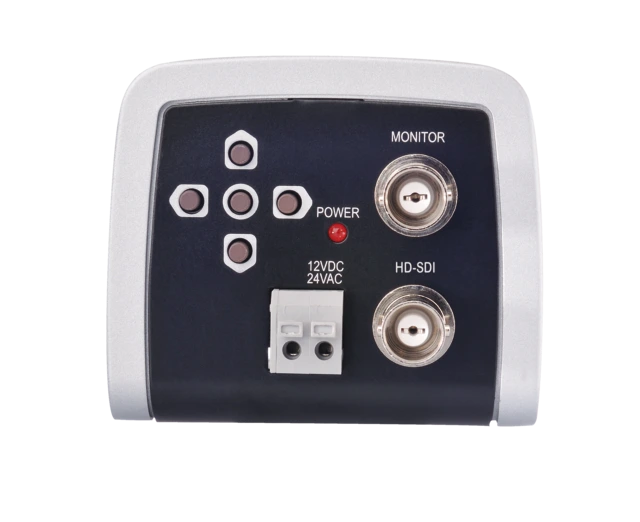

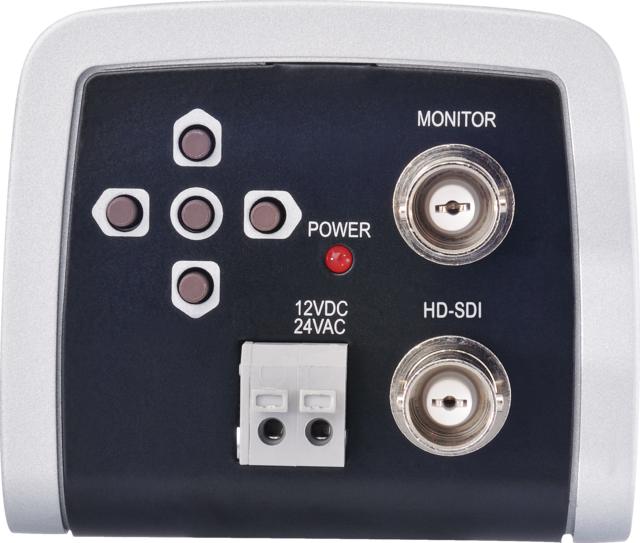

Day/night HD-SDI 1080p standard camera, 12 V DC, 24 V AC back view

Day/Night HD-SDI 1080p Standard Camera, 12 V DC, 24 V AC

Description

The day/night HD-SDI 1080p standard camera provides images in full-HD resolution and transmits them uncompressed via coaxial cables. This allows you to feed high-resolution images in 2-megapixel quality into a CCTV system without additional components. This innovative generation of megapixel cameras brings you tangible benefits, especially when replacing existing systems: high-resolution, detailed images (recognition of license plates / identification of persons) and a surveillance area that is up to four times larger than that of standard analog cameras, resulting in long-term cost savings. The crucial advantage: the especially easy installation through the use of proven coaxial cables (allowing you to dispense with the installation of an IP network). It has never been easier to integrate high-resolution images into video surveillance! The 1/2.8" image sensor provides detailed images even at night. The camera can be used in conjunction with light-sensitive lenses with voltage-controlled apertures. Other advantages include the second video output for connecting a test monitor as well as the on-screen display, both of which make on-site installation easier. 12 V DC or 24 V AC can be used for the power supply. Take advantage of the opportunity for HD-SDI project discounts. Contact your customer care representative in this regard.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • HD 1080p resolution: 1920 × 1080 @ 25 fps
  • HD-SDI - high-definition serial digital interface
  • Transmission via conventional CCTV infrastructure (coaxial cable)
  • Day/night switching with electromechanical IR swivel filter (ICR)
  • Analogue video output for service
  • WDR function for compensating high image contrasts
  • On-screen display for convenient setup
  • Compatible with voltage-controlled autoiris megapixel lenses

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

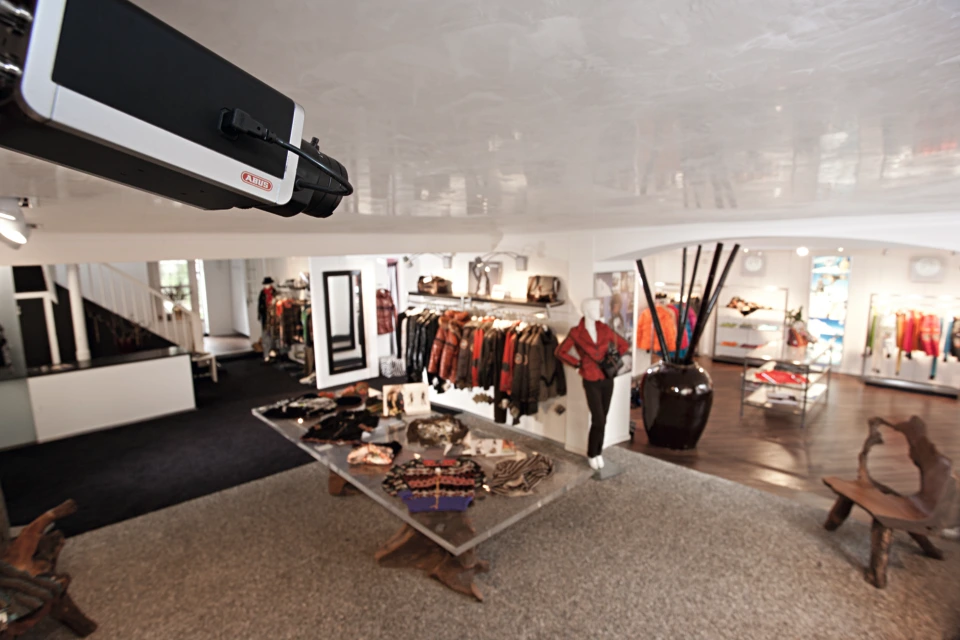

Day/night HD-SDI 1080p standard camera, 12 V DC, 24 V AC Example of application
Day/night HD-SDI 1080p standard camera, 12 V DC, 24 V AC Example of application
Specifications
Connections: 1 x BNC (HD-SDI), 1 x BNC (FBAS, 1Vss, 75 Ohm), 1 x DC (5.5 x 2.1 mm)
IP protection class: 34
PSTI conformity required: No
