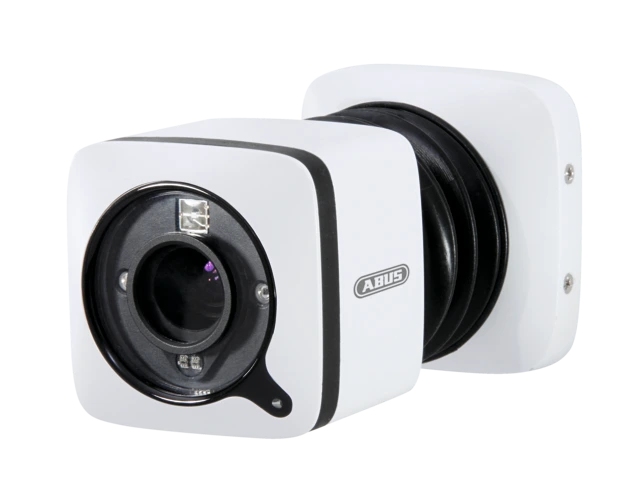

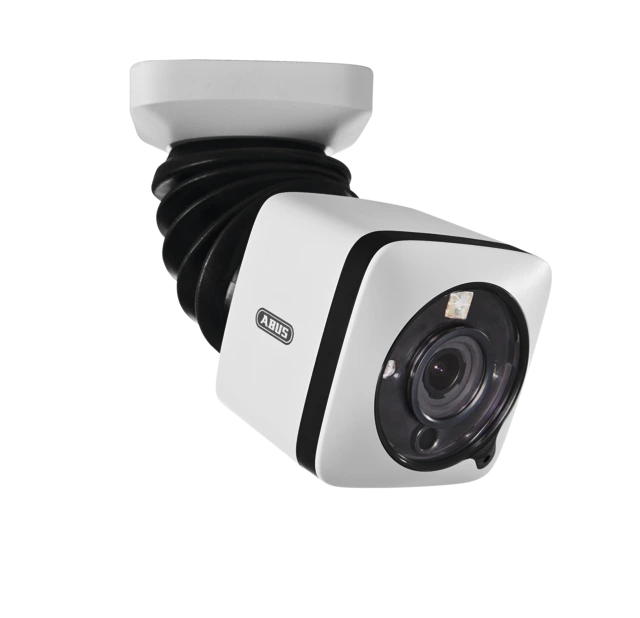

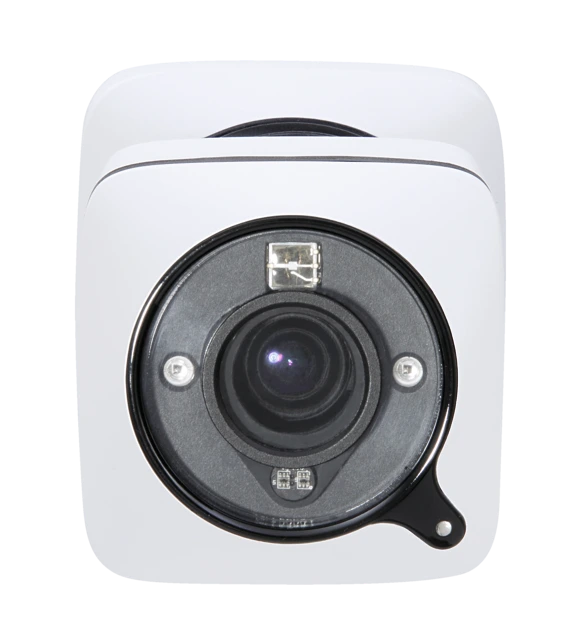

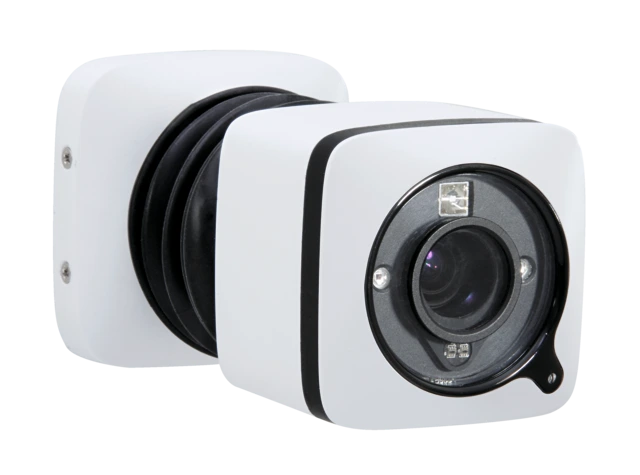

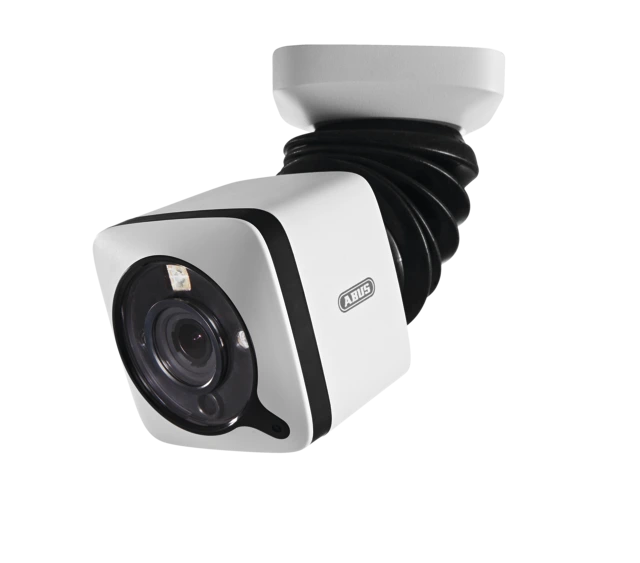

    Network Mini Tube Indoor Camera
    Network Mini Tube Indoor Camera
    Network Mini Tube Indoor Camera
    Network Mini Tube Indoor Camera
    Network Mini Tube Indoor Camera

    Indoor IP Compact IR 1080p (3 - 9 mm)

    Description

    Ready for use 24/7. For outstanding images.
    The IPCA22500 from the Advanced Line of ABUS IP cameras delivers outstanding images indoors with a resolution of 1920 x 1080 px @ 30 fps – even in low light conditions in the evening or at night – thanks to integrated IR-LEDs and the new, more light-sensitive Sony Starvis Exmor R image sensor. Thanks to the outstanding True WDR function (> 120 dB) of the Sony image sensor and the Sony Xarina DSP, the camera overcomes the extreme challenges posed by backlit situations with ease.

    Simple installation. Convenient start-up.
    Installation of the camera is much simpler thanks to the Tamron lens with motorised zoom (3.0-9.0mm). Focussing is carried out directly on the laptop, for example. Further installation within the network is carried out in no time at all thanks to the installation wizard.

    Protecting images.
    The camera has 16GB of internal memory in order to save recordings in the event of a network failure.

    The result: a strong and complete solution.
    The IPCA22500 is a camera for high standards. It can easily be combined with other ABUS IP cameras and works perfectly with ABUS network video recorders – ideal for projects where strong and complete solutions are needed. Furthermore, integration into existing installations with cameras and recording solutions (Milestone, SeeTec, Synology, etc.) from other providers is possible because of the Open IP principle. The IPCA22500 can be used individually and for a specific purpose to monitor areas in private buildings as well as public spaces (shops, hotels, banks, fuel stations, production halls, etc.).

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Full HD 1080p resolution: 1920 x 1080 @ 30 fps
    • Ready for use around the clock: excellent image quality in the evening and at night thanks to the new light-sensitive Sony Starvis Exmor R image sensor and integrated IR-LEDs
    • The outstanding True WDR function (> 120 dB) of the Sony Xarina DSP and Sony Starvis Exmor R image sensor means better images in backlight situations
    • Simpler installation: thanks to the Tamron lens with motorised zoom (3.0–9.0 mm)
    • Double the security: 16 GB internal memory to store recordings even during network failure

    Downloads

    General downloads:

    Declarations of conformity:

    Additional information:

    Software:
    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Alarm generation: E-Mail, FTP, relay
    Alarm input (NO/NC): 1
    Alarm output (NO/NC): 1
    Audio: 2-Way Audio (Browser)
    Backlight compensation: True WDR
    Camera outputs: 1 x BNC (CVBS)
    Camera type: Indoor Compact
    Colour: RAL9003
    Compatible with: NVR, Hybrid DVR, IPCam Plus
    Compatible with ABUS Link Station: No
    Compatible with Secvest: No
    Compatible with wAppLoxx: No
    Compatible with wAppLoxx Pro: No
    Connections: 1 x RJ45, 1 x DC, 1 x Alarm input, 1 x Alarm output, 1 x Audio input, 1 x Audio output, 1 x CVBS
    Construction type of device: Compact
    Current consumption: 440 mA
    DC power supply: 12 (+/-10 %) V
    DSP: Sony Xarina
    Day/night switching: ICR/Color/B/W
    Dimensions: (LxWxH) 145x82x82 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/25 s - 1/10000 s
    Encryption: HTTPS
    Focal length: 3,0 - 9,0 mm
    Frame rate: 2, 5, 10, 15, 25, 30
    Height: 82 mm
    Horizontal viewing angle: 35 - 90 °
    IR LEDs: Yes
    IR range (up to): 15 m
    Image integration: Yes
    Image optimization: True WDR
    Image sensor: 1/2.8" Sony Exmor R™ STARVIS™ CMOS
    Language Manual: DE, UK, FR, NL, DK
    Language OSD: DE, UK, FR, NL, DK
    Length: 145 mm
    Lens: Motor-Zoom
    Max. Air humidity: 75 %
    Max. Max. speed: 75
    Max. Operating temperature: 50 °C
    Max. Resolution @ frame rate: 1920 x 1080 @ 30 fps
    Microphone: No
    Min. operating temperature: -10 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.01 lx
    Minimum lighting (B/W): 0.005 lx
    Motion detection: 3 zones
    Net weight: 0.7 kg
    Network bandwidth Video: 256 kBit/s - 8 MBit/s
    Network camera protocols: IPv4, IPv6, HTTP, HTTPS, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, ABUS Server
    Network connection: RJ45
    Network connection LAN: RJ45
    Noise suppression: 3D DNR
    Number of IR LEDs: 3
    Number of streams: 3
    Number of users: 10
    ONVIF: Profile S
    Optical zoom: 3x
    Pixels (effective): 1920(H) x 1080(V)
    PoE Standard: IEEE 802.3af
    Privacy zones: 3
    Protection class IP: 24
    Relay output: 1
    Resolution: 2MPx
    Resolution modes: 1080p, 720p, VGA, CIF
    Simultaneous network access: Yes
    Storage medium: microSD card, 16 GB
    Supported browsers: IE10, IE11
    Video compression: H.264, MJPEG
    Video system: IP
    WEEE group: 09
    White balance: ATW
    width: 82 mm
