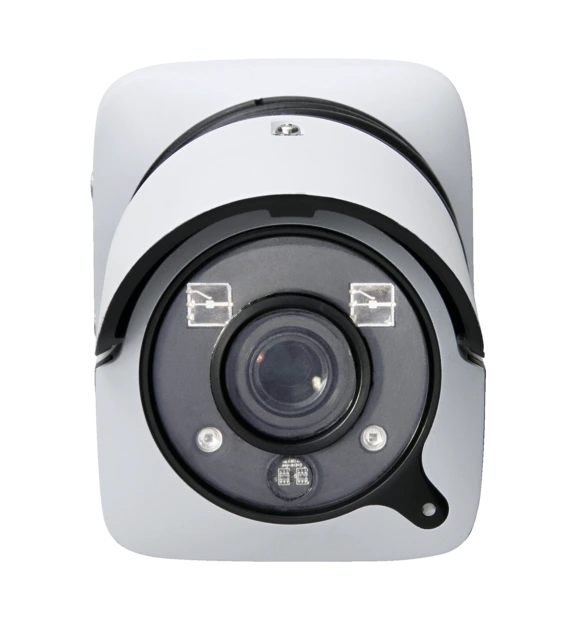

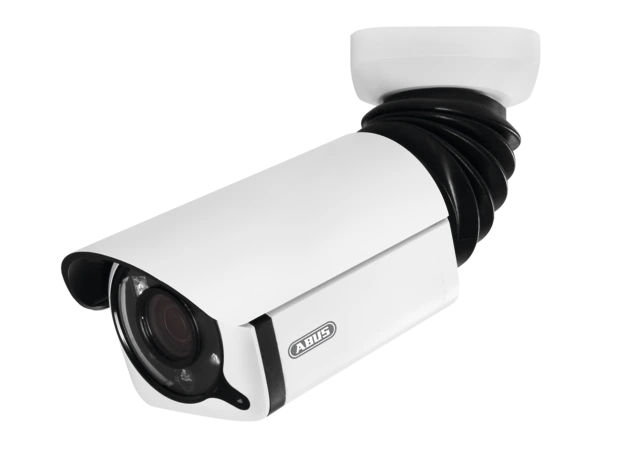

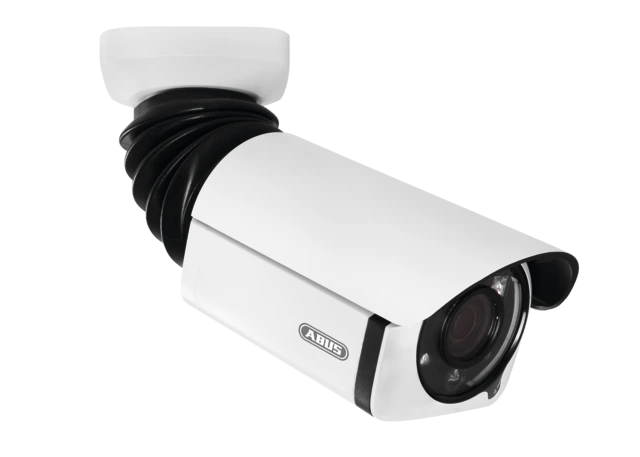

    Outdoor IP Tube IR 1080p (9 - 22 mm)

    Description

    Ready for use 24/7. For excellent images.
    The IPCA62505 from the ABUS IP camera Advanced Line delivers excellent images outdoors with a resolution of 1920 x 1080 px @ 30 fps – even in very low light in the evening and at night, thanks to integrated IR LEDs and the new, even more light-sensitive Sony Starvis Exmor R image sensor. The camera also masters extreme backlighting challenges with ease thanks to the outstanding True WDR function (> 120 dB) provided by the Sony image sensor and Sony Xarina DSP.

    Easy installation. Convenient start-up.
    The motorised zoom lens from Tamron (9.0 - 22.0 mm) greatly simplifies installation of the camera. Focusing is carried out directly on the laptop, for example. The installation wizard makes it easy to set up the camera in the network.

    Images and camera backed up.
    The camera has 16 GB of internal memory so that recordings are backed up even in the event of a network failure. The camera itself has a high degree of protection against vandalism (protection class IK10) and dust/water (protection class IP67).

    The result: a powerful and complete solution.
    The IPCA62505 is a camera for high demands. It can easily be combined with other ABUS IP cameras and works perfectly with ABUS network video recorders – ideal for projects where powerful and complete solutions are needed. Furthermore, integration into existing installations with cameras and recording solutions (Milestone, SeeTec, Synology, etc.) from other providers is possible thanks to the Open IP principle. The IPCA62505 can be used individually and precisely to detect objects and people over long distances – on private property as well as in car parks, factory halls or shopping streets, etc.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Full HD 1080p resolution: 1920 x 1080 @ 30 fps
    • Ready for use around the clock: excellent image quality in the evening and at night thanks to the new light-sensitive Sony Starvis Exmor R Image Sensor and Integrated IR LEDs
    • Challenge met: the outstanding True WDR function (> 120 dB) of the Sony Xarina DSP and Sony Starvis Exmor R Image Sensor means better images in backlit situations
    • Installation simplified: thanks to the Tamron motorised zoom lens (9.0-22.0 mm)
    • Double the security: 16 GB internal memory preserves recordings even in the event of a network failure
    • Very well protected against vandalism (IK10) as well as dust and water (IP67)

    Downloads

    General downloads:

    Declarations of conformity:

    Additional information:

    Software:
    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Alarm generation: E-Mail, FTP, Relay
    Alarm input (NO/NC): 1
    Alarm output (NO/NC): 1
    Audio: 2-Way Audio (Browser)
    Backlight compensation: True WDR
    Camera outputs: 1 x BNC (CVBS)
    Camera type: Outdoor Tube
    Colour: RAL9003
    Compatible with: NVR, Hybrid DVR, IPCam Plus
    Compatible with ABUS Link Station: No
    Compatible with Secvest: No
    Compatible with wAppLoxx: No
    Compatible with wAppLoxx Pro: No
    Connections: 1 x RJ45, 1 x DC, 1 x Alarm input, 1 x Alarm output, 1 x Audio In, 1 x Audio Out, 1 x CVBS
    Construction type of device: Tube
    Current consumption: 530 mA
    DC power supply: 12 (+/-10 %) V
    DSP: Sony Xarina
    Day/night switching: ICR/Color/B/W
    Dimensions: (LxWxH) 238x82x82 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/25 s - 1/10000 s
    Encryption: HTTPS
    Focal length: 9.0 – 22.0 mm
    Frame rate: 2, 5, 10, 15, 25, 30
    Height: 82 mm
    Horizontal viewing angle: 13 – 30 °
    IR LEDs: Yes
    IR range (up to): 40 m
    Image integration: Yes
    Image optimization: True WDR
    Image sensor: 1/2.8" Sony Exmor R™ STARVIS™ CMOS
    Language Manual: DE, UK, FR, NL, DK
    Language OSD: DE, UK, FR, NL, DK
    Length: 238 mm
    Lens: Motor-Zoom
    Max. Air humidity: 85 %
    Max. Operating temperature: 60 °C
    Max. Resolution @ frame rate: 1920 x 1080 @ 30 fps
    Microphone: No
    Min. operating temperature: -25 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.1 lx
    Minimum lighting (B/W): 0.01 lx
    Motion detection: 3 zones
    Net weight: 1.255 kg
    Network bandwidth Video: 256 kBit/s - 8 MBit/s
    Network camera protocols: IPv4, IPv6, HTTP, HTTPS, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, ABUS Server
    Network connection: RJ45
    Network connection LAN: RJ45
    Noise suppression: 3D DNR
    Number of IR LEDs: 4
    Number of streams: 3
    Number of users: 10
    ONVIF: Profile S
    Optical zoom: 2.4 x
    Pixels (effective): 1920(H) x 1080(V)
    PoE Standard: IEEE 802.3af
    Privacy zones: 3
    Protection class IK: 10
    Protection class IP: 67
    Relay output: 1
    Resolution: 2MPx
    Resolution modes: 1080p, 720p, VGA, CIF
    Simultaneous network access: Yes
    Storage medium: microSD card, 16 GB
    Supported browsers: IE10, IE11
    Video compression: H.264, MJPEG
    Video system: IP
    WEEE group: 09
    White balance: ATW
    width: 82 mm
