PRO SHIELD™ 5850
Key
Security Level 9/15 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security

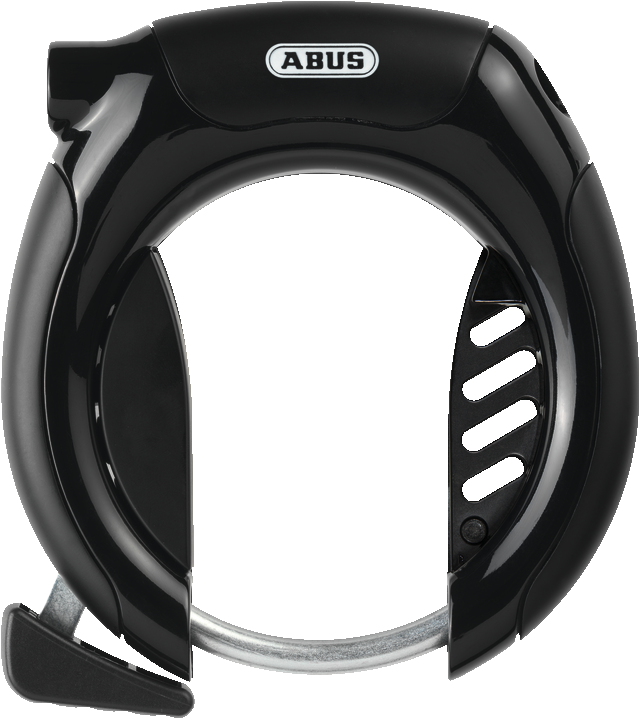

PRO SHIELD™ 5850

The Frame Lock PRO SHIELD™ 5850 provides a good level of security in regions with medium risk of theft.

All variants for PRO SHIELD™ 5850
Colours for PRO SHIELD™ 5850
Description
The ABUS quality of the Frame Lock PRO SHIELD™ 5850 is certified by test seals from four different countries
The Frame Lock PRO SHIELD™ 5850 offers good protection against medium risk of theft. Norway, Finland, Sweden and the Netherlands have approved the secure ABUS quality of the bicycle lock with their special test seal. We recommend this frame lock is used to secure high-quality bicycles at medium risk of theft.
Awards & Partners
Test Seal of the Norges Forsikringsforbund – Oslo, Norway
FG Logo
Test Seal of the Norges Forsikringsforbund – Oslo, Norway

Test seal of the Vahinkovakuutusyhtiöiden Hyväksymä – Helsinki, Finland
VAT Pyramide
Test seal of the Vahinkovakuutusyhtiöiden Hyväksymä – Helsinki, Finland

Test seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden (SBSC)
SBSC INTYGAD
Test seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden (SBSC)

Test seal of the ART foundation in the Netherlands (4184)
ART 4184
Test seal of the ART foundation in the Netherlands (4184)

only for R-versions
Test seal Varefakta – Copenhagen, Danmark
Varefakta
Test seal Varefakta – Copenhagen, Danmark

Awards & Partners

Technologies

  • 8.5 mm thick locking shackle
  • The shackle, the case as well as supporting elements of the locking mechanism are made of specially hardened steel
  • Accessories can easily be fitted to the locking mechanism on the lock housing
  • The R (key retaining) version holds the key when the lock is open, the NR (non key retaining) version allows taking the key out of the cylinder

Mounting and transportation

  • LH - The LH adapter fixing strap can be used as an alternative mounting option if there are no holes in the rear section.

Operation and use

  • Good protection at medium theft risk
  • Recommended for securing good bicycles

Tips

  • Frame locks are a convenient protection against unauthorized use of the bicycle
  • Security is significantly enhanced by the connection options 4960, 5850, 5650 Cable and Chain
  • The use of a second lock is highly recommended

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
alarm function: No
color of facets: black
Width: 59 mm
diameter: 8,5 mm

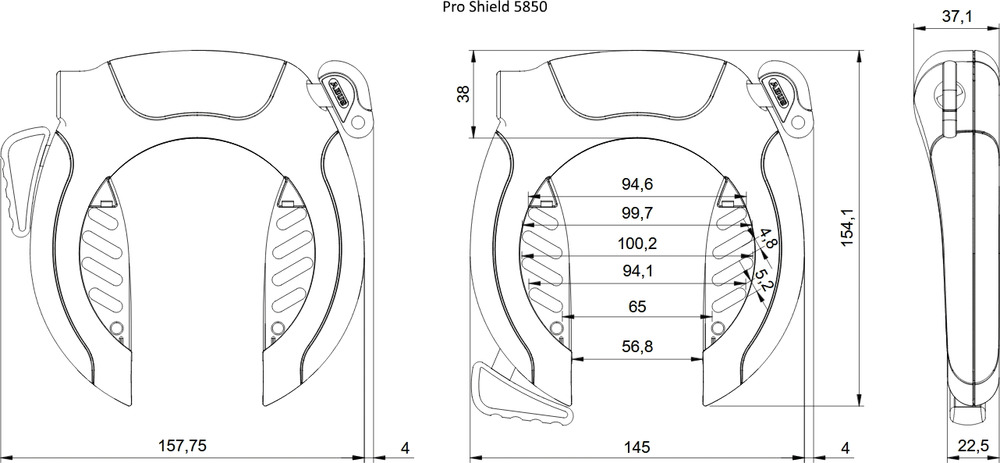

Design: Technical drawing - PRO SHIELD™ 5850
Technical drawing - PRO SHIELD™ 5850
Locking type: key
design color: black
Height: 107 mm
Weight: 680 g
