    VGA Transmission Set

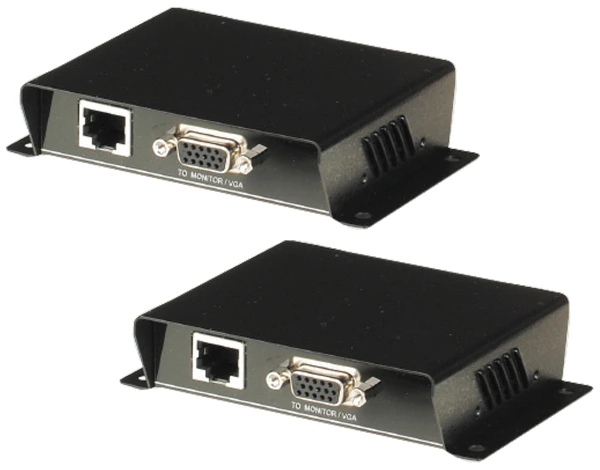

    Transmission Set

    Passive VGA transmission set

    Product advantages

    • Many applications: LCD projector systems, laptops, VGA monitors
    • Transmission distance: up to 135 m (depending on resolution)
    • Video transmission via twisted pair or network cables
    • Video input/output: VGA-DSUB socket/RJ-45 socket
    • Input signals 1 Vpp (75 Ω)

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Cable style: CAT5 cable
    Certifications: VGA, VESA VP
    Dimensions: (W x H x D) 110 x 24 x 77 mm
    Height: 24 mm
    Insertion loss: <3dB
    Length: 77 mm
    Max. Air humidity: 95 %
    Max. Operating temperature: 50 °C
    Min. operating temperature: 0 °C
    Net weight: 0.342 kg
    Output resistance: 100 O
    Product group: Accessories
    Transmission distance: 135 m
    Video input: VGA-DSUB, RJ-45
    Video input level: 1 dB
    Video output: VGA-DSUB, RJ-45
    WEEE group: 09
    width: 110 mm
