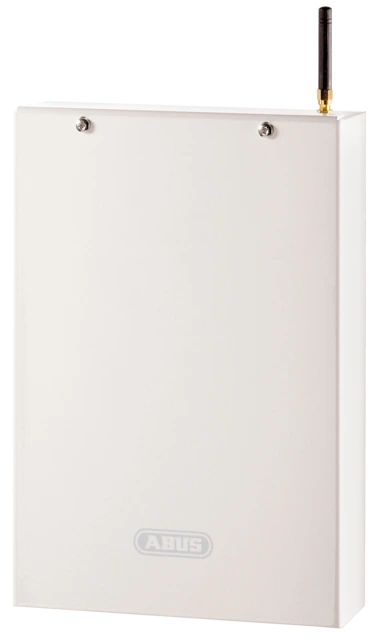

    GSM Interface
    GSM Interface

    Profiline GSM-Interface II

    Product advantages

    Downloads

    General downloads:

    Software:
    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    AC power supply: 230 V
    Current consumption: 70 mA
    DC power supply: 13,8 V
    Dialing method: DTMF (multi-frequency method, tone dialing method)
    Dimensions: 185x275x65 mm, with antenna: 185x335x65 mm
    Height: 275 mm
    Housing material: Metal
    Inputs: 4
    Length: 65 mm
    Max. Operating temperature: 55 °C
    Min. operating temperature: 0 °C
    Net weight: 2.4 kg
    Number of voice messages: 0
    Outputs: 1 relay output (3 A) / 3 transistor outputs (100 mA each)
    PSTI conformity needed: No
    Protection class IP: 43
    Remote access: Yes
    Tamper monitoring: 1
    Telephone numbers Memory locations: 8
    Transmission path: PSTN, GSM
    Transmission type: Voice (in conjunction with voice module), SMS, digital protocol (CID, SIA), (no individual protocols are created)
    Type of inputs: NC/NO alarm inputs (positive/negative)
    Voltage monitoring: Yes
    WEEE group: 09
    width: 185 mm
