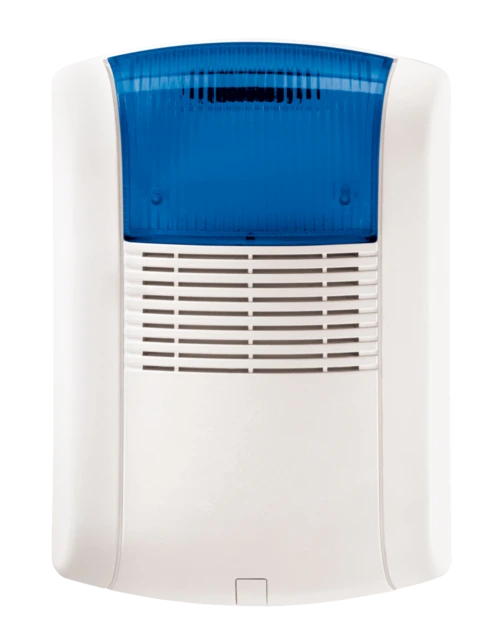

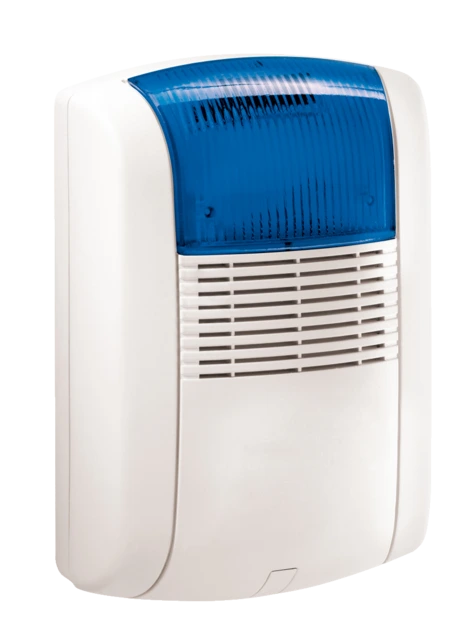

    Profiline Sounder (blue)

    Product advantages

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Adjustable alarm tone: Yes
    Connections: Standard connections AUX/COM: 13.8 V DC / 200 mA, additional connections PS+/PS-: 13.8 V DC / 1.6 A
    Current consumption: 54 mA
    DC power supply: 12 V
    Dimensions: (WxHxD) 220x300x91 mm
    Emergency power supply: Optional: 12 V/ 2.1 Ah rechargeable battery
    Flashing frequency: 1 Hz
    Height: 300 mm
    Housing material: ABS
    Illuminant: LED
    Length: 91 mm
    Light color: Blue
    Max. Air humidity: 95 %
    Max. Operating temperature: 70 °C
    Min. operating temperature: -25 °C
    Net weight: 2.457 kg
    PSTI conformity needed: No
    Power consumption: 0.648 W
    Product group: Sirens and sounders
    Protection class IP: 43
    Sound pressure: 110 dB
    Tamper monitoring: Yes
    Voltage monitoring: Yes
    WEEE group: 09
    width: 220 mm
