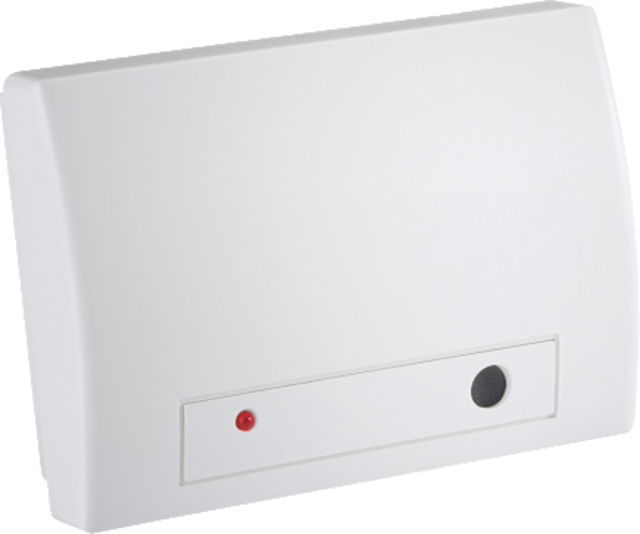

    Secvest 2WAY Wireless Glass Breakage Detector right view

    Secvest 2WAY Wireless Glass Breakage Detector

    Description

    The acoustic Secvest 2WAY wireless glass breakage detector is a component of the Secvest 2WAY and is also suitable for the Terxon with a wireless expansion module. It reacts to the specific noise of breaking windows. Breakage of glass is detected and reported to the alarm control panel. The wireless glass breakage detector has a sensor monitoring the entire room. It should be aimed directly at the window pane to be monitored. The best position is approx. 2-3 meters from the front of the glass, the maximum distance is 6 meters. The detection range of the detector may be reduced by interfering noises from the near surroundings and by the immediate "window surroundings" (curtains, flowers, interior window sills, burglary-resistant glass, etc.). The wireless glass breakage detector reacts to the sound frequency of breaking glass (low and high-frequency sounds). This occurs in two stages: a sharp rise in amplitude while the glass breaks, falling off of the amplitude caused by the glass pieces falling down and hitting the floor. First the breaking glass, then the impact of the pieces of glass: The wireless glass breakage detector only triggers an alarm if these criteria are met. This prevents false alarms.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Acoustic detection of breaking glass
    • For monitoring glass surfaces
    • Distance from glass up to 6 m
    • Distinguishes shattering window
    • panes from drinking glasses
    • No wiring needed on the window

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Battery - max. battery life: 2 y
    Battery - type: 3V DC lithium CR2 battery
    DC voltage supply: 3 V
    Detector coverage area (m): 6 m
    Dimensions: (WxHxD) 108x80x43 mm
    Environmental class: II
    Height: 80 mm
    Housing material: ABS
    Installation location: Across from the glass surfaces to be monitored
    Length: 43 mm
    Max. humidity: 85 %
    Max. operating temperature: 55 °C
    Max. transmission range (building): 30 m
    Max. transmission range (free field): 100 m
    Min. operating temperature: -10 °C
    Modulation: FM
    Net weight: 0,14 kg
    PSTI conformity required: No
    Radio frequency: 868,6625 MHz
    Radio power: 10 mW
    Sabotage monitoring: Yes
    Security level: 2
    Sensor type: Microphone sensor technology
    Status display: Yes
    Type of detection: Audible
    Voltage monitoring: Yes
    Width: 108 mm
