Secvest 2WAY Wireless Key Switch front right view
Secvest 2WAY Wireless Key Switch front view left

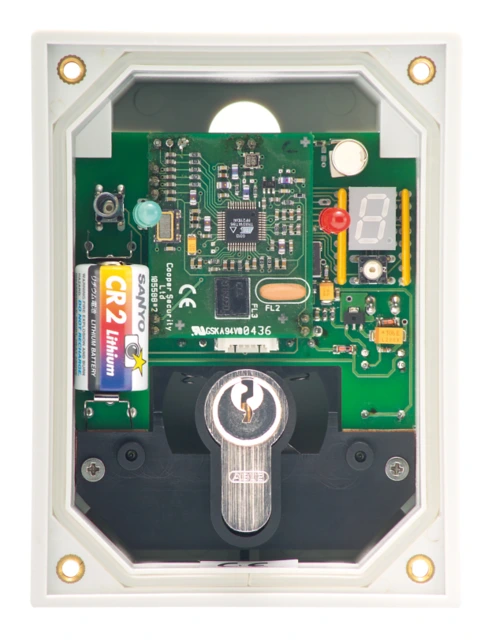

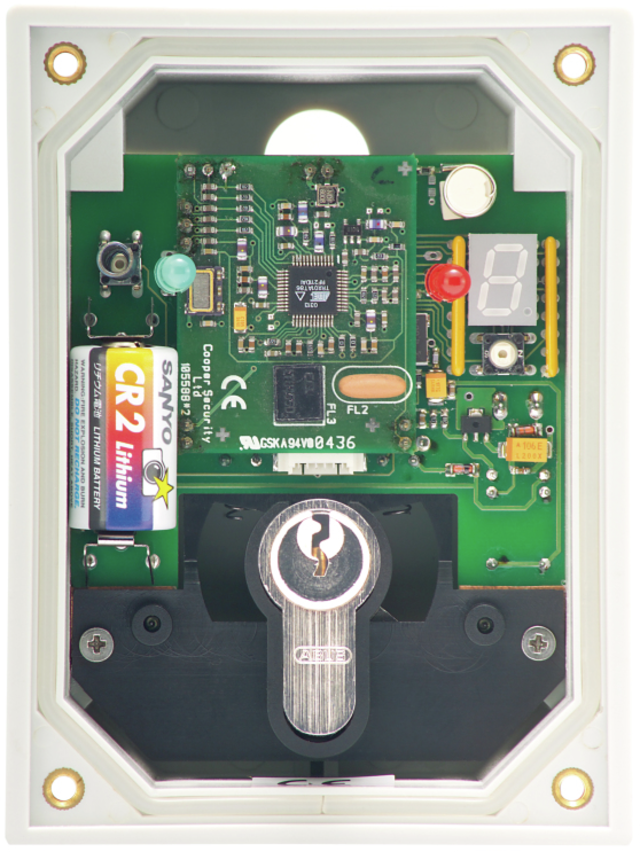

Secvest 2WAY Wireless Key Switch

Description

The Secvest 2WAY wireless key switch is an optional module for the Secvest 2WAY. It allows you to conveniently arm and disarm your alarm system simply by turning a key. Due to the modern design, the wireless key switch can be integrated perfectly into any entrance area. No more forgetting your code with the wireless key switch: This component of the Secvest family replaces entering a code at the alarm panel or at the control unit by the simple turn of a key. Two integrated LED display the status of the system. This avoids false alarms caused by wrong operation. Communication between the center and its components takes place on 868.6625 MHz - a radio frequency which is exclusively reserved for security purposes. The latest FM radio technology with millions of codes and duplex antenna technology guarantees reliable transmission of the signals. Protection class IP55 lets you also use the wireless key switch in protected outdoor areas.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Simple to install and operate
  • Rugged housing
  • Pull protection
  • Sturdy housing
  • Cylinder guard

Downloads

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Battery - max. battery life: 2 y
Battery - type: 3.6 V AA Li battery (FU2992) or 12 V DC
DC voltage supply: 3,6/12 V
Dimensions: (WxHxD) 87x117x47 mm
Environmental class: II
Height: 117 mm
Housing material: Aluminium and plastic
IP protection class: 55
Installation location: Indoors and protected outdoor areas
Length: 47 mm
Max. operating temperature: 55 °C
Max. receiving range (building): 30 m
Max. receiving range (free field): 100 m
Max. transmission range (building): 30 m
Max. transmission range (free field): 100 m
Min. operating temperature: -10 °C
Net weight: 0,55 kg
Power consumption: 36 mA
Radio frequency: 868,6625 MHz
Radio power: 10 mW
Sabotage monitoring: 1
Status display: 1
Voltage monitoring: Yes
Width: 87 mm
