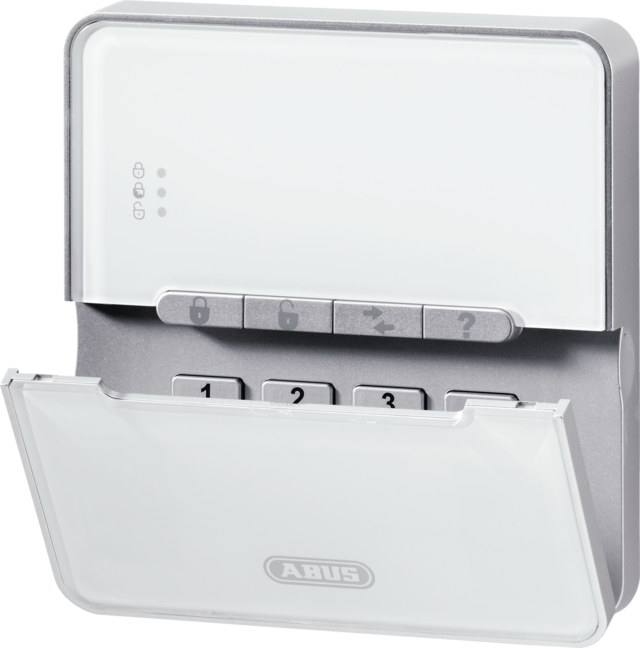

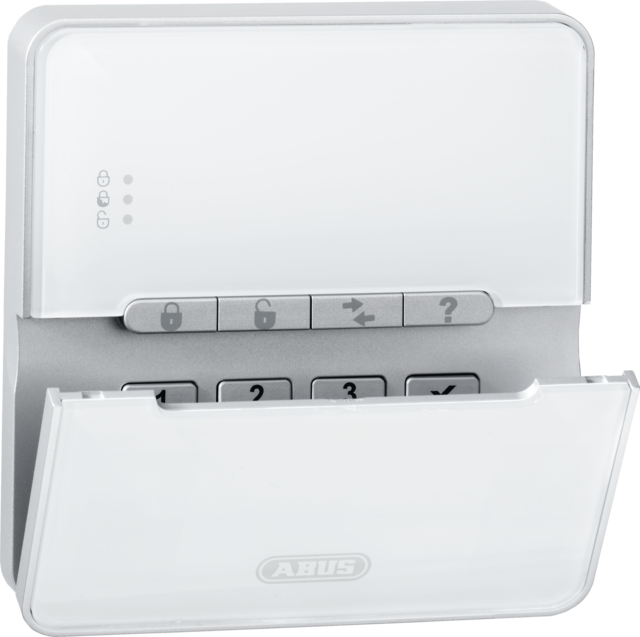

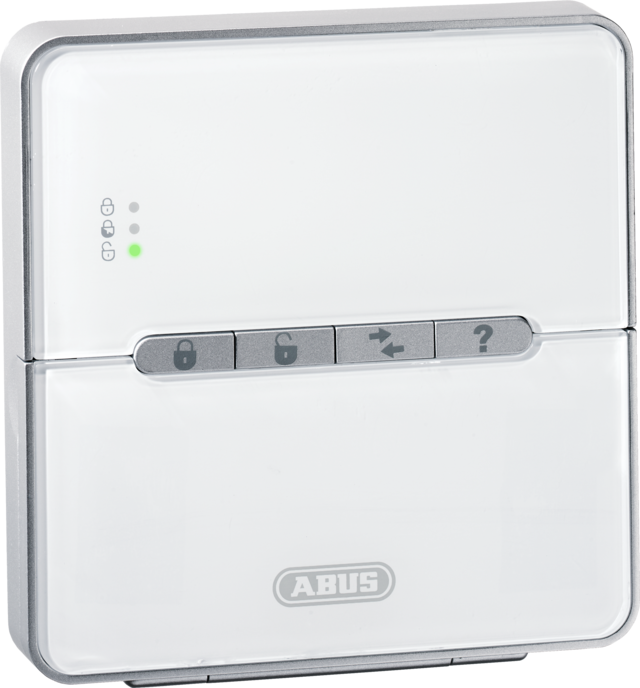

    Description

    The Secvest 2WAY wireless keypad is an optional accessory for the Secvest 2WAY. You can operate your system from any wireless keypad using your PIN code. If the wireless keypad is supplied externally with 12V, arming and disarming by proximity chip key is also possible. Up to 4 control units can be integrated into the alarm system. Arranged in various parts of your building, these expansion modules guarantee additional convenience. The Secvest 2WAY can be armed or disarmed directly on the wireless keypad, without having to go back to the central alarm panel each time. Entering an additional code becomes redundant. The four buttons are programmed on the central Secvest 2WAY alarm panel. In addition to the internal arming or the arming of individual sub-sections, you can also activate an output via this keypad, e.g. the garage door. Due to protection class IP54, you can also use the wireless keypad outdoors.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Secvest Wireless Keypad Secvest Wireless Keypad

    Product advantages

    • For arming/disarming the alarm panel
    • Integrated proximity key fob reader with optional external power supply
    • Possible to switch outputs
    • Power supply via battery and external source (12 V)
    • Power supply using batteries and external power supply (12 V)
    • LEDs for displaying the current system status

    Downloads

    General downloads:

    Certificates:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Secvest Wireless Keypad
    Secvest Wireless Keypad
    Specifications
    Battery - max. battery life: 2 years(s)
    Battery type: 3 V CR2 lithium battery
    Certifications: INCERT, F&P, NCP
    Connections: 12V switch terminal, battery compartment
    DC power supply: 3/12 V
    Dimensions: (WxHxD) 135x135x30 mm
    Environmental class: II
    Height: 135 mm
    Housing material: ABS
    Length: 30 mm
    Max. Air humidity: 94 %
    Max. Operating temperature: 55 °C
    Max. Receive range (building): 30 m
    Max. Receive range (free field): 100 m
    Max. Transmit range (free field): 100 m
    Max. Transmitting range (building): 30 m
    Min. operating temperature: -10 °C
    Modulation: FM
    Mounting location: Indoors and protected outdoor areas
    Net weight: 0.318 kg
    PSTI conformity needed: No
    Product group: Operation
    Protection class IP: 54
    Radio frequency: 868.662 MHz
    Radio power: 10 mW
    Security gradient: 2
    Tamper monitoring: Yes
    Technology: Electronics
    Voltage monitoring: Yes
    WEEE group: 09
    width: 135 mm
