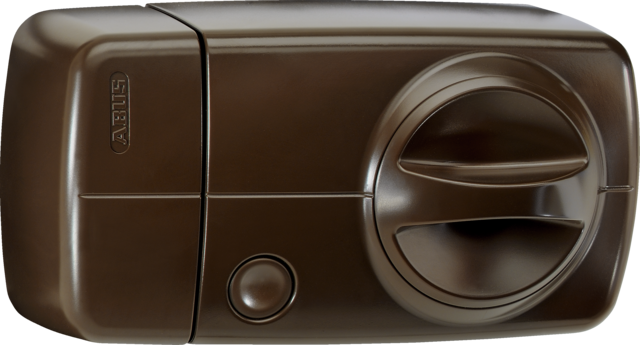

Secvest wireless additional door lock with rotary knob (brown) front view right

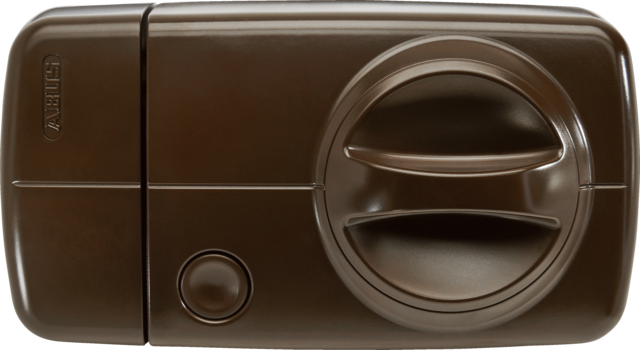

Secvest wireless additional door lock with rotary knob (brown) front view

Secvest Wireless Additional Door Lock with Rotary Knob (brown)

Description


Note:
To optimally determine the wireless range of the mechatronic products on site, we recommend the use of the ABUS wireless test box.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Automatic arming and disarming of the alarm panel when the additional door lock is locked and unlocked
  • Active intrusion protection (detects intrusion attempts)
  • Additional mechanical intrusion protection of more than one metric tonne of pressure resistance
  • Double-stroke bolt with outer cylinder lock and inner rotary knob
  • Suitable for doors with DIN right and DIN left hinges

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

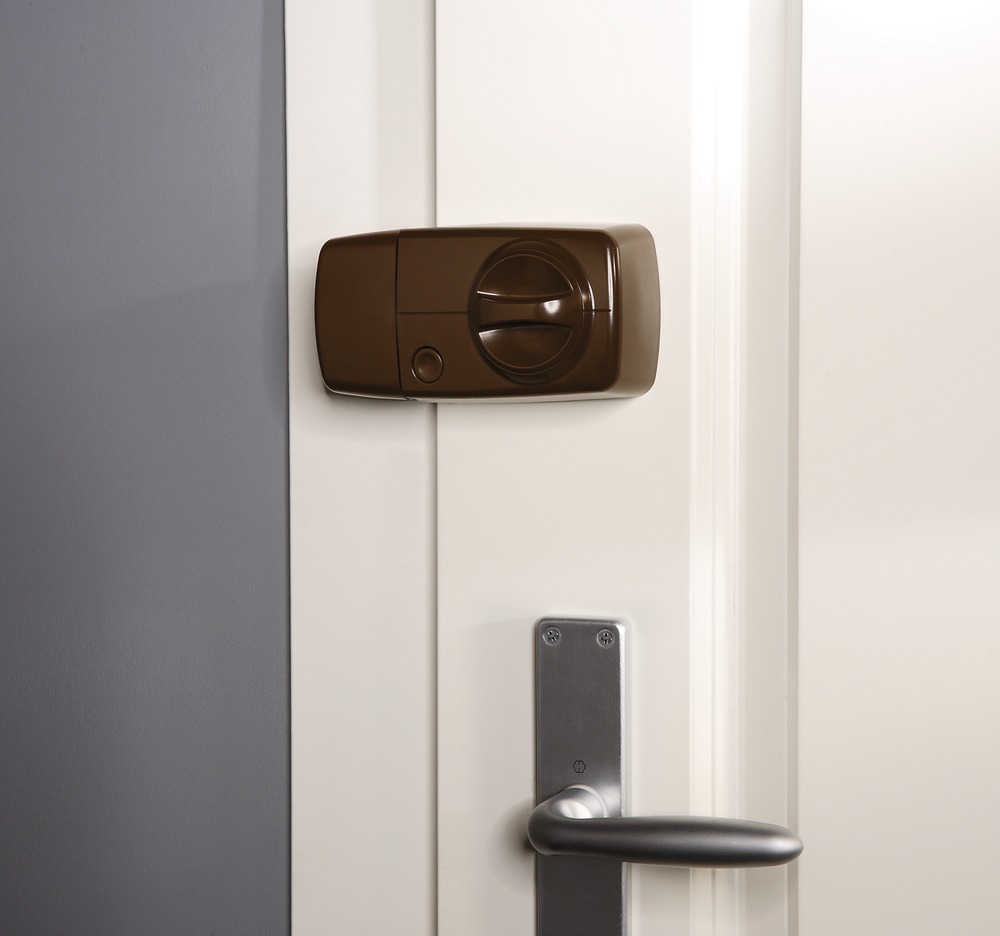

Secvest wireless additional door lock with rotary knob (brown) Example of application
Secvest wireless additional door lock with rotary knob (brown) Example of application
Specifications
Battery - max. battery life: 1 y
Battery - type: 2 x 1.5 V AAA batteries
Certifications: VdS-recognized mechanism
DC voltage supply: 3 V
Dimensions: (WxHxD) 135x57x75 mm
Environmental class: II
Height: 57 mm
Installation location: Doors
Length: 75 mm
Max. operating temperature: 55 °C
Max. receiving range (building): 30 m
Max. receiving range (free field): 100 m
Max. transmission range (building): 30 m
Max. transmission range (free field): 100 m
Min. operating temperature: -10 °C
Modulation: FM
Net weight: 1,27 kg
PSTI conformity required: No
Radio frequency: 868,662 MHz
Radio power: 10 mW
Sabotage monitoring: 1
Sensor type: Magnetic field sensor
Type of detection: Magnetic switch and magnetic field sensor
Voltage monitoring: Yes
Width: 135 mm
