    Secvest Wireless Outdoor Sounder
    Secvest Wireless Outdoor Sounder
    Secvest Wireless Outdoor Sounder

    Secvest Wireless Outdoor Sounder

    Description

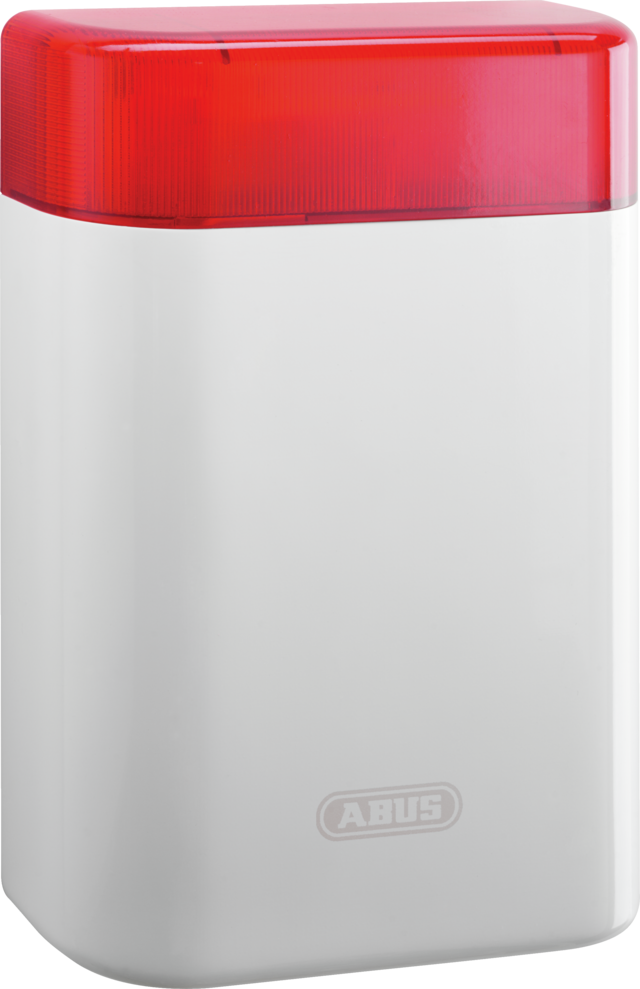

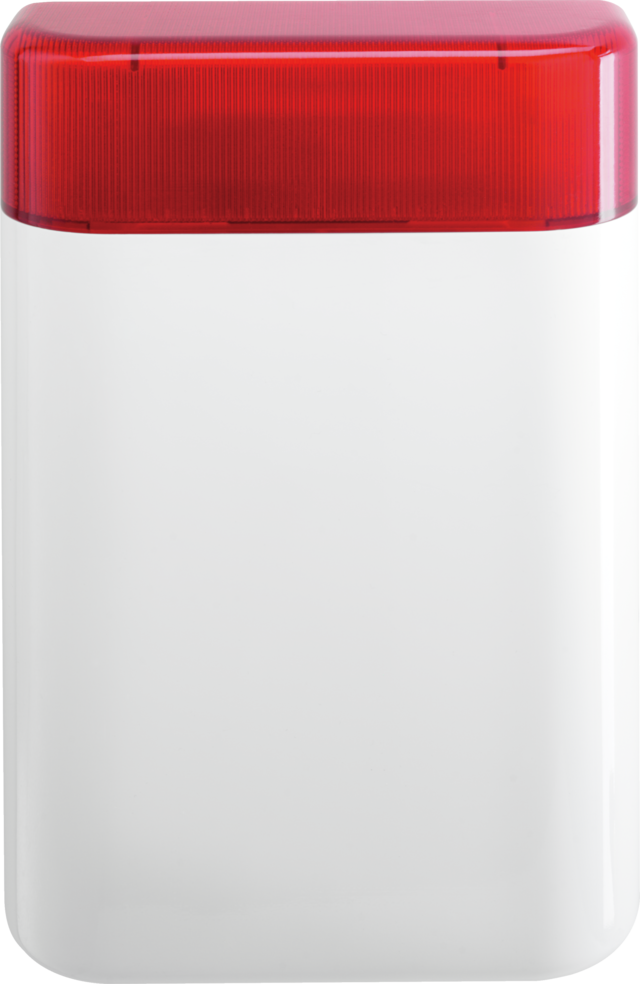

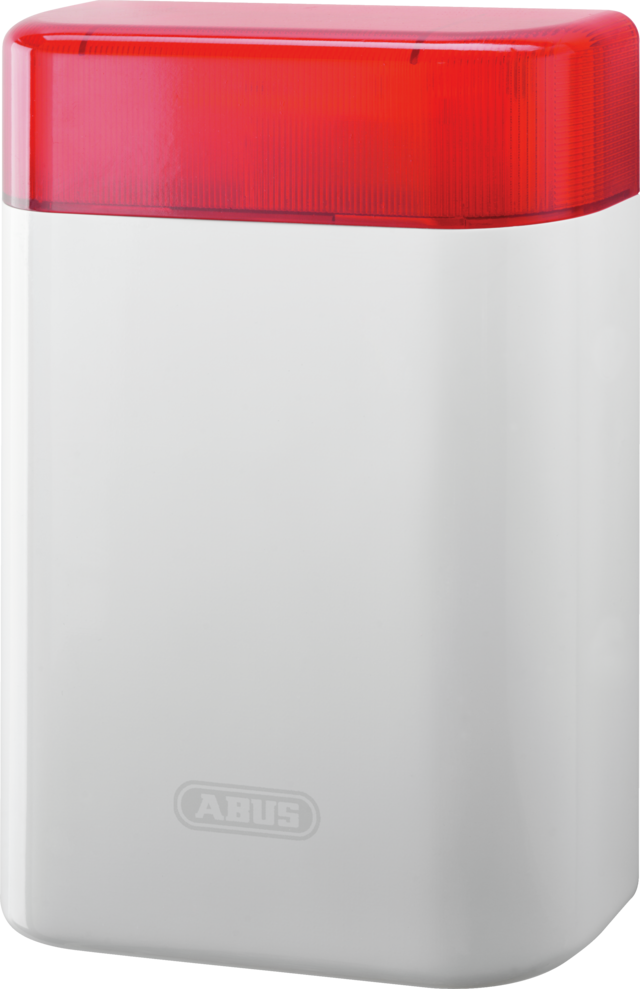

    The wireless outdoor sounder with LED flashing bar is the crucial component of a completely wireless alarm chain. If an alarm is triggered, the sounder generates a very loud signal tone with 100 dB of sound pressure. The red LED light flashes too (flashing frequency 1 Hz). The flashing light and sounder can be configured separately. This allows the flashing light to continue flashing while the signal tone stops after a set time.

    Protection against tampering
    The sounder communicates with the Secvest alarm panel via the 868 MHz frequency, which is specially reserved for the security sector. The cover and seal contact provide the wireless outdoor sounder with targeted protection against tampering. The optimised seal contact has a precision adjustment option so can be adapted for any wall surface. If someone tampers with the device, the wireless outdoor sounder automatically sounds the alarm or forwards the tamper message to the Secvest alarm panel.

    Easy installation
    The new, attractive design not only makes the wireless outdoor sounder an eye-catcher, but also makes it easier to install. As the cover on the front flap is fixed in place with a hinge, it is also possible to install the sounder with one hand.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • New, attractive design
    • Loud combination sounder
    • LED light displays different functions (e.g. confirmation of activation)
    • Robust, UV-resistant, weatherproof housing
    • Bright SMD LEDs

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Battery - max. battery life: 2 years(s)
    Battery type: Alkaline battery pack 2 x 3 V (FU2986) or lithium battery pack 1 x 7.2 V (FU2985)
    Certifications: INCERT, VSÖ, F&P, NCP
    Current consumption: 225 mA
    Current consumption standby: 0.015 mA
    DC power supply: 6-7,2 V
    Dimensions: (WxHxD) 210x300x60 mm
    Environmental class: IV
    Flashing frequency: 1 Hz
    Height: 300 mm
    Housing material: Polycarbonate
    Illuminant: Flashing LED bar (can be fitted at top or bottom)
    Length: 60 mm
    Light color: Red
    Max. Air humidity: 93 %
    Max. Operating temperature: 60 °C
    Max. Receive range (building): 30 m
    Max. Receive range (free field): 100 m
    Max. Transmit range (free field): 100 m
    Max. Transmitting range (building): 30 m
    Min. operating temperature: -25 °C
    Modulation: FM
    Mounting location: Outdoors
    Net weight: 1.6 kg
    PSTI conformity needed: No
    Power: 1.5 W
    Product group: Sirens and sounders
    Radio frequency: 868 MHz
    Radio power: 10 mW
    Sound pressure: 105 dB
    Tamper monitoring: Yes
    Voltage monitoring: Yes
    WEEE group: 09
    width: 210 mm
