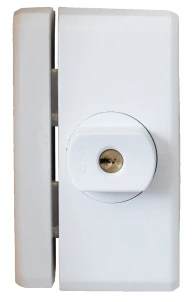

    Wireless Window Protection System FTS 96 E white - AL0125 front view right

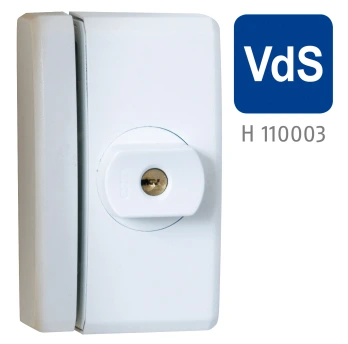

    Wireless Window Protection System FTS 96 E white - AL0125 front view

    Secvest wireless window protection system FTS 96 E - AL0125 (white)

    Description

    Perfect interplay between mechanics and electronics: The wireless window protection system FTS 96 E and the Secvest 2WAY from ABUS Security-Center combine mechanical and electronic security technology in a single security concept. The wireless window protection system is designed to work with all inward-opening windows. Withstanding more than one ton of pressure, the two solid steel bars of the wireless window protection system FTS 96 E confront the intruder with a strong mechanical resistance. At the same time - and long before the mechanical parts are fully stressed - the Secvest 2WAY sounds the alarm and drives the intruder away. Thus, this fourth generation of the popular Secvest wireless security system is also the first security system protecting against intrusion and sounding an alarm at the same time.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Mechanical locking with claw-like steel bolts
    • More than one tonne of pressure resistance
    • Open and closed positions recognisable on sight
    • One key for all units, different lock models available
    • Connection option for a glass breakage detector
    • Active intrusion protection (detects attempts to enter)

    Downloads

    General downloads:

    Certificates:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

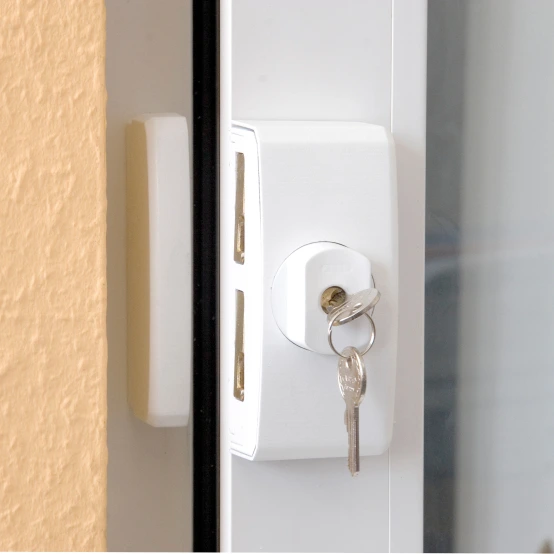

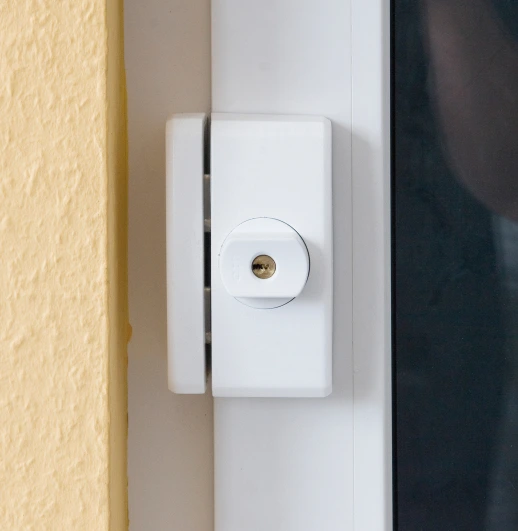

    Wireless Window Protection System FTS 96 E white - AL0125 Example of application
    Wireless Window Protection System FTS 96 E white - AL0125 Example of application
    Wireless Window Protection System FTS 96 E white - AL0125 Example of application
    Wireless Window Protection System FTS 96 E white - AL0125 Example of application
    Specifications
    Battery - max. battery life: 2 y
    Battery - type: 2 x 1.5 V LR03 AAA alkaline batteries
    Certifications: VdS (M 197029 / H 110003)
    Connections: Clamping terminal
    DC voltage supply: 3 V
    Dimensions: (WxHxD) 78x125x55 mm
    Environmental class: II
    Height: 125 mm
    Housing material: ABS
    Installation location: Windows and doors
    Length: 55 mm
    Locking number: AL0125
    Max. operating temperature: 55 °C
    Max. transmission range (building): 30 m
    Max. transmission range (free field): 100 m
    Min. operating temperature: -10 °C
    Modulation: FM
    Net weight: 1,05 kg
    PSTI conformity required: No
    Radio frequency: 868,6625 MHz
    Radio power: 10 mW
    Sabotage monitoring: Yes
    Sensor type: Reed contact, magnetic field sensor system
    Type of detection: Magnetic field measurement
    Voltage monitoring: Yes
    Width: 78 mm
