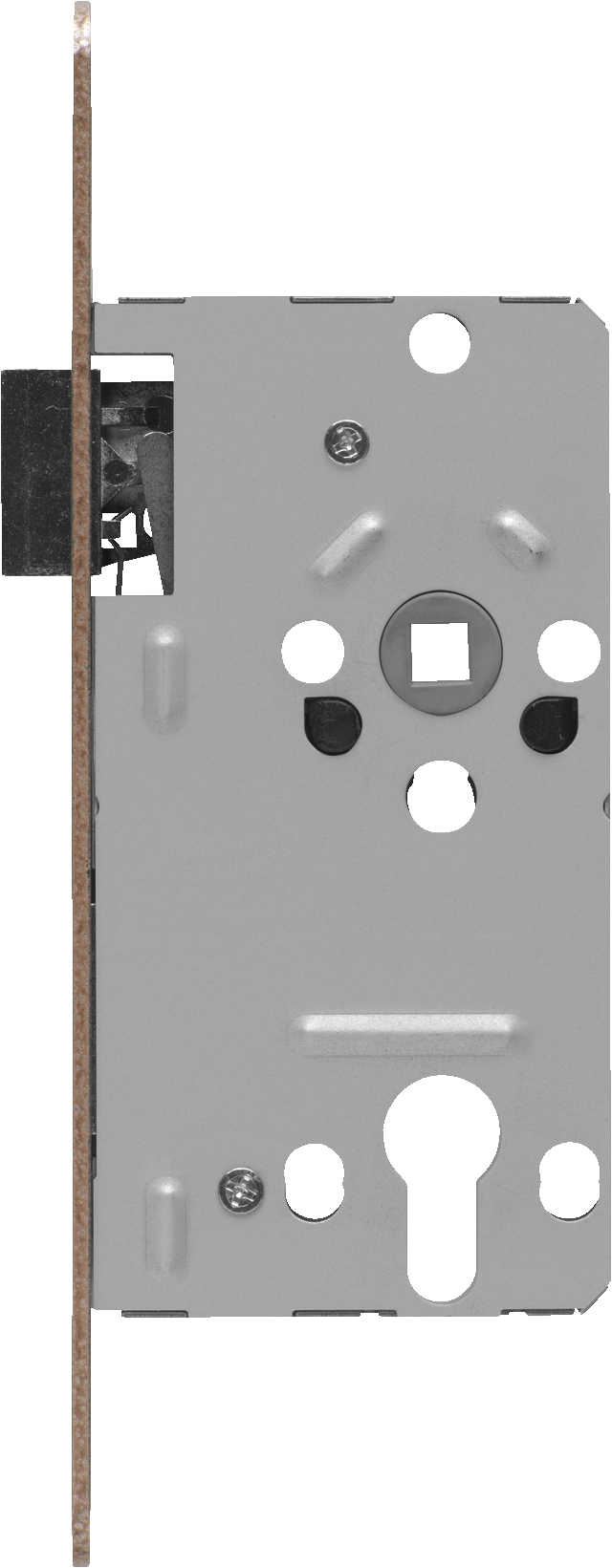

    Mortice lock TKZ20 R HG

    TKZ20

    You can reliably lock your flat entrance doors with corridor fittings using the mortice lock. In use, it impresses with its special wear resistance and corrosion protection.

    • Security Level 6/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
    All variants for TKZ20
    Description
    Once fitted, the mortice lock ensures convenient opening and closing of the door.
    The mortice lock is a secure solution for flat entrance doors with corridor fittings and a distance measurement of 72 millimetres. It disappears completely inside the door and impresses with its high wear resistance. Bolt and latch are made of metal, the steel wing nut sits in high-quality plastic bearing shells. The use of electrolytic galvanisation means that rust cannot harm the lock. It is available in different versions for DIN right or DIN left doors.
    • Made in Germany

    Technologies

    • Mortice lock conforming to DIN 18251 class 2
    • Suitable for door cylinders according to DIN EN1303
    • Metal latch and bolt
    • Steel wing nut, in high-quality plastic bearing shells
    • High capacity of resistance by use of high quality materials
    • Extra corrosion protection by electrolytic galvanizing
    • Integrated chip protection
    • Integrated distance bolts to stabilize the lock body

    Operation and use

    • For internal doors/apartment doors
    • When closing the door only the latch is being operated
    • By locking the door cylinder the bolt is activated
    • Forend 20 x 235 mm (round)
    • Available for DIN left and right doors

    Variants

    • Finishes: hammer blow gold, polished brass, silver lacquered, stainless steel, white
    • Different versions for DIN right or DIN left opening doors

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    colour: Hammer blow gold
    Distance measure: 72 mm
    Forend shape: round
    Door type: Apartment door
    Weight: 474 g
    Design: Technical drawing

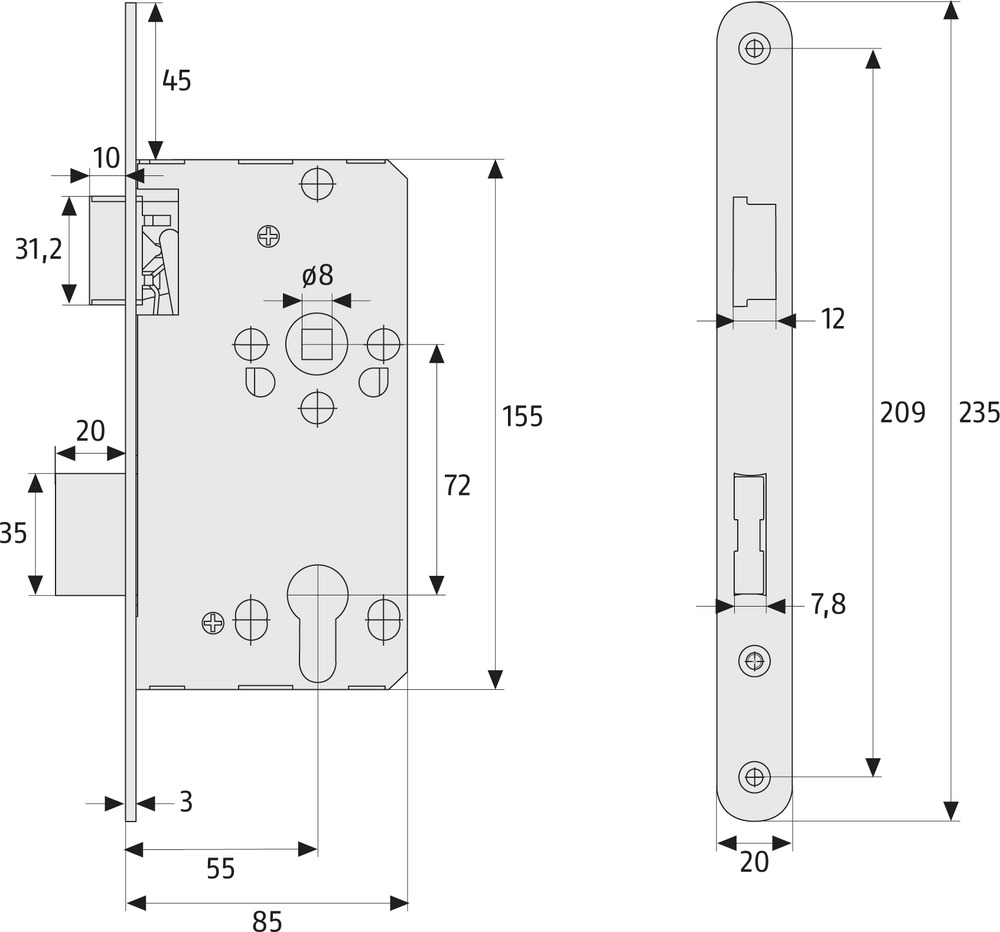

    Technical drawing
    Backset: 55 mm
    Width forend: 20 mm
    Lock control: Door cylinder
    Opening direction: right
    Security Level Home Security: 6
