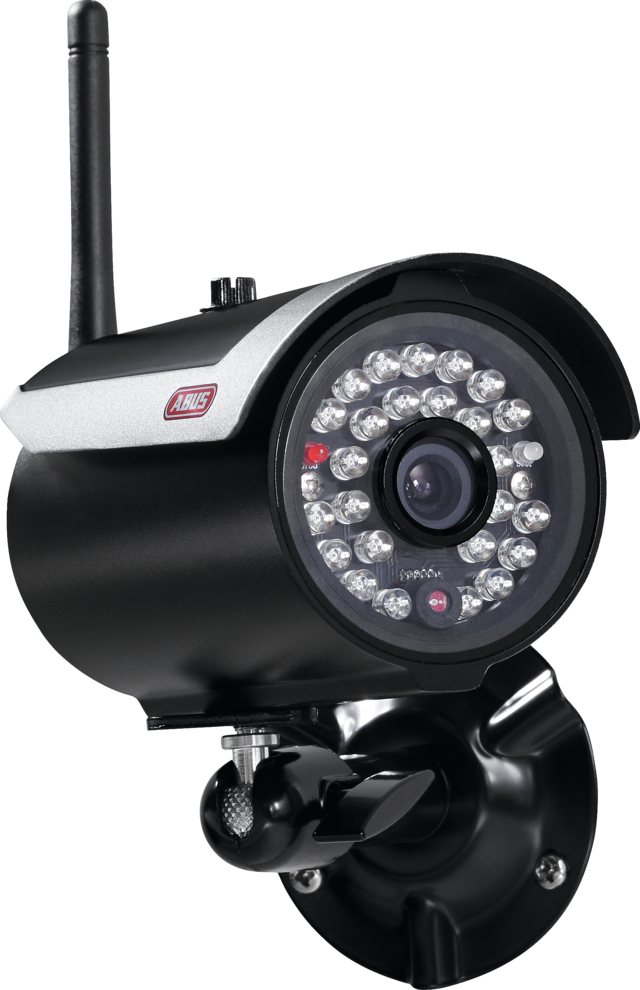

IR wireless outdoor camera, 2.4 GHz front view right
IR wireless outdoor camera, 2.4 GHz front view
IR wireless outdoor camera, 2.4 GHz front view left

Wireless Outdoor IR Camera (2.4GHz) for 7'' Set

Description



The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

Product advantages

  • Compact IP66 outdoor camera with infrared night vision function
  • Integrated 2.4 GHz digital transmitter for encrypted wireless transmission of video data
  • IR digital wireless outdoor camera for integration in the TVAC16000 wireless monitor
  • This camera can only be used as an extension for the TVAC16000 wireless home video set
  • Up to four wireless cameras can be used with each monitor

Downloads

General downloads:

Declarations of conformity:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Certifications: CE
DC voltage supply: 5 V
Dimensions: 74 x 68 x 150 mm
Focal length: 3,6 mm
Frequency: 2,4 GHz
Height: 68 mm
IP protection class: 66
IR swivel filter: Yes
Image sensor: 1/4" CMOS
Length: 150 mm
Lens: 3,6
Max. operating temperature: 50 °C
Min. operating temperature: -10 °C
Modulation: FHSS
Net weight: 0,39 kg
Number of IR LEDs: 25
Power consumption: 500 mA
Range of night vision function: 5-8 m
Resolution: 640 x 480
Sensitivity: -80
Transmission power: 15
Width: 74 mm
Wireless range: 150 m
