Keypad Terxon SX - 2023

The LCD control panel is an extension module for the Terxon SX.The LCD control panel is an extension module for the Terxon SX.

Description

AZBE10000

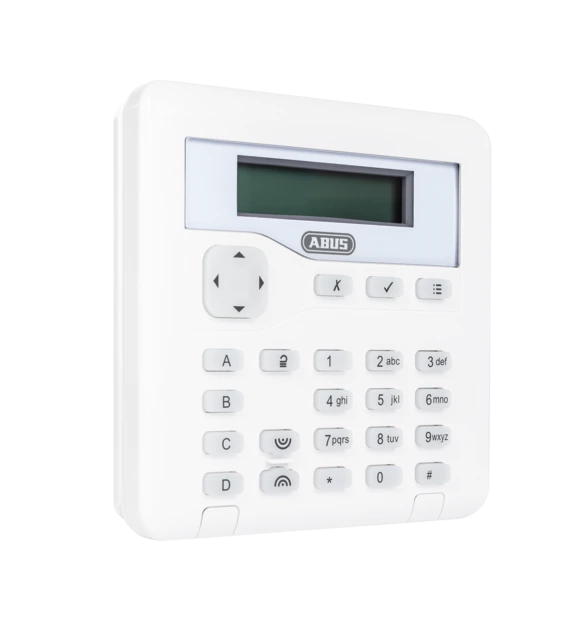

The LCD control panel is an extension module for the Terxon SX. Mounted near the entrance, it allows you to operate your alarm control panel quickly. The LCD control panel is connected to the Terxon SX via 4-wire bus wiring. Up to 4 control panels can be integrated into the alarm system. Installed in different parts of your building, these extension modules provide additional convenience. The system can be conveniently activated or deactivated from each control panel using a PIN code. The status of the alarm panel is also shown on the control panel's plain text display. System settings, programming and the 350-fold event memory of the Terxon SX can be viewed - and of course changed - at your leisure. The LCD control panel is an elegant white colour.

Product advantages

For operating and programming the Terxon SX alarm control panel
For convenient arming/disarming of the alarm panel using a PIN code when leaving/entering the building
Operating the alarm panel with PIN code and four-way navigation button
Coloured LEDs to display the current system status

Downloads

General downloads:

Declarations of conformity:

Declaration of Conformity

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

Certifications:	without
Colour:	weiß
Connections:	RS485 BUS, Screw terminal für additional tamper contact
DC voltage supply:	12 V
Dimensions:	(WxHxD) 128x128x29 mm
Environmental class:	II
Housing:	ABS
Installation location:	surface mount
Integrated siren:	Yes
Length:	29 mm

Max. humidity:	93 %
Max. operating temperature:	55 °C
Min. operating temperature:	-10 °C
Net weight:	0,2 kg
PSTI conformity required:	No
Power consumption:	58 mA
Sabotage monitoring:	Yes
Switching outputs:	No
Width:	128 mm
